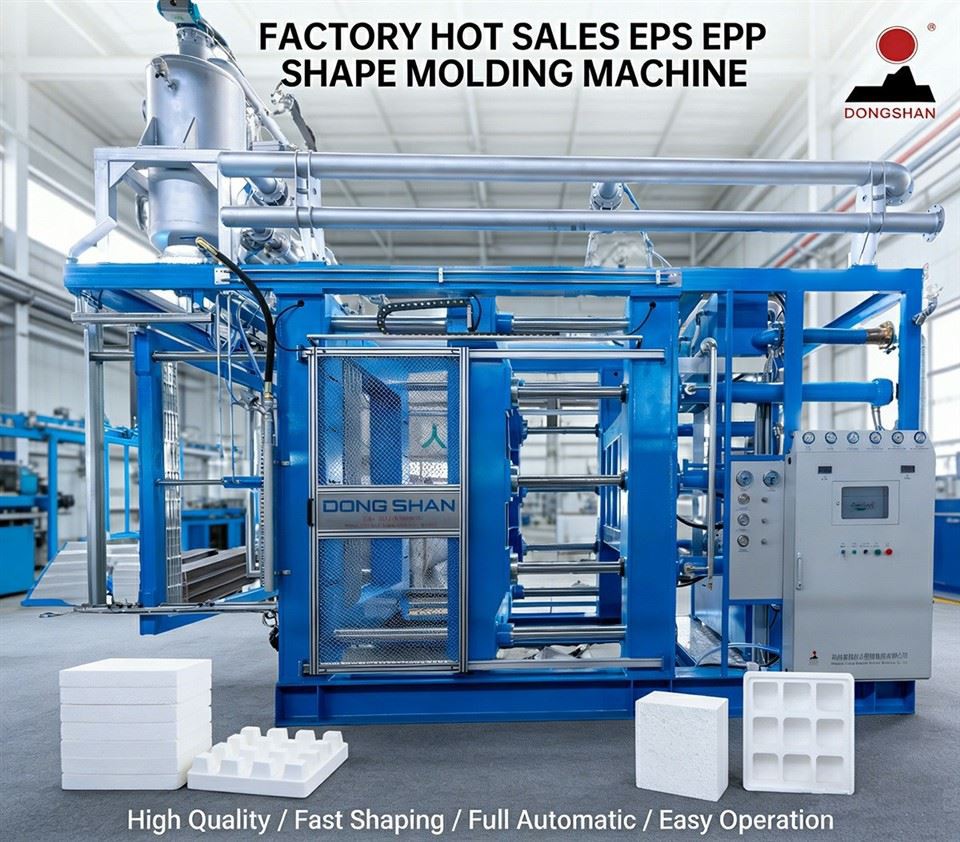

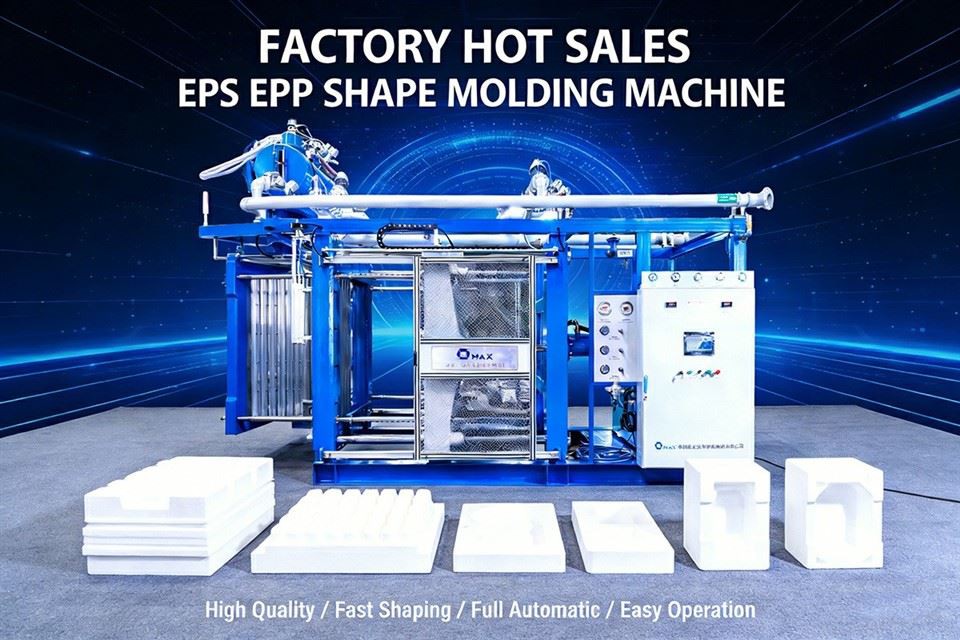

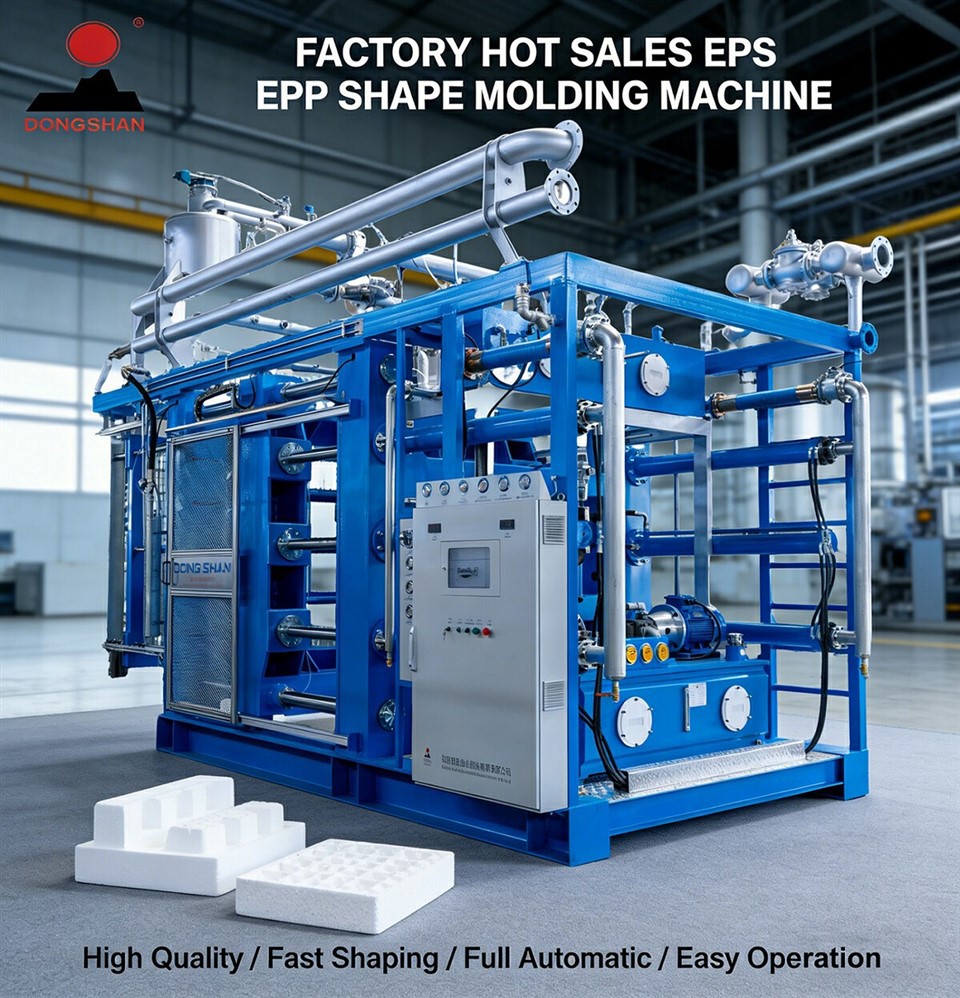

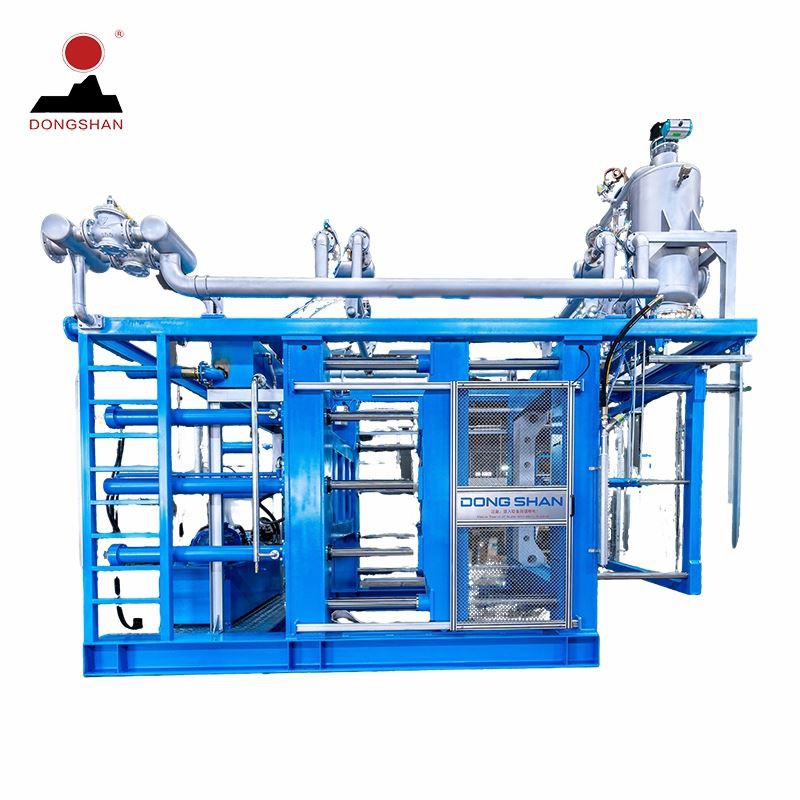

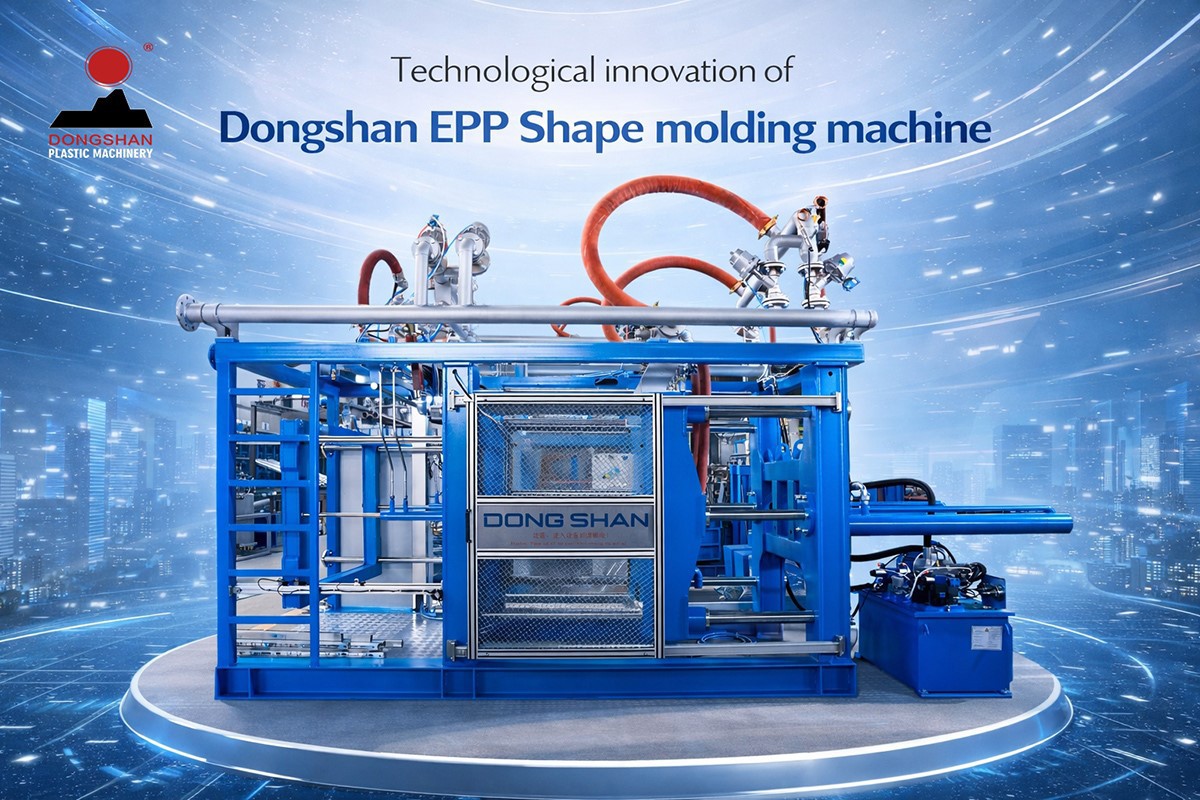

EPP Processing Machine

The Automatic Foam Molding Equipment / EPP Processing Machine is a heavy-duty industrial solution specifically engineered for the high-pressure requirements of Expanded Polypropylene (EPP). this equipment is built to handle the higher temperatures and pressures required for EPP, delivers the structural integrity and energy-absorbing precision necessary for safety-critical vehicle components.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of epp processing machine in China, also supports customized service with low price. Welcome to wholesale high quality epp processing machine for sale here from our factory. Contact us for pricelist.

Automatic Foam Molding Equipment EPP Processing Machine for Automotive Parts production

Automatic Foam Molding Equipment EPP Processing Machine adopts a high-strength anti-corrosion structure, which is welded by thick high-strength steel plates and undergoes post-welding stress relief treatment to ensure structural stability, durability and consistent performance. The surface is coated with epoxy zinc-rich primer and high-temperature topcoat, effectively enhancing corrosion resistance and surface aesthetics. Key components are processed by CNC cutting and post-machining galvanization, ensuring machining accuracy and improving surface quality. The guiding system includes 45-grade chrome-plated guide columns and one-step CNC-machined moving mold sleeves. The control system is equipped with Korean Autonics encoder, imported hydraulic and steam components, ensuring precise and stable operation. Remote monitoring via 15.6-inch HD screen and dual inductive switches ensure operational safety.

Features

High- strength frame with precision CNC machining.
Stable hydraulic and steam control system.
Accurate pressure and temperature regulation.

Designed for automotive- grade EPP parts.
Supports automated production integration.

Advantages Description

High-Strength Structure & Anti-Corrosion:

Welded from high- strength thick steel plates with post- welding stress relief for structural stability, durability, and consistent performance. Epoxy zinc- rich primer plus high- temperature topcoat enhances corrosion resistance and aesthetics.

Stable Guiding & Execution System:

45- grade chrome- plated guide columns and one- step CNC- machined moving mold sleeves guarantee high installation precision. Oil- injection devices and replaceable copper sleeves optimize performance and simplify maintenance. New movable ejector brackets with galvanized parts boost efficiency and rust resistance

Precise Control & Efficient Power:

Korean Autonics encoder with self-adjusting bracket enables accurate, safe production control. Hydraulic station with painted tank, imported components, and differential valve ensures speed/stability; 100- size display monitors pressure clearly. Steam system integrates German Gemü valves, American MAC high-frequency valves, and German Wika sensors for screen adjustable cavity pressure control, ensuring consistent quality. British Norgren solenoids and Japanese SMC 5μm filters in valve control ensure sensitivity and long- term stability.

Precision Machining & Surface Enhancement:

CNC- cut steel with key components galvanized post- machining ensures accuracy, improves surface quality, extends service life, and reduces maintenance.

Intelligent Monitoring & Safety:

15.6- inch HD screen with remote transmission, paired with sensors, allows remote parameter adjustment and data collection. Stainless- steel- alloy- aluminum safety doors operate smoothly, quietly, and rust- free; dual Korean Autonics inductive switches ensure operator safety.

Technical Specifications

Item		Unit	EPP813	EPP1214	EPP1318
Mokd Frame Dimerslons		mm	14300930	1530×1330	1930×1430
Rear Window SLze		mm	1350×850	1450×1250	1850×1350
Efecfve Moldng Area		mm	1200×700	1300×1100	1700×1200
Masmum Prodc Helght		mm	400	400	400
Staam System	Slaam Ppelne	DN	100	125	125
	Mold hniarface	DN	4006	40MC8	40DC8
	WorkingPressure	Kg(cm	5-8	5-8	5-8
AIr System	Ppelne erface	DN	6	80	80
AIr System	Working Prssure	Kglcm	4-5	4-5	4-5
Coolng Watar Systam	Ppelina herface	DN	80	100	100
	WorkingPressure	Kg(cm	3-4	3-4	3-4
	Mokd hniarface	DN	2506	25X8	25X8
Sewage Systam	Vacuum Interface	DN	100	125	125
	FibodlMovableDrainage	DN	80	100	100
	Dran Plpe Inteface	DN	125	150	150
	Mokd hiarface	DN	406	40DCB	400C8
Hycraulic System	QI Pumo Motor	Kw	7.5	11	11
	CI Pump Capacty	L/min	23+53	25+75	25+75
	Maxcmum Clamprg Force	T	50	90	100
	Mokd OperingiClosing Cjlinder	mm	125×13602	100×13602	100×13602
	Claping Cyjinder	mm	V	125X136014	125X1360/4
	Damolcdng Cyinder	mm	50X30X450	7CX40X450	7CX40X450
Barel Syslam	Bamel Volume	m²	0.15	03	03
	Mataria Supply Fan	Kw	22	3	3
	Discharge Ports	pcs	32	50	50
Srgle Machine Vacum Pump		Kw	55	7.5	7.5
Single Machine Power		Kw	15.2	21.5	21.5
Ovral Dimensions		L×W×H	5200×2900×3100	5500×3000×3700	5800×3400×3800
Single Machine Welgt		T	10	13	15
