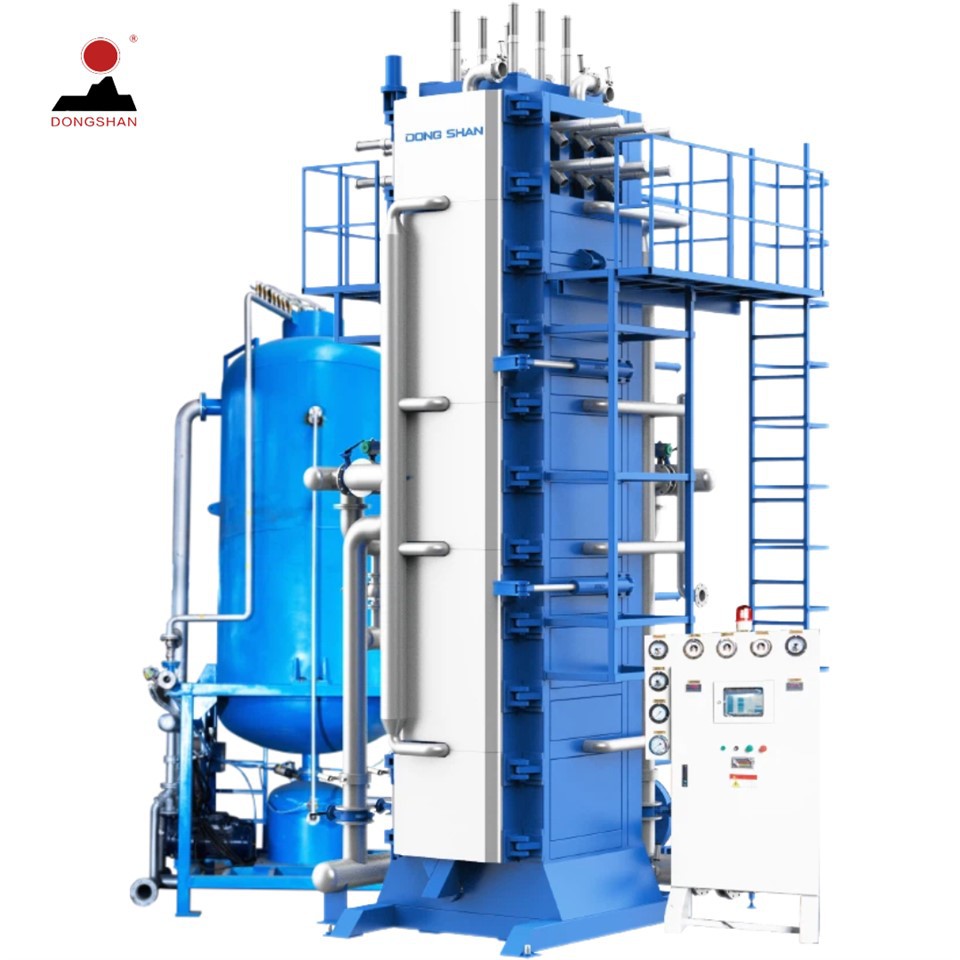

EPS Construction Panel Machine
Moukd cawity Size: 2080×(1240-800)×630 mm
Block SLe: 2000×(1200-800)×600 mm
Capacty@15kgm²: 4 minkcyce
Connoched LoadPower: 20135 KW
Ovaral Dimernslon(L×W×H): 5700×4000×3300 mm
Walght: 9600 KG
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps construction panel machine in China, also supports customized service with low price. Welcome to wholesale high quality eps construction panel machine for sale here from our factory. Contact us for pricelist.
High-Tech EPS Construction Panel Molding Machine with Digital Pressure Control for Modern Expandable Polystyrene industry
The High-Tech EPS Construction Panel Molding Machine equips with Digital Pressure Control which is designed to meet the advanced manufacturing demands of the modern expandable polystyrene (EPS) industry. Thanks to the innovative molding technology and intelligent control systems, the machine ensures high precision, stable performance, and superior product quality, making it ideal for producing EPS construction panels used in insulation, wall systems, and energy-efficient buildings.
Key Technical Features

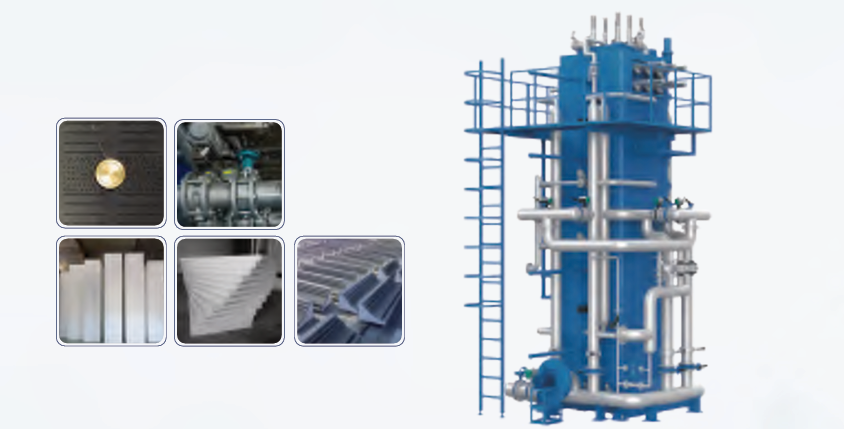

Advanced Vertical Architecture
The vertical mold design significantly reduces the machine's footprint, allowing for higher production density per square meter of factory floor. It also facilitates more natural drainage and heat distribution compared to traditional horizontal models.
01
Precision Digital Pressure Control
Equipped with high-sensitivity digital sensors and a centralized PLC system, the machine provides real-time monitoring and micro-adjustments of steam pressure. This ensures consistent block density and eliminates the risk of internal voids.
02
Integrated High-Vacuum System
A powerful vacuum unit rapidly extracts moisture and air from the mold cavity. This results in "dry" blocks that require significantly less curing time before they are ready for precision cutting.
03
Heavy-Duty Heat-Treated Frame
The structural steel frame undergoes specialized heat treatment to relieve internal stress. This prevents frame deformation over years of high-pressure operation, ensuring the dimensional accuracy of every panel produced.
04
Smart Automation & Touch Interface
The user-friendly interface allows operators to manage the entire cycle-from material filling and steaming to cooling and ejection-with a single touch. It includes a library for pre-set "recipes" tailored to different material densities.
05
High-Strength Frames: Inner molds welded with robust rectangular tubes and steel plates; electric furnace stress-relieving annealing ensures frame strength and safety.
Heat-Treated Molds: All block mold frames undergo heat treatment to release welding pressure, prevent deformation, and ensure long-term stable performance.
Enhanced Durability: Post-heat-treatment sandblasting boosts rust resistance, improving coating adhesion for superior corrosion protection and extended machine life.
Safety Testing: Equipped with 3 German gauges and safety valves; subjected to multiple water pressure and steam tests for stability and safety.
Steam Efficiency: 3 ball valves save 20% steam vs. a single large valve.
Stable Components: ISO-standard butterfly valves enhance stability and longevity.
Energy-Saving Heating: 3D heating penetration shortens heating time and reduces energy use.
Heavy-Duty Compatibility: Stainless steel platen surface suits high-density block produc tion and extends machine life.
Control system:
User-Friendly Operation: Adopts Mitsub ishi PLC and Schneider touch screen for easy operation.
Precise Filling Control: Equipped with material level sensors to regulate filling.
Process
Automatic Cycle: Block cooling controlled by foam pressure sensors, automating filling, heating, cooling, and mold opening.
Space-Efficient Design: Vertical frame type saves space with excellent drainage, reducing block moisture.
Remote Oversight: Remote control system enables real-time process monitoring.
Technical Specifications
| Item | Unit | SPB2000 | SPB3000 | SPB4000 | SPB6000 | |
| Moukd cavty Sze | mm | 2040×1240×1030 | 3060×1240×1030 | 4080×1240×1030 | 6080×1240×1030 | |
| Block slze(12gL) | mm | 2000×1200×1000 | 3000×1200×1000 | 4000×1200×1000 | 600×1200×1000 | |
| Steam | hlet | hch | 4"DN1000 | 5"DN125) | 6"(DN150) | 8"(DN2000 |
| Consumpfion | kgicycle | 18-35 | 20-40 | 35-60 | 60-90 | |
| Pressure | Mpa | 0.75-0.85 | 0.75-0.85 | 0.75-0.85 | 0.75-0.85 | |
| Compresed AIr | hlet | hch | 3"(DN80) | 3"(DN80) | 4*(DN100) | 4"(DN1000 |
| Consumplion | mcycdle | 1.5-2.5 | 2-3 | 2.5-3.5 | 3.5-4.5 | |
| Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | |
| Vacum | Inist | inch | 2"(DNS00 | 2.5"(DNG5) | 3"DN80) | 3"DNB0) |
| Cooling Watar | Consumpfion | kgkcyce | 0.6-0.8 | 0.8-1.0 | 1.0-1.2 | 1.2-1.4 |
| Prssure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
| Dranage | Draln Oufet | hch | 5"DN125) | 6"DN1500 | 8"(DN200) | 8"(DN200) |
| ArOuat | hch | 6"DN1500 | 8"(DN2000 | 8"(DN200) | 8"(DN200 | |
| Vacum crain Oufat | hch | 4"DN1000 | 5"(DN125) | 5"(DN125 | 5"(DN125) | |
| Prodce time/Cjcla(16gL) | minigycke | 4-5 | 4-5 | 5-6 | 6-7 | |
| Corneched LoadPower | KW | 1530 | 1530 | 20035 | 246 | |
| Overall Dimenslon(LxW×H0 | mm | 6700×4600×4100 | 6700×4600×5100 | 6700×4600×6100 | 6700×4600×8100 | |
| Waigt | KG | 12200 | 14800 | 17200 | 19500 | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
