About Dongshan EPS Cutting Machine
Product Lineup: Finding Your Perfect Cutting Configuration
Every production floor faces different space constraints and volume requirements. Dongshan manufactures three core cutting system types to align perfectly with your output targets:
1. Fully Automatic EPS Continuous Cutting Line
The ultimate solution for high-volume factories operating 24/7. This system handles blocks continuously directly from your block molding machine without manual intervention.
- Operation: Blocks move on heavy-duty motorized rollers through automated horizontal, vertical, and cross-cutting frames sequentially.
- Best For: High-capacity insulation board manufacturers who need to process massive volumes with zero idle floor time.

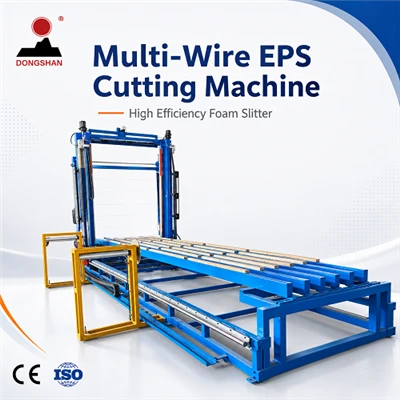

2. Standard 3D EPS Cutting Machine
Our most versatile, all-in-one workstation designed for processing standalone blocks on a mechanical tipping or stationary frame.
- Operation: Simultaneously trims all three dimensions (Length, Width, and Thickness) in a single cycle using multi-wire hot frames.
- Best For: Medium-sized plants producing standard construction blocks, insulated concrete forms (ICFs), and basic packaging panels.

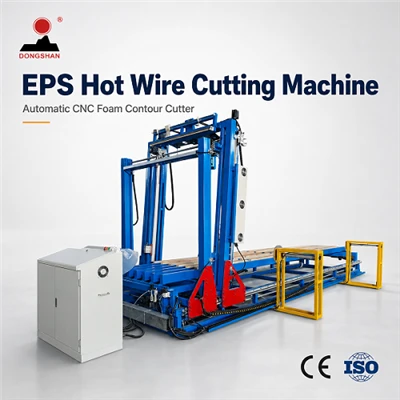

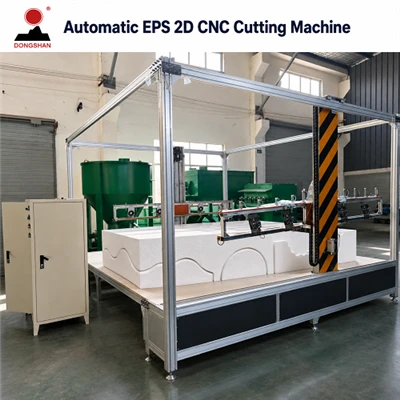

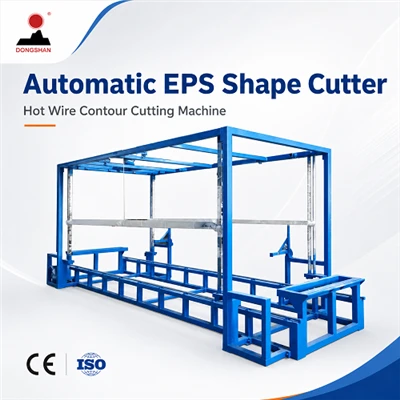

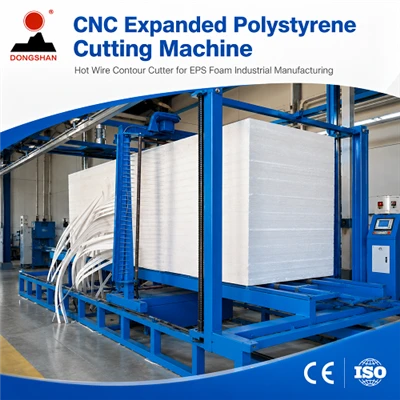

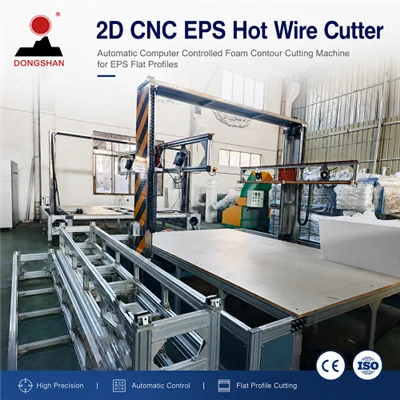

3. Advanced CNC EPS Contour / Shape Cutting Machine
Engineered for highly intricate, multi-axis profile cutting utilizing high-tensile resistance wires governed by computer paths.
- Operation: Uses specialized CAD/CAM software integrations to drive independent wire axes along complex geometric lines.
- Best For: Architectural molding, specialized 3D decorative shapes, prototype design, and customized protective packaging.
Technical Advantages of Dongshan Cutting Machinery
Technical Advantages of Dongshan Cutting Machinery.What makes a Dongshan cutting machine outperform alternative models on the market? It comes down to structural rigidity and smart electronic control:
- Heavy-Duty Structural Frames: To prevent wire vibrations that cause jagged "wave cuts," our frames are constructed using thick, stress-relieved rectangular steel tubes. They are sandblasted and coated to endure decades of constant operational shifts without warping.
- Frequency Conversion & Smart Speed Control: Equipped with advanced variable frequency drives (VFD), the conveyor movement speed adjusts smoothly between 0 to 4 meters per minute. This allows operators to perfectly balance block density with cutting heat to avoid melted surfaces.
- Automatic Wire Setting & Tensioning Systems: Changing wire configurations manually costs hours of downtime. Our automated systems allow operators to set wire gaps digitally via the touch screen. High-performance pneumatic or spring tensioning mechanisms ensure the wires remain perfectly rigid even at maximum temperatures.
- Synchronized Wire Breakage Protection: If a single hot wire snaps during a heavy cutting cycle, the entire line halts instantly. This prevents the machine from pushing un-sliced block segments down the line, safeguarding your components and preventing expensive block wastage.
- Integrated Scrap Collection: Our lines feature integrated bottom scrap collectors and overhead extraction hoods to pull away loose trimmings and hazardous fumes, keeping the factory floor clean and safe.
Upgarde your production line with cutting machine
Upgrading your EPS block production line with an advanced cutting machine is the most effective way to eliminate factory bottlenecks, reduce manual labor, and maximize material yield. If your cutting station cannot keep pace with your block molding machine, your entire facility loses money.
The 4-Step Production Line Integration Blueprint
1.Establish Floor Real Estate & Buffer Zones: Layout Planning.
Measure your block aging area. Freshly molded EPS blocks contain residual moisture and must age for 24 to 72 hours before cutting to prevent wire dragging. Ensure your new cutting machine sits directly downstream from this aging zone, linked by motorized roller conveyors to minimize forklift dependency.
2.Upgrade Your Transformer & Power Supply: Electrical Calibration.
Unlike a block molder which relies heavily on steam, an EPS cutting machine relies on high-stability electrical currents to heat up to dozens of resistance wires simultaneously. Install a dedicated, high-capacity voltage regulator to prevent fluctuations that lead to cold-cutting or wire breakage.
3.Align Production Speed and PLC Protocols: Throughput Syncing.
Connect the cutting machine's control dashboard to your central factory system. Dongshan cutting lines use variable frequency drives (VFDs) that allow you to adjust conveyor feed speeds smoothly between 0 to 4 meters per minute. This speed must be fine-tuned to precisely match the block output rate of your molding machines.
4.Integrate the Scrap Recovery System: Waste Management.
Trimming blocks creates side skins and floor scraps. Position automated scrap crushers or a vacuum collection hood directly beneath the cross-cutting and trimming frames. This automatically transports off-cuts back to your recycling silos for de-dusting and mixing with raw materials.
🎯Strategic Upgrades Based on Your Business Goals
Depending on your current production limits, your upgrade should target one of these three specific optimization paths:
Shifting from Manual to a Fully Automatic Line
- The Upgrade: Replace standalone, manually fed cutting frames with a Dongshan 3-Dimensional Continuous Cutting Line.
- The Result: Blocks move automatically through horizontal, vertical, and cross-cutting stations without human handling, cutting labor costs by up to 70%.
Handling High-Density or Graphite EPS (SEPS)
- The Upgrade: Swap standard heating wires for high-tensile alloy wires backed by Dongshan's Automatic Pneumatic Tensioning System.
- The Result: Prevents the wires from bowing or breaking when cutting heavy or dense blocks, keeping your dimensional accuracy tight within less than or equal to 1 millimeter.
Expanding into Specialized Markets
- The Upgrade: Add a multi-axis CNC Contour Shape Cutting Machine alongside your main sheet line.
- The Result: Allows your factory to quickly pivot between standard insulation sheets and high-margin architectural moldings, packaging inserts, or 3D construction panels without stopping your primary block output.
What Dongshan Do?
When you buy a machine from Dongshan, you are purchasing 30 years of industrial legacy and dedicated manufacturing expertise.
- 30-Year Engineering Pedigree: Since our founding, we have specialized exclusively in EPS and EPP automation, creating a deep pool of institutional engineering knowledge.
- World-Class Components Only: We refuse to cut corners. Every critical component inside a Dongshan machine—from Siemens PLCs and Schneider electronics to Airtac pneumatics—is selected from globally recognized suppliers to guarantee easily accessible local replacements.
- Certified Quality Standards: Our entire design and production ecosystem strictly complies with ISO9001:2015 quality management systems and holds full CE certification for European markets.
- Turnkey Global Deployment: From initial engineering consultation and AutoCAD factory floor layout mapping to on-site mechanical installation, calibration, and local operator training, we manage your investment from start to finish. Our equipment operates flawlessly in over 50 countries worldwide.
What Dongshan Can do for you?
When it comes to the EPS Cutting Machine phase of your production line, Dongshan does not just supply a piece of steel hardware—we engineer an end-to-end efficiency optimization ecosystem.Because cutting is the definitive stage where material density, processing speed, and dimension accuracy converge, any sub-optimal calibration directly impacts your factory’s bottom line. Here is exactly what Dongshan brings to the table for your processing line:
1. Drastic Downtime Reduction: The Auto-Wire Setting Advantage
On standard cutting frames, switching from a 20mm sheet run to a 50mm sheet run requires operators to manually slide, measure, and lock down dozens of hot cutting wires. This stalls production for up to an hour.
- What Dongshan Does: We introduce our Auto Wire Setting Block Cutter Machine. Using a high-precision, manipulator-driven automated wire layout system, your operator can reconfigure the entire grid via the touch screen interface in just 1 to 3 minutes.
- The Business Impact: This is up to 10 times faster than manual realignment, preserving valuable production uptime during rapid design changeovers.
2. Complete Automation Loop: Continuous Line Engineering
If your facility handles blocks via separate forklifts moving between standalone block molders and detached cutting tables, you are carrying excessive labor and logistics costs.
- What Dongshan Does: We engineer fully integrated, automated Continuous 3D Cutting Lines that handle blocks straight out of the cooling/aging racks.
- The Business Impact: Large EPS blocks are conveyed, positioned, trimmed, horizontally sliced, and cross-cut automatically on synchronized motorized roller networks driven by a single Master PLC panel. This effectively compresses your cutting team labor down to a solitary quality supervisor.
3. Scrap Mitigation & Yield Optimization: Rigidity & Precision
Jagged cuts, wavy board faces, and broken wires often happen because a cutting frame cannot withstand wire vibration or handle block resistance at high feed speeds.
- What Dongshan Does:
- We build ultra-stiff, stress-relieved rectangular steel chassis structures treated with protective sandblasted undercoats.
- We integrate an Automatic Pneumatic or Spring Tensioning System that keeps the wire dead-straight, even when encountering dense, heavy plates or graphite-infused SEPS.
- We apply Variable Frequency Drives (VFD) to control cutting feed speeds smoothly from 0 to 4 meters per minute.
- The Business Impact: We guarantee dimensional accuracy tolerances to less than or equal to 1 millimeter, driving material scrap metrics down to absolute minimums and maximizing the output volume of merchantable foam.
4. Asset Protection: Synchronized Wire-Breakage Safeguards
When a hot wire snaps mid-cycle on a standard line, the machine keeps pushing the block forward, crushing the subsequent wires, bending the alignment rods, and leaving a ruined, partially cut block stuck in the machine.
- What Dongshan Does: Every automated cutter we ship features an instantaneous, electrical loop-sensing Wire Breakage Protection System.
- The Business Impact: The millisecond a single wire breaks, the electrical circuit breaks with it, prompting the PLC to freeze the entire conveyor line instantly. Your operator replaces one wire, clears the alert, and resumes without losing an entire block or damaging the machine frame.
5. Turnkey Engineering & Lifecycle Support
Dongshan supports your capital investment through a dedicated global services structure:
- Custom Layout Handshaking: Our software engineers program our PLCs (utilizing premium components like Mitsubishi or Siemens) to communicate perfectly with your existing factory hardware, ensuring smooth data pass-through.
- Wear-Part Management & Logistics: Located close to major international shipping ports (Shanghai and Ningbo), we expedite genuine alloy wires, transformers, and electrical switches to keep your production moving.
- 24/7 Global PLC Diagnostics: Our technical support teams utilize remote Ethernet connections to troubleshoot calibration errors and optimize your cutting lines without waiting for an on-site technician to travel.
