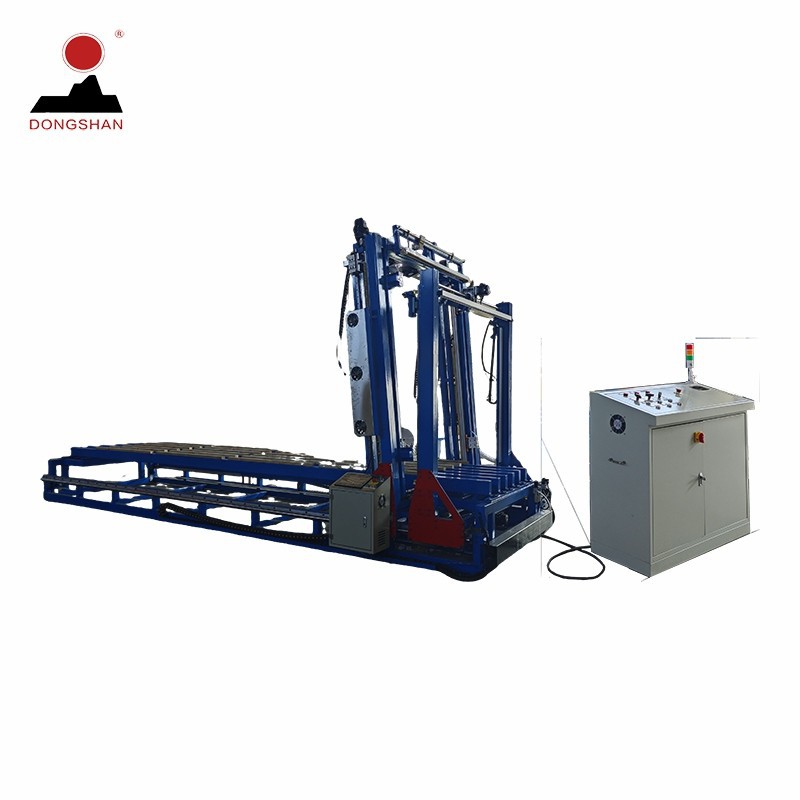

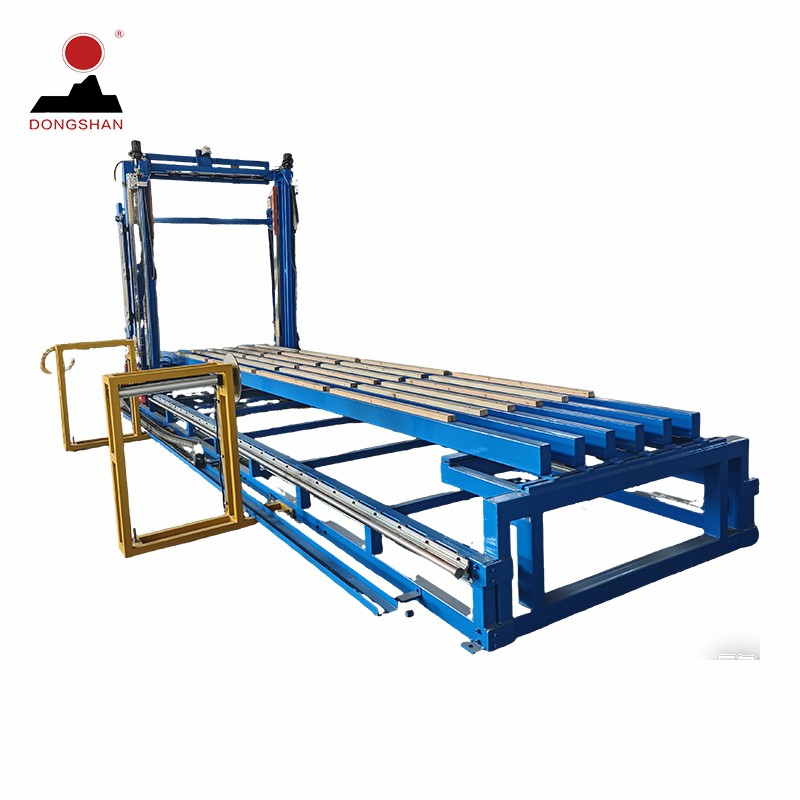

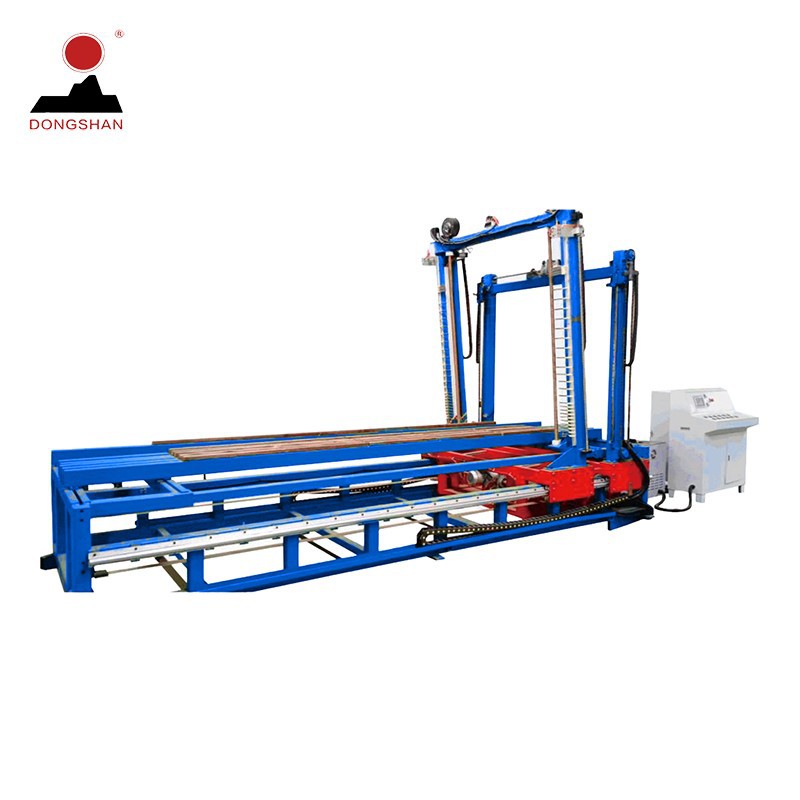

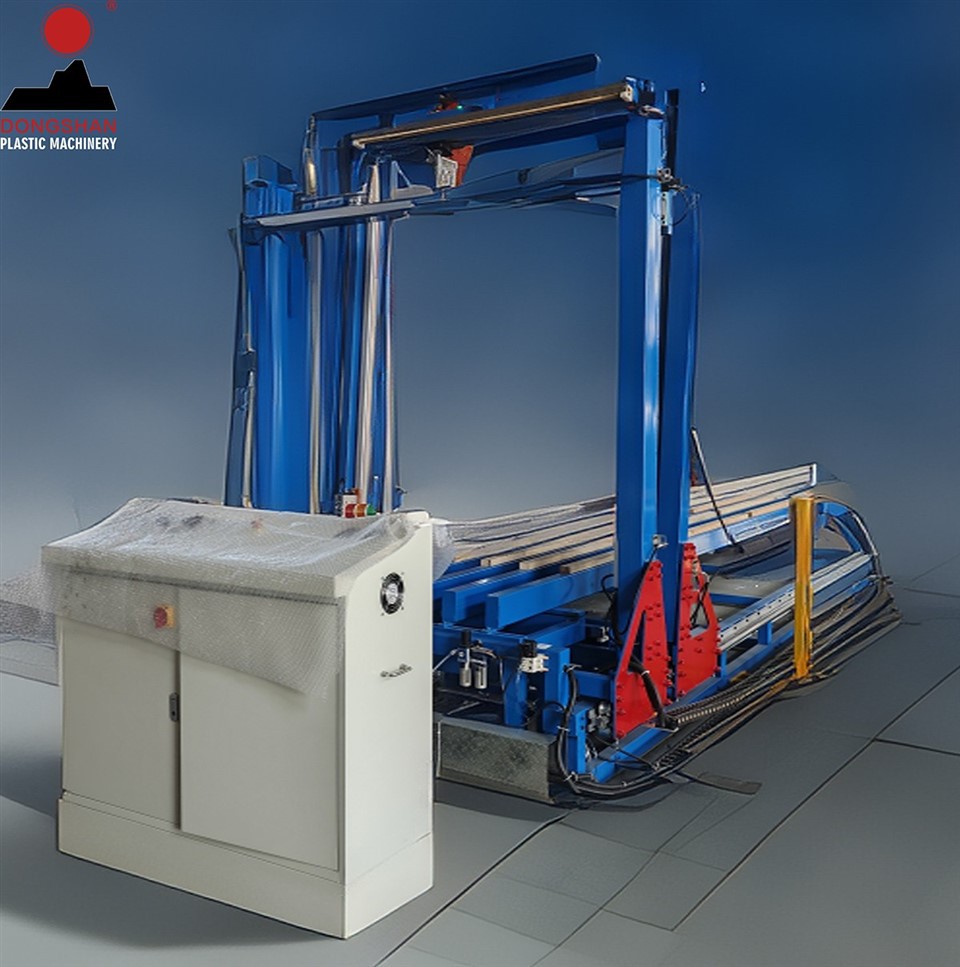

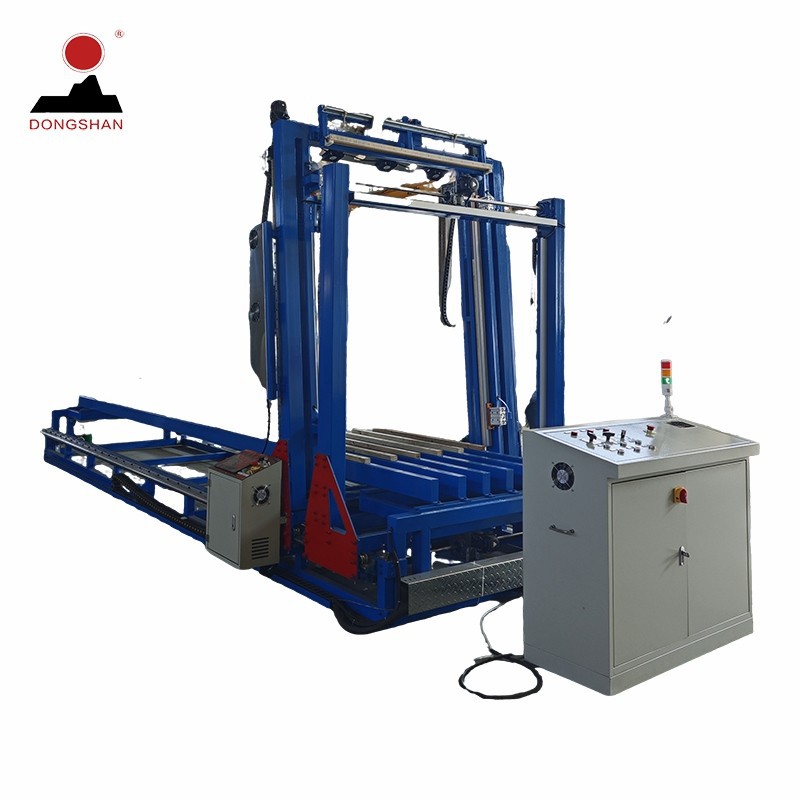

EPS Cornice Cutting Machine

Enhance your building material production with our Energy-Saving EPS Hot Wire Cutter. Optimized for architectural design and cornice production, this PLC-driven machine offers automated precision, smooth thermal cutting, and low energy costs, making it the perfect tool for creating high-quality decorative foam moldings.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps cornice cutting machine in China, also supports customized service with low price. Welcome to wholesale high quality eps cornice cutting machine for sale here from our factory. Contact us for pricelist.

Energy Saving EPS Hot Wire Cutter EPS Cornice Cutting Machine with PLC Control for Architectural Design

System Component Breakdown

Station	Function	Advantage
Horizontal Cutter	Slices the block into the desired thickness.	Multi-wire frames for up to 30+ slices at once.
Vertical/Side Cutter	Trims the edges and sets the width.	Ensures perfectly square edges for interlocking.
Cross-Cutter	Cuts the long strips into specific lengths.	High-speed oscillation for "burr-free" finishes.

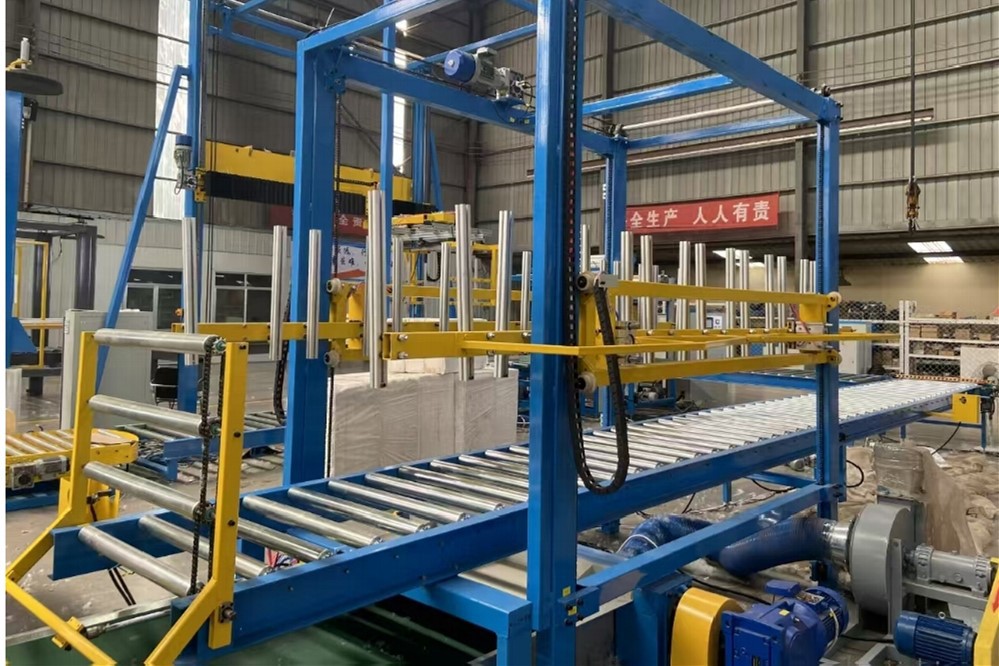

Auto-Stacker	Automatically stacks finished panels.	Reduces labor and prevents panel damage.

Operational Advantages for SMEs

Feature	Business Benefit
Plug-and-Play Setup	Minimal installation time; start production within hours of delivery.
Low Power Consumption	Optimized electrical logic reduces utility costs for smaller workshops.
High Durability Wires	Uses specialized alloy wires that resist breaking, lowering consumable costs.
Flexible Batching	Easily switch between different sheet thicknesses for custom orders.

Overview

The automatic wire - setting foam plate cutting machine adds horizontal auto - wire - setting, set - length cross - cutting, and auto - operation on the regular sheet cutter. It solves manual wire - hanging hassle, inaccuracy, and large cross - cut length tolerance, boosting cutting accuracy and output. Ideal for small - medium foam sheet orders, it's the top choice for EPS sheet factories.

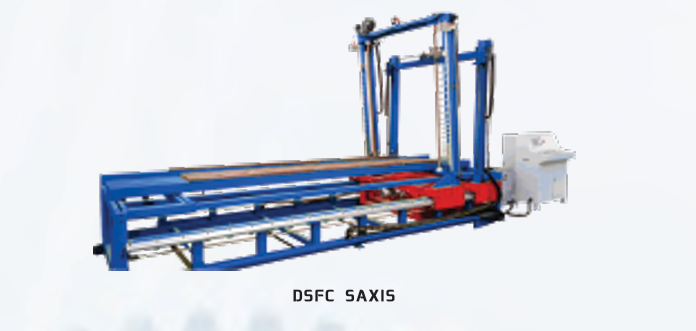

product-696-331

Mechanical Characteristics

1. Horizontal, vertical and cross - cut voltages are controlled by three separate transformer - regulator pairs.

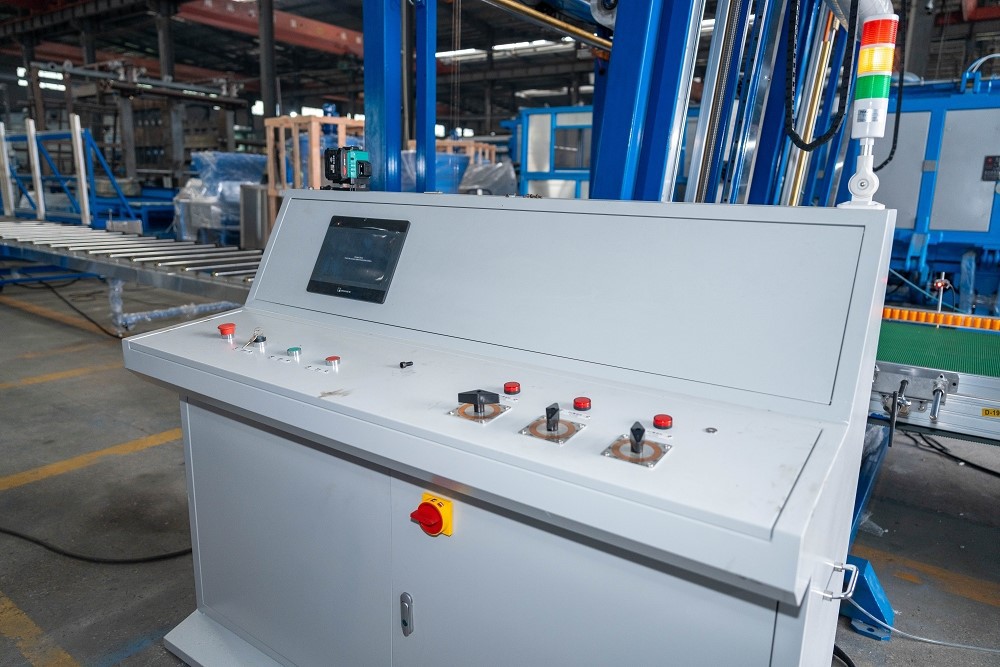

2. PLC and HMI control the machine THorizontal wires can be set to automat ic. Set panel thickness, and three different thicknesses are set automatically. Set three cross - cut lengths for a single block, and the machine cuts accordingly. In automatic mode, press start, the machine cuts horizontally and vertically first, then cross - cuts automatically. Operation ends when the block is removed.

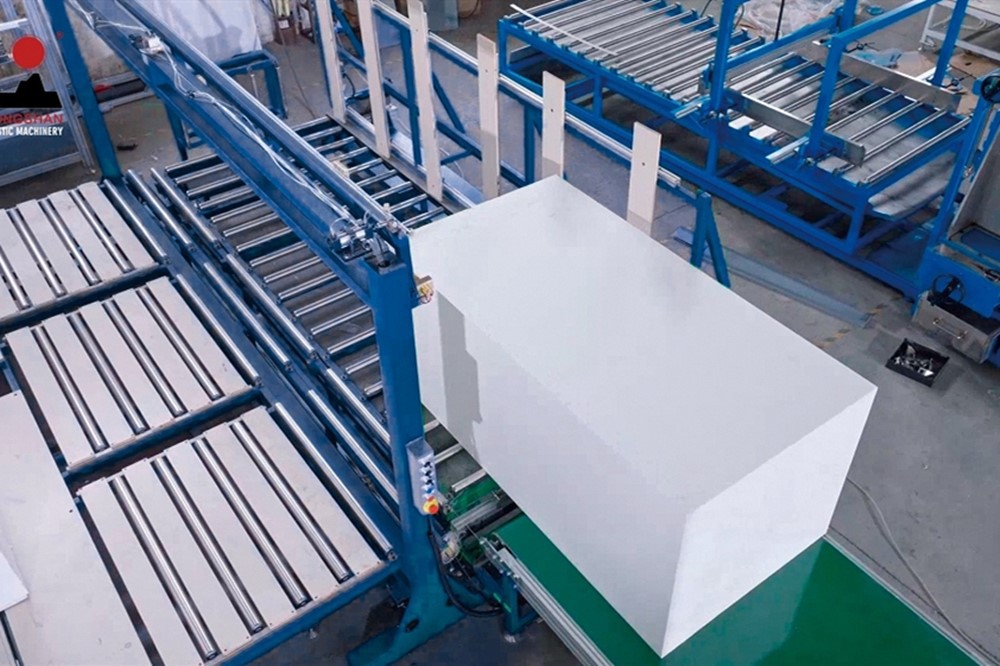

3. An alignment device for block place ment ensures accurate block - cutting.

4. Electrical limit and mechanical protec tion safeguard the machine's safe operation.

Advantages

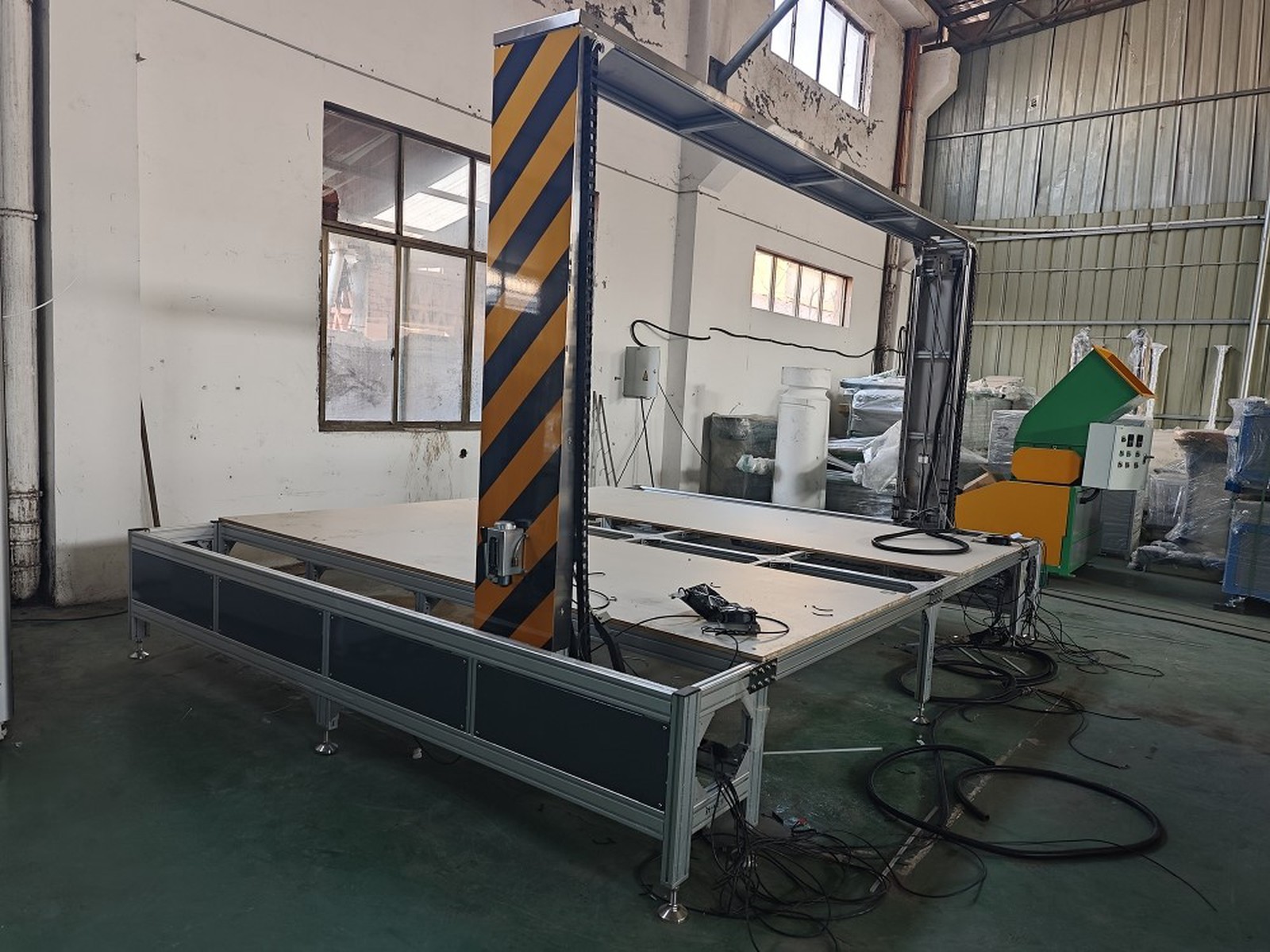

FC200/250 series CNC foam cutter suit for 2D profile cutting with multi cutting wire, which have big capacity and high accuracy, this machine is specially for exterior cornice moulding, facade cladding and deco elements.

The automatic wire - setting foam plate cutting machine adds horizontal auto - wire - setting, set -length cross - cutting, and auto - operation on the regular sheet cutter. It solves manual wire – hanging hassle, inaccuracy, and large cross - cut length tolerance, boosting cutting accuracy and output. Ideal for small - medium foam sheet orders, it's the top choice for EPS sheet factories.

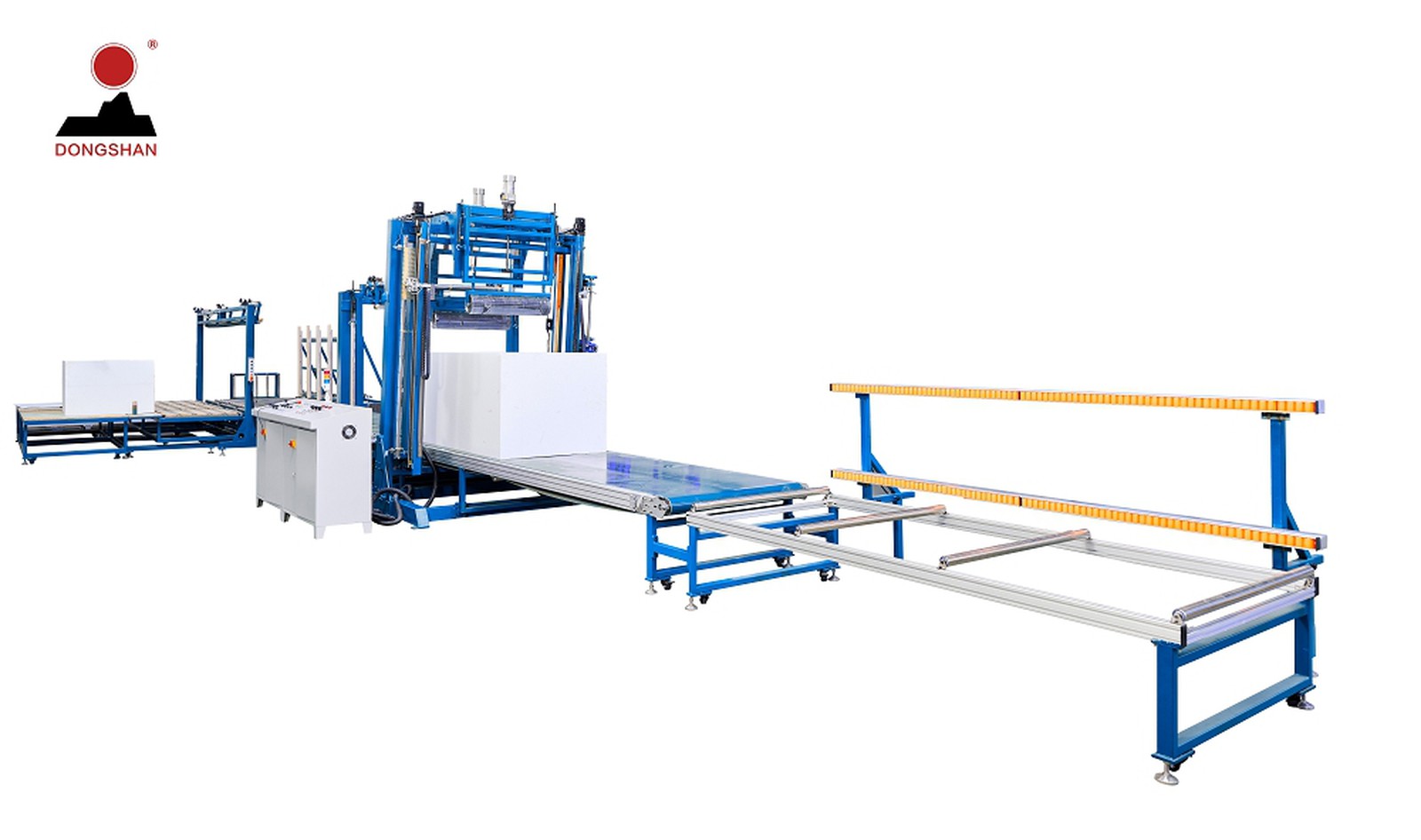

This is a continuous, fully - automatic PLC - controlled foam plate cutting machine. It moves the plate while fixing the cutting frame, enabling three - direction horizontal, rigid, cut - off, and continuous cutting of foam plates. With numerous cutting wires and high cutting speed, the manipulator - adjusted wires automatically in 1 - 3 minutes, 10 times faster than manual adjustment. It features high precision and automation, making it essential for medium - to - large foam plate plants.

Technical Specifications

Item	Unit	DSFC SAXIS
Max Cutting Size	mm	2000~6000X1300X1300
Min.Cutting Thickness	mm	15
Cutting Speed	m/min	0.4~1
Max.Wires In Horizontal	piecs	32
Max.Wires In Cross Vertical	piecs	10
Wires In Cross Cutting	piecs	1
Hot Wire Specification	mm	0.4
Connected Load	kw	21
PowerSupply	VHZ	380/50
Weight	kg	1800
Contour Size	M.M	4500×8500×1864×2850
Step Motor For Wire-setting(2unit)	N.M	2-8.5 (Close loop)
Step Motor For Cross CutingMovement	N.M	12(Close loop)
StepMotor Cross Cutting	N.M	35 closeloop(up&down)
Horizontal Shelf Motor	kw	0.75 By frequency converter
