EPS Block Cutting Machine
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps block cutting machine in China, also supports customized service with low price. Welcome to wholesale high quality eps block cutting machine for sale here from our factory. Contact us for pricelist.

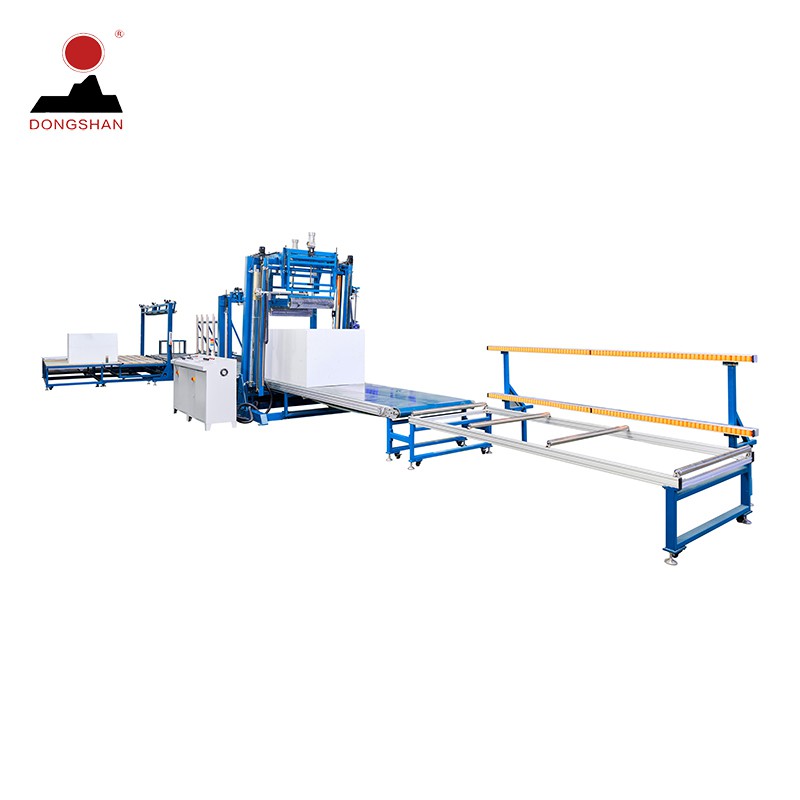

High Efficiency EPS Block Cutting Machine Continuous EPS Cutting Line for Large Scale Production
Core Technical Advantages
Uninterrupted Continuous Workflow

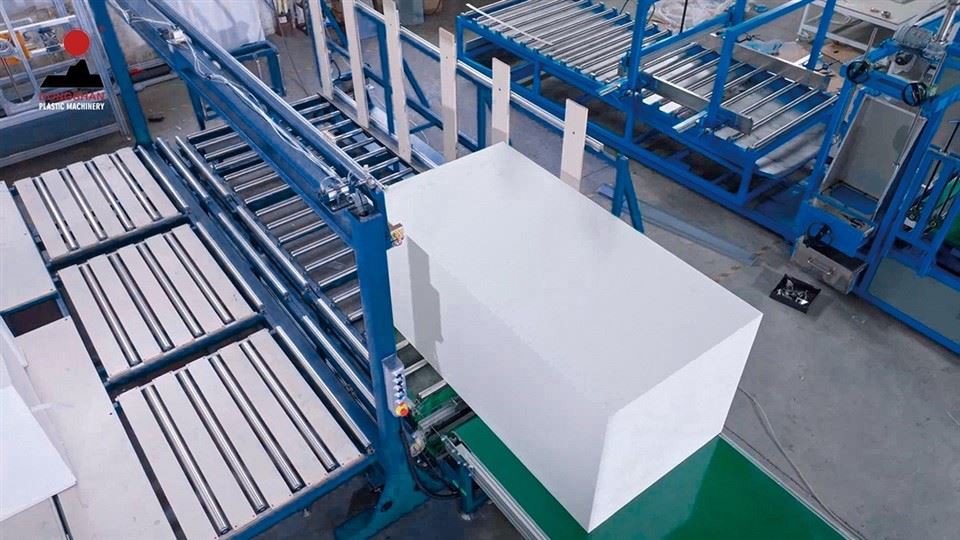

Designed for high-volume output, the line features a synchronized conveyor system that moves blocks through Horizontal, Vertical, and Cross-cutting stations without manual intervention. This "non-stop" processing significantly increases daily throughput compared to stationary machines.
01
Superior Cutting Precision
Utilizes advanced Frequency Control for wire vibration and travel speed. This allows for clean, smooth cuts even at high speeds, ensuring that panels meet strict dimensional tolerances for construction and EIFS applications.
02
Reduced Material Waste & Kerf
The system employs high-strength, ultra-thin alloy wires with an intelligent automatic wire-setting system. This minimizes the cutting kerf (material lost as dust) and ensures that every block yields the maximum number of sellable panels.
03
Automated Scrapping & Recycling
Equipped with an integrated Side-Scrap Crusher and vacuum collection system. Edge trimmings are immediately crushed and sucked back into the recycling silos, keeping the factory floor clean and reducing raw material costs.
04
Intelligent PLC Control Interface
The entire line is managed via a centralized PLC (e.g., Mitsubishi/Schneider) with a user-friendly touchscreen. Operators can pre-set cutting dimensions for different batches, allowing for rapid product changeovers with a single touch.
05
Equipment Overview

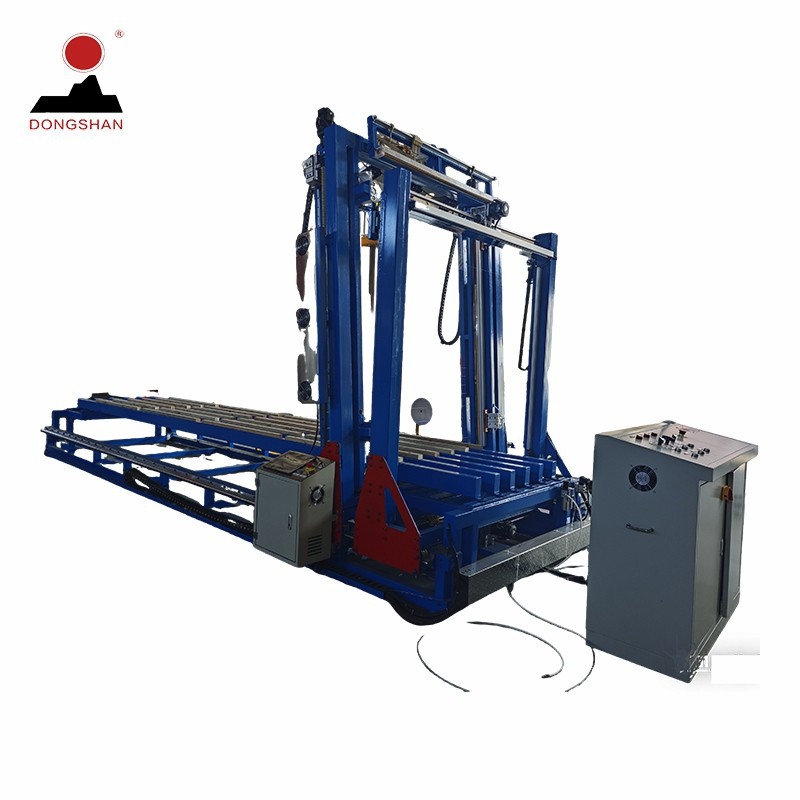

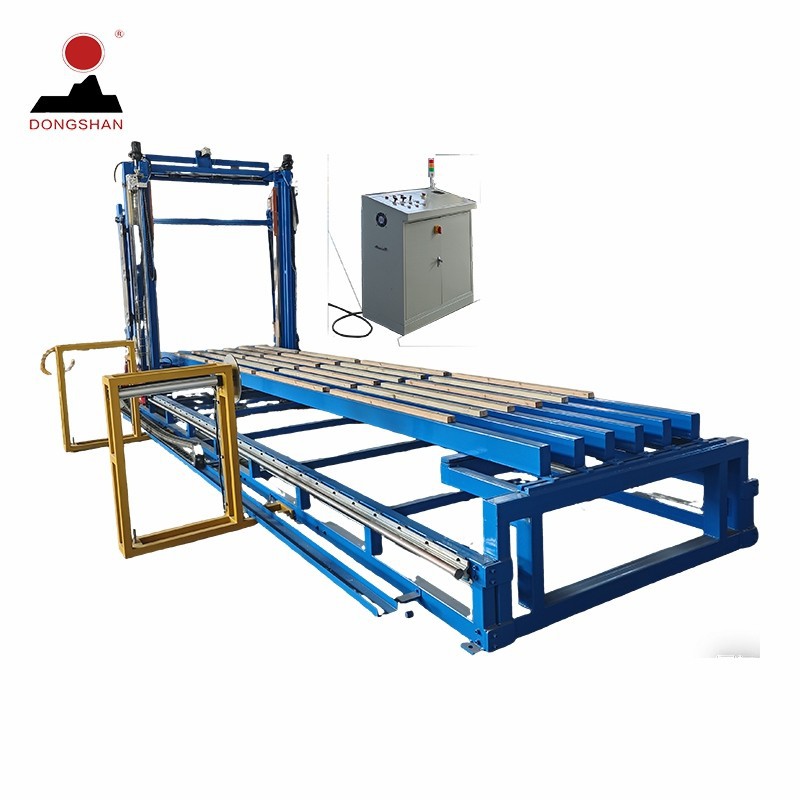

This is a continuous, fully - automatic PLC - controlled foam plate cutting machine. It moves the plate while fixing the cutting frame, enabling three - direction horizontal, rigid, cut - off, and continuous cutting of foam plates. With numerous cutting wires and high cutting speed, the manipulator - adjusted wires automatically in 1 - 3 minutes, 10 times faster than manual adjustment. It features high precision and automation, making it essential for medium - to - large foam plate plants.
Technical Specifications
| ltem | Unit | PARAMETER |
| Suitable For Block Size | mm | 4000×1300×1300 |
| Min.Cutting Thickness | mm | 10 |
| Cutting Speed | m/min | 0.5-1.5 |
| Max.Wires In Horizotal | piece | 50 |
| Max.Wires In Vertical Cutting | piece | 15 |
| Max Wires In Cross Cutting | piece | 15 |
| Hot Wire Specification | mm | 0.4-0.8 |
| Connected Load | Kw | 24.8 |
| Weight | Kg | 3500 |
| Contour Size | mm | 18000×3000×2420 |
| Auto wire setting in horizontal | yes | |
| Manually wire set in Vertical cut | yes | |
| Cross cutting wire set manually | yes | |
| Vibration wire cutting for horizontal | yes | |
| Vbration wire cutting for vertical | yes | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
Why Choose Us
Certifications and Awards
the final view of project
Exhibitions with Global Customers
