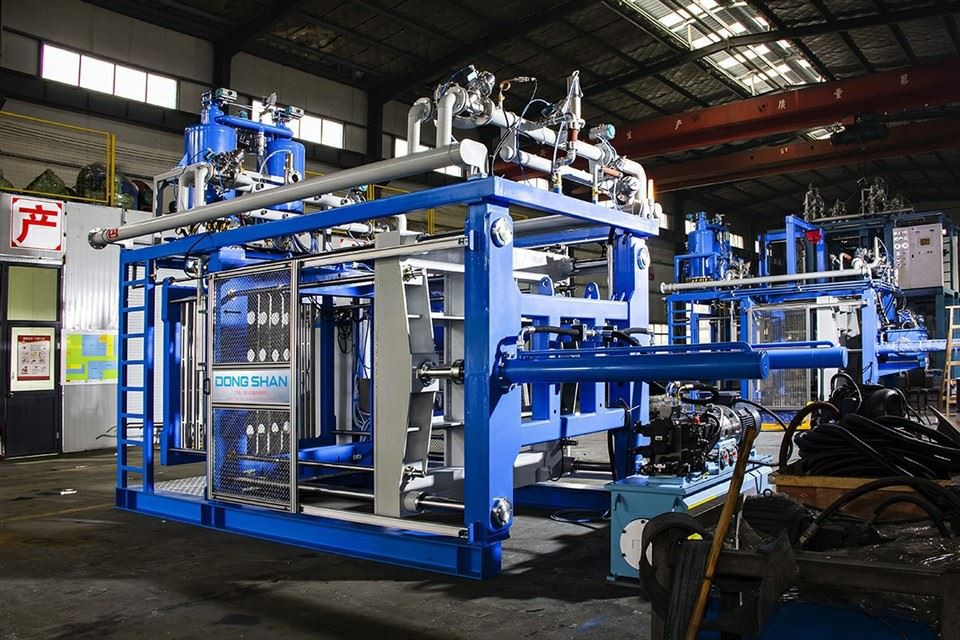

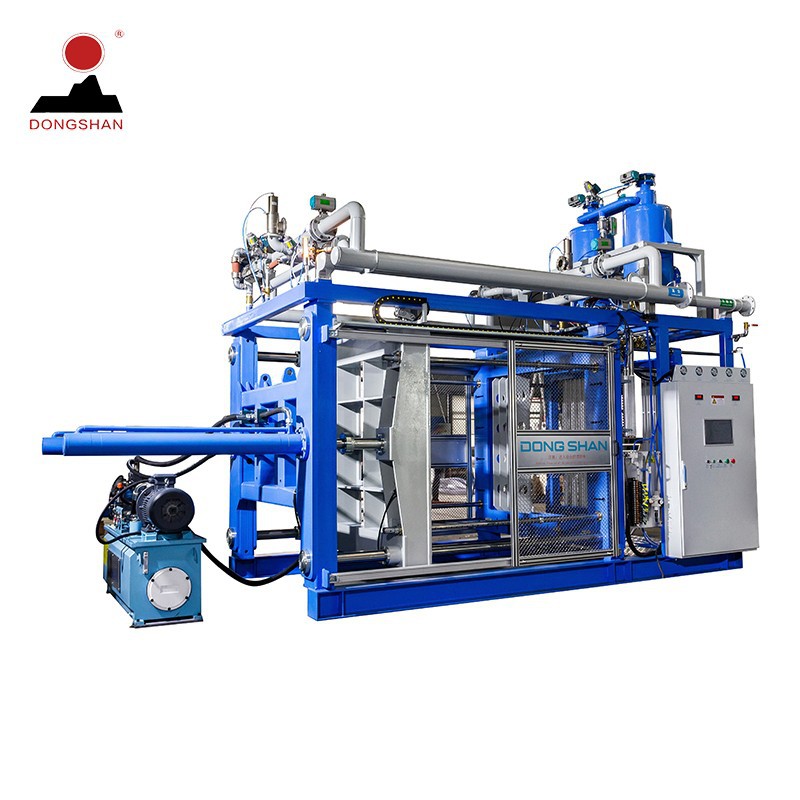

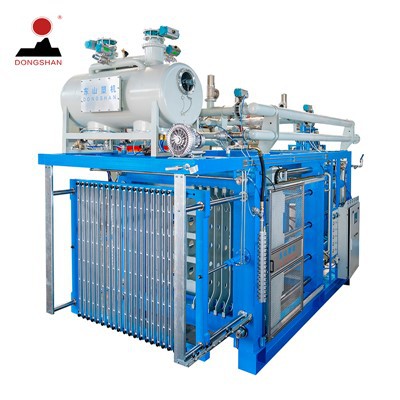

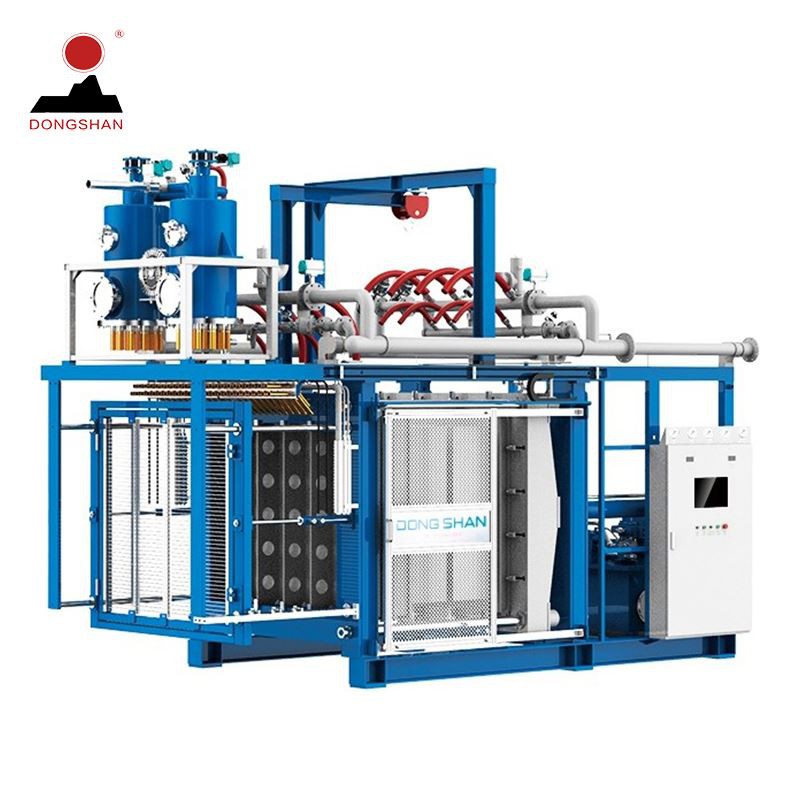

EPS Foam Box Molding Machine for Package
Effective Molding Area: 1600x1400mm
Max Products Height: 400mm
Steam Pressure: 3-6 bar
Power: 17.2kW
Overall Dimensions: 5300x2650x3970mm (exclude leg)
Weight:8500kg
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps foam box molding machine for package in China, also supports customized service with low price. Welcome to wholesale high quality eps foam box molding machine for package for sale here from our factory. Contact us for pricelist.
Good quality used eps shaping machine for sale from professional eps epp machinery manufacturer
Precision Pressure Regulation: Digital sensors maintain steam pressure within a tight variance of ±0.02MPa. This level of control is critical for producing complex shapes with consistent density and preventing "soft centers" in thicker products.
Pressurized Fast-Filling System: Utilizing high-frequency filling guns and a pressurized material tank, the machine can fill intricate mold cavities in seconds, ensuring even material distribution even in thin-walled or complex automotive and electronic packaging components.
Digital Motion Tracking: By employing high-resolution encoders (such as Autonics), the travel control system achieves a positioning accuracy of ±0.05mm. This ensures the mold closes and opens with perfect synchronization, protecting delicate mold surfaces and the final product.
Remote Monitoring & IoT Integration: Modern units feature remote diagnostic capabilities, allowing engineers to monitor real-time production data, adjust parameters, and troubleshoot issues from off-site, ensuring maximum machine uptime

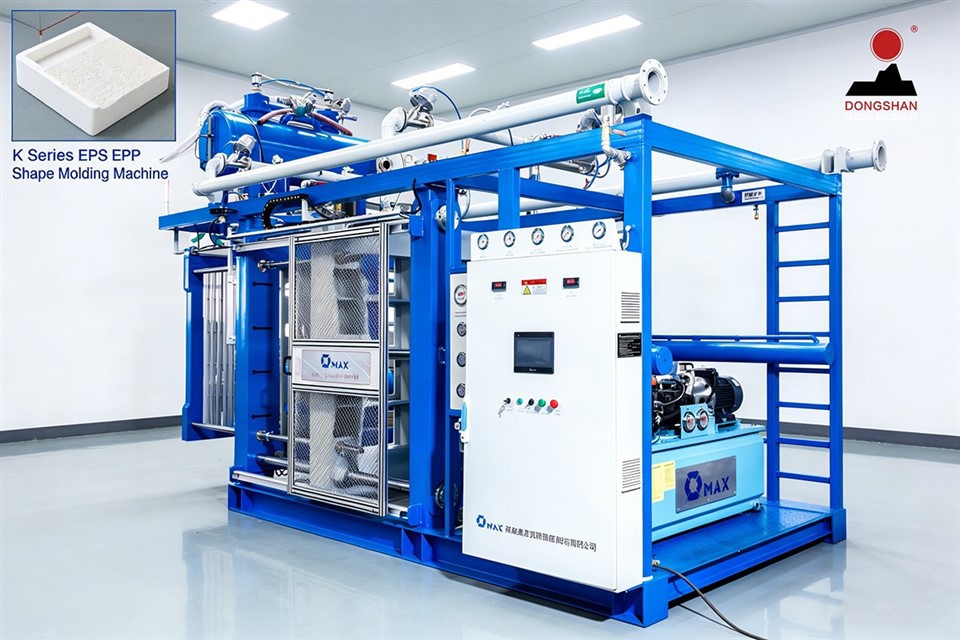

K series

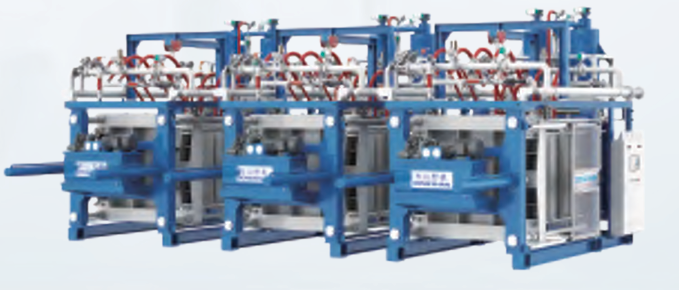

X-A series
- Forward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen

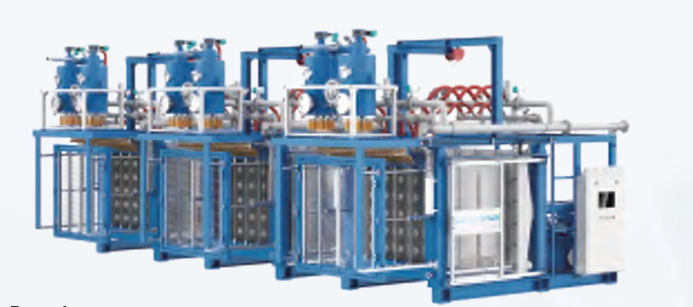

X-B series
- Backward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen

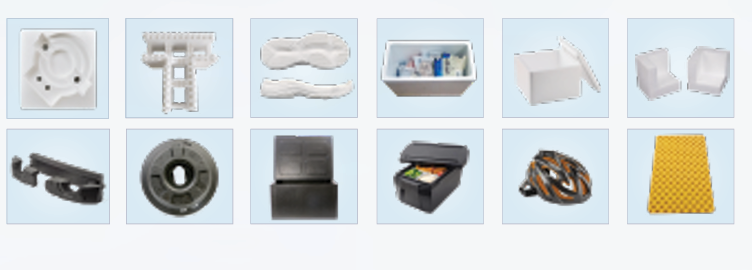

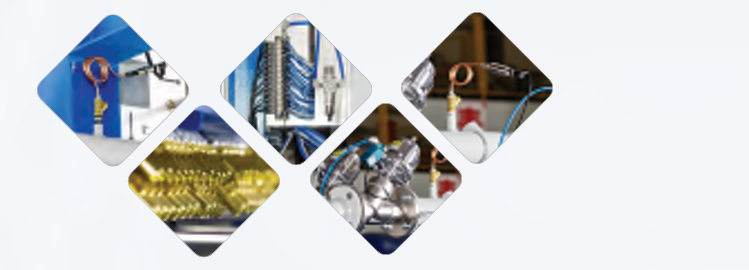

Key parts and Products
Technical Specifications
|
Iterm Description |
unit |
EPS1210 |
EPS1412 |
EPS1513 |
EPS1750 |
EPS1816 |
EPS2216 |
|
|
Mold dimensions |
mm |
1200X1000 |
1400X1200 |
1500X1300 |
1750X1450 |
1800X1600 |
2200X1600 |
|
|
Rear window size |
mm |
1100X900 |
1250X1100 |
1400X1200 |
1650X1350 |
1700X1450 |
2050X1450 |
|
|
Effective molding area |
mm |
1000X800 |
1200X1000 |
1300X1100 |
1550X1250 |
1600X1350 |
1950X1350 |
|
|
Maximum product height |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
|
Steam pipeline |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Steam System |
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Working pressure |
Kg/cm2 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
|
|
pipe interface |
DN |
65 |
65 |
65 |
80 |
80 |
80 |
|
system |
Working pressure |
Kg/cm2 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
|
Cooling Water System |
pipe interface |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
Working pressure |
Kg/cm2 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
|
|
Mold interface |
DN |
25X6 |
25X8 |
25X8 |
25X8 |
25X8 |
25X8 |
|
|
Sewage system |
Vacuum interface |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Solidify, relocate and drain water |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
|
Sewage pipe interface |
DN |
100 |
100 |
100 |
100 |
125 |
125 |
|
|
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Hydraulic system |
Oil pump motor |
Kw |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
|
Oil pump size |
L/min |
23+53 |
25+75 |
25+75 |
25+94 |
25+94 |
31+116 |
|
|
clamping force |
T |
24 |
24 |
24 |
38 |
38 |
42 |
|
|
Open and close mold oil cylinder |
mm |
100X1360/2 |
100X1360/2 |
100X1360/2 |
125X1360/2 |
125X1360/2 |
150X1360/2 |
|
|
Demoulding oil cylinder |
mm |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
70X40X450 |
|
|
Bucket capacity |
cube |
0.15 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
system |
Feeding fan |
Kw |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Outlet |
individual |
32 |
50 |
50 |
50 |
50 |
64 |
|
Single unit power |
Kw |
7 |
7.7 |
7.7 |
9.7 |
9.7 |
13.2 |
|
|
External dimensions (width according to machine feet) |
LXWXH |
5250X1750X3785 |
5250X1950X3785 |
5250X2050X3885 |
5430X2250X4000 |
5450X2230X4000 |
5632X2620X4100 |
|
|
Single machine weight |
T |
4.5 |
5 |
6.5 |
7.5 |
8.5 |
9 |
|
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
