Multi-Wire EPS Cutting Machine
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of multi-wire eps cutting machine in China, also supports customized service with low price. Welcome to wholesale high quality multi-wire eps cutting machine for sale here from our factory. Contact us for pricelist.

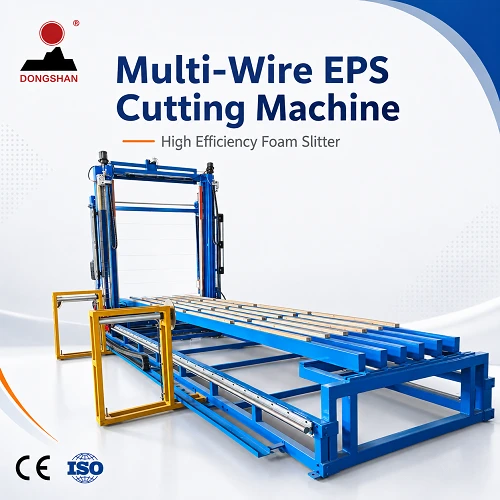

Multi-Wire EPS Cutting Machine High Efficiency Foam Slitter for Mass Production EPS Panel and Block Cutting
Multi-Wire EPS Cutting Machine
*The Multi-Wire EPS Cutting Machine is a high-efficiency foam slitting solution developed for mass production of EPS panels, insulation boards and blocks. Its multi-wire configuration allows multiple cutting operations to be completed efficiently, making it suitable for EPS manufacturers seeking higher productivity and consistent product dimensions.
*PLC and computer-based control enable automatic and continuous operation with stable cutting parameters. Cutting accuracy can reach below ±1 mm, while processing dimensions of 2–6 meters are available and can be customized. The cutting speed is approximately 1–2 m/min, and the automatic wire-setting device helps improve production efficiency and simplify daily operation.
*Designed for EPS insulation board production, packaging materials, building materials and foam fabrication, the machine can process large EPS blocks into panels with accurate and consistent dimensions. Semi-automatic and fully automatic configurations allow customers to select the appropriate solution according to production volume and labor requirements.
*The machine can be integrated into a complete EPS production line together with an EPS pre-expander and EPS board machine. Optional automatic packaging equipment can further extend the production process from EPS raw material preparation to forming, cutting and final packaging.
*Dongshan EPS EPP Machinery provides more than 100 patented technologies, CE and ISO certified equipment, professional engineering services and global after-sales support. Our EPS solutions have been successfully installed in Saudi Arabia, Algeria and Brazil, serving customers across the Middle East, Africa, Europe, the Americas, Southeast Asia and Russia.
Key Technical Features
Heavy-Duty Structural Frames:
To prevent wire vibrations that cause jagged "wave cuts," our frames are constructed using thick, stress-relieved rectangular steel tubes. They are sandblasted and coated to endure decades of constant operational shifts without warping.
01
Frequency Conversion & Smart Speed Control:
Equipped with advanced variable frequency drives (VFD), the conveyor movement speed adjusts smoothly between 0 to 4 meters per minute. This allows operators to perfectly balance block density with cutting heat to avoid melted surfaces.
02
Automatic Wire Setting & Tensioning Systems:
Changing wire configurations manually costs hours of downtime. Our automated systems allow operators to set wire gaps digitally via the touch screen. High-performance pneumatic or spring tensioning mechanisms ensure the wires remain perfectly rigid even at maximum temperatures.
03
Synchronized Wire Breakage Protection:
If a single hot wire snaps during a heavy cutting cycle, the entire line halts instantly. This prevents the machine from pushing un-sliced block segments down the line, safeguarding your components and preventing expensive block wastage.
04
Integrated Scrap Collection:
Our lines feature integrated bottom scrap collectors and overhead extraction hoods to pull away loose trimmings and hazardous fumes, keeping the factory floor clean and safe.
05
In the expanded polystyrene (EPS) block manufacturing industry, the bottleneck is rarely the molding-it is the speed, precision, and scrap rate of the cutting phase. Large blocks mean nothing if they cannot be sliced into accurate, merchantable dimensions efficiently.
Dongshan EPS Cutting Machines are the cornerstone of production lines serving multi-billion dollar global industries:
1. Building Insulation & Construction: Mass production of Exterior Insulation and Finish Systems (EIFS) panels, structural insulated panels (SIPs), underfloor heating boards, and specialized roof insulation sheets.
2. Architectural Elements: Crafting elegant crown moldings, pillars, arches, decorative corbels, and complex thematic sets for construction and entertainment industries.
3. Protective Packaging: Slicing shock-absorbing protective foam sheets, custom corner blocks, and tailored inserts for fragile electronics or heavy machinery transport.
4. Geofoam Civil Engineering: Fabricating massive, highly precise EPS blocks used as lightweight stabilization fill for highways, bridge abutments, and embankments.
Equipment Overview

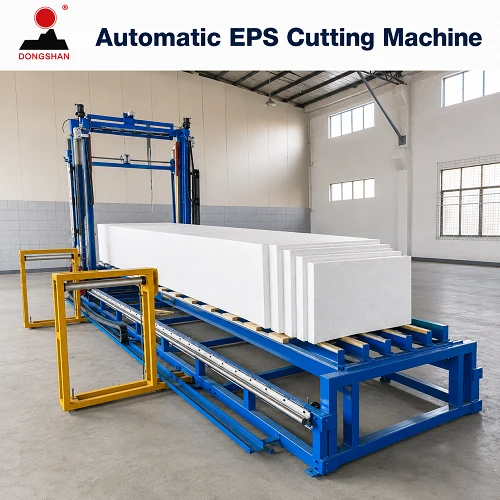

This is a continuous, fully - automatic PLC - controlled foam plate cutting machine. It moves the plate while fixing the cutting frame, enabling three - direction horizontal, rigid, cut - off, and continuous cutting of foam plates. With numerous cutting wires and high cutting speed, the manipulator - adjusted wires automatically in 1 - 3 minutes, 10 times faster than manual adjustment. It features high precision and automation, making it essential for medium - to - large foam plate plants.
Technical Specifications
| ltem | Unit | PARAMETER |
| Suitable For Block Size | mm | 4000×1300×1300 |
| Min.Cutting Thickness | mm | 10 |
| Cutting Speed | m/min | 0.5-1.5 |
| Max.Wires In Horizotal | piece | 50 |
| Max.Wires In Vertical Cutting | piece | 15 |
| Max Wires In Cross Cutting | piece | 15 |
| Hot Wire Specification | mm | 0.4-0.8 |
| Connected Load | Kw | 24.8 |
| Weight | Kg | 3500 |
| Contour Size | mm | 18000×3000×2420 |
| Auto wire setting in horizontal | yes | |
| Manually wire set in Vertical cut | yes | |
| Cross cutting wire set manually | yes | |
| Vibration wire cutting for horizontal | yes | |
| Vbration wire cutting for vertical | yes | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
Complete Automation Loop: Continuous Line Engineering
If your facility handles blocks via separate forklifts moving between standalone block molders and detached cutting tables, you are carrying excessive labor and logistics costs.
What Dongshan Does: We engineer fully integrated, automated Continuous Cutting Lines that handle blocks straight out of the cooling/aging racks.

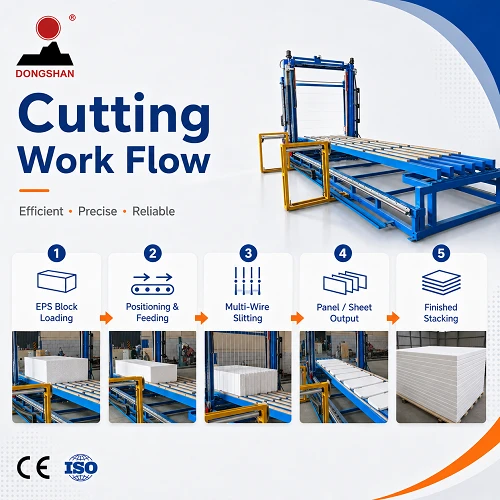

The Business Impact: Large EPS blocks are conveyed, positioned, trimmed, horizontally sliced, and cross-cut automatically on synchronized motorized roller networks driven by a single Master PLC panel. This effectively compresses your cutting team labor down to a solitary quality supervisor.
Why Choose Us
When you buy a machine from Dongshan, you are purchasing 30 years of industrial legacy and dedicated manufacturing expertise.
30-Year Engineering Pedigree: Since our founding, we have specialized exclusively in EPS and EPP automation, creating a deep pool of institutional engineering knowledge.
World-Class Components Only: We refuse to cut corners. Every critical component inside a Dongshan machine-from Siemens PLCs and Schneider electronics to Airtac pneumatics-is selected from globally recognized suppliers to guarantee easily accessible local replacements.
Certified Quality Standards: Our entire design and production ecosystem strictly complies with ISO9001:2015 quality management systems and holds full CE certification for European markets.
Turnkey Global Deployment: From initial engineering consultation and AutoCAD factory floor layout mapping to on-site mechanical installation, calibration, and local operator training, we manage your investment from start to finish. Our equipment operates flawlessly in over 50 countries worldwide.
Certifications and Awards
our factory and workshop
Exhibitions with Global Customers
Dongshan EPS EPP machines are running in markets worldwide, supporting customers across more than 50 countries and regions.
With consistently growing export performance, DONGSHAN has become a trusted global partner in EPS and EPP machinery.
Backed by a responsive global service system, we ensure quick support, efficient commissioning, and long-term operational reliability for every customer.
Dongshan's Worldwide Sale offices:
1. China Headquarters
2. Brizal Office
3. India Office
4. Turkey Office
5. Russia Office
6. Veitnam Office
7. Argeria Office
One-stop Solutions of EPS EPP Machinery project suppliers
Our goal is simple:
Help customers produce better EPS products, reduce operating costs, increase productivity, and achieve sustainable business growth.
Because when our customers succeed, Dongshan succeeds.
