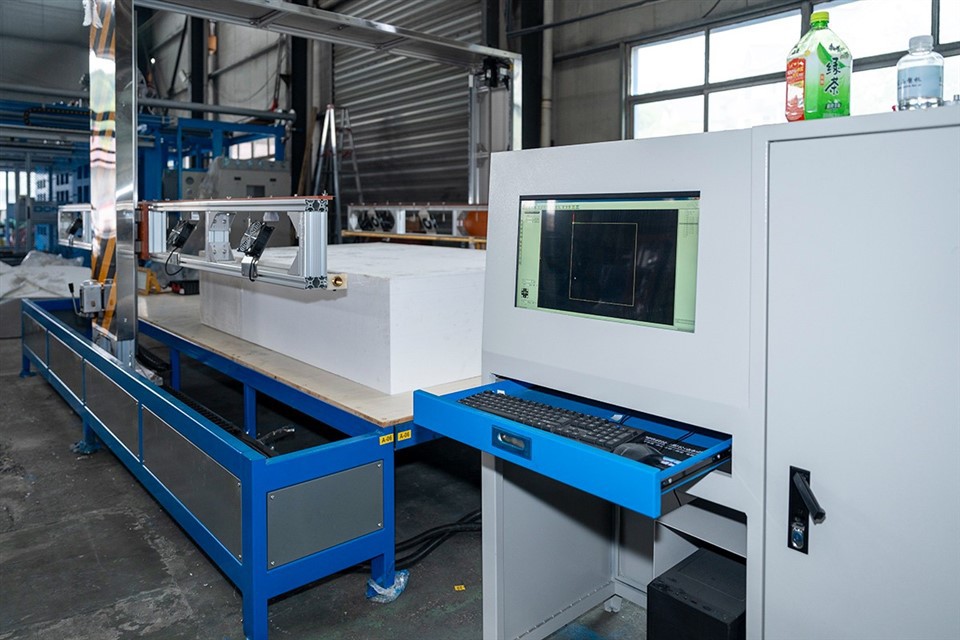

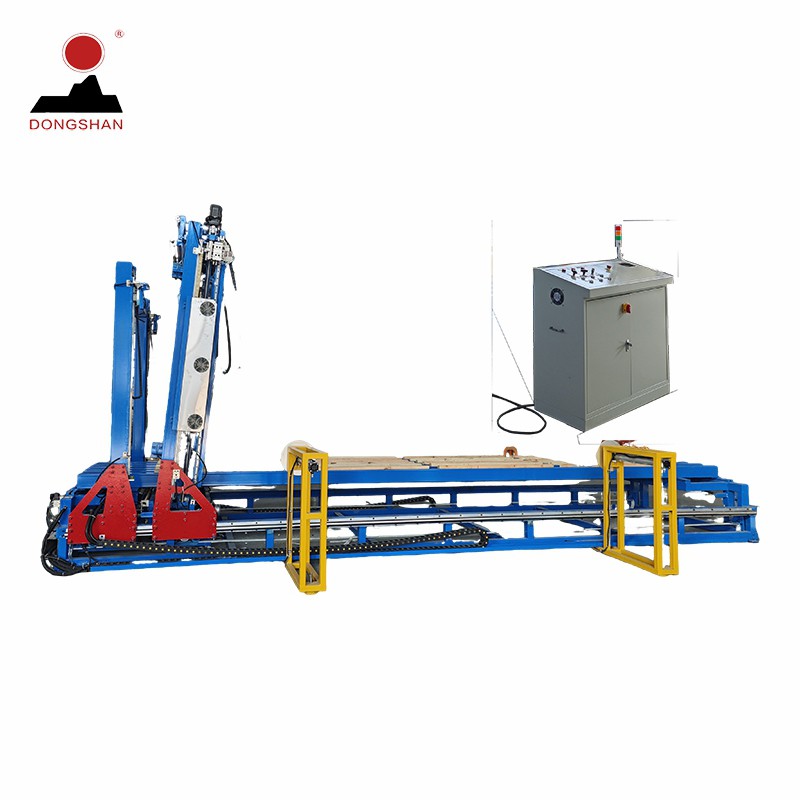

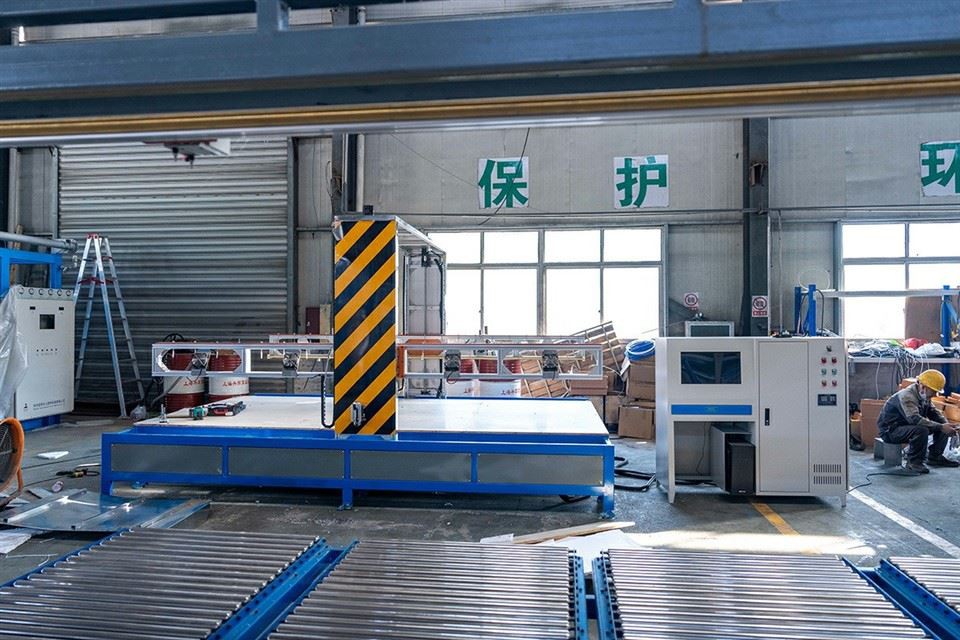

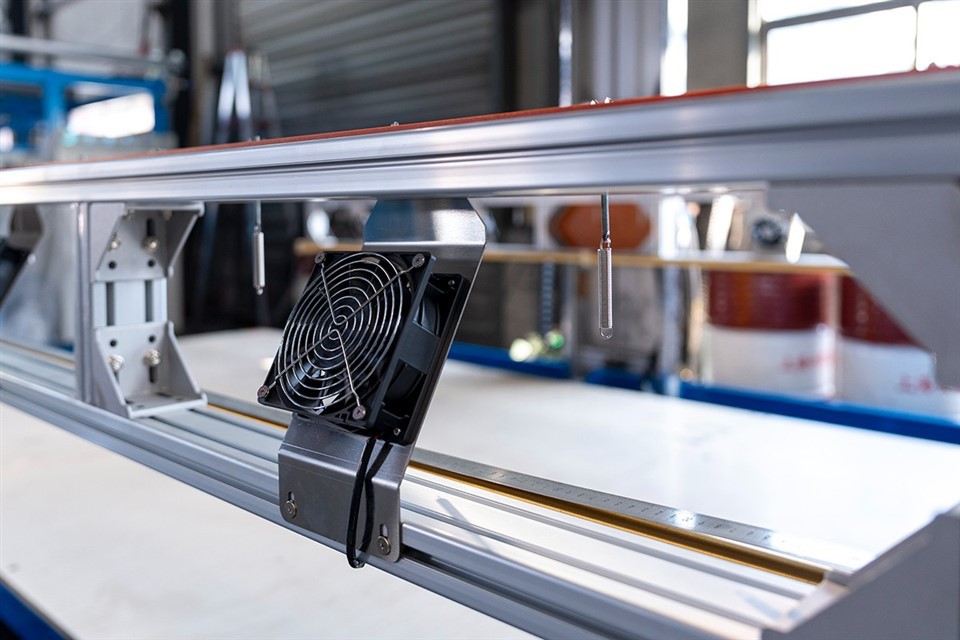

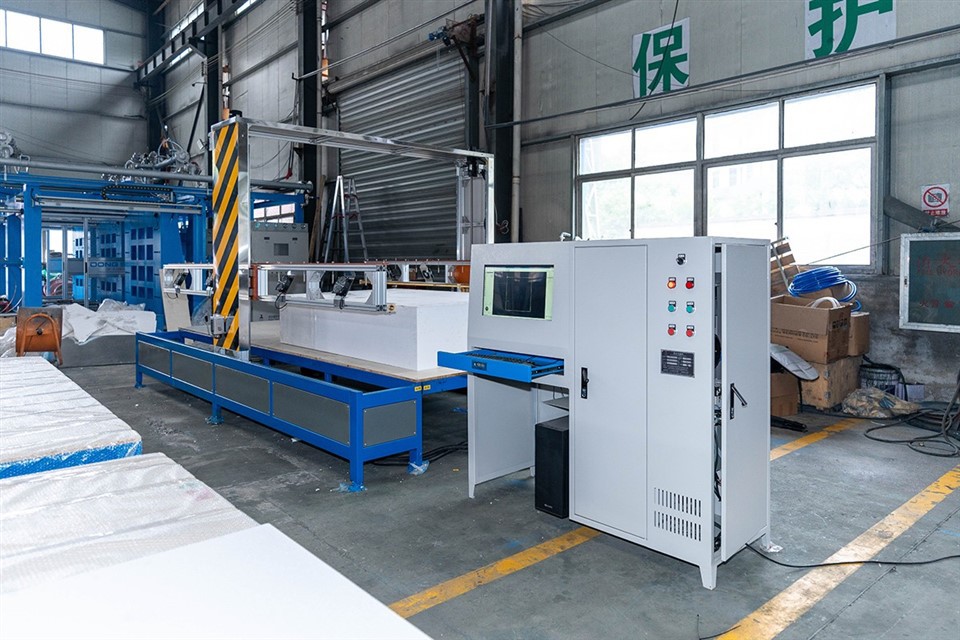

Polystyrene Sheet Cutter

Streamline your insulation board manufacturing with our Multi-Wire Polystyrene Sheet Cutter. Specifically designed for EPS foam insulation sheet production, this machine offers synchronized multi-wire cutting for maximum efficiency, precise thickness control, and smooth surface finishes for high-quality construction materials.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of polystyrene sheet cutter in China, also supports customized service with low price. Welcome to wholesale high quality polystyrene sheet cutter for sale here from our factory. Contact us for pricelist.

Multi-Wire Polystyrene Sheet Cutter EPS Foam Cutting Machine for Foam Insulation Sheet Production

Core Advantages for Factory Owners

Feature	Operational Benefit
Modular Design	Allows for rapid replacement of parts without dismantling the entire machine.
PLC Automation	Reduces the need for highly skilled labor; "one-touch" batch processing.
Integrated Scrap Collection	Keeps the workspace clean and collects off-cuts for immediate recycling.
Galvanized Components	Protects against corrosion in humid or industrial environments.

Features

Stable density control with ≤ ±3% tolerance;
Closed constant- pressure foaming, suitable for high altitude areas;
High- quality hot air drying system for uniform beads.

International brand components ensure long service life;
Easy operation with PLC & recipe memory.

Advantages

FC200/250 series CNC foam cutter suit for 2D profile cutting with multi cutting wire, which have big capacity and high accuracy, this machine is specially for exterior cornice moulding, facade cladding and deco elements.

The automatic wire - setting foam plate cutting machine adds horizontal auto - wire - setting, set -length cross - cutting, and auto - operation on the regular sheet cutter. It solves manual wire – hanging hassle, inaccuracy, and large cross - cut length tolerance, boosting cutting accuracy and output. Ideal for small - medium foam sheet orders, it's the top choice for EPS sheet factories.

This is a continuous, fully - automatic PLC - controlled foam plate cutting machine. It moves the plate while fixing the cutting frame, enabling three - direction horizontal, rigid, cut - off, and continuous cutting of foam plates. With numerous cutting wires and high cutting speed, the manipulator - adjusted wires automatically in 1 - 3 minutes, 10 times faster than manual adjustment. It features high precision and automation, making it essential for medium - to - large foam plate plants.

Technical Specifications

Item	Unit	DSFC SAXIS
Max Cutting Size	mm	2000~6000X1300X1300
Min.Cutting Thickness	mm	15
Cutting Speed	m/min	0.4~1
Max.Wires In Horizontal	piecs	32
Max.Wires In Cross Vertical	piecs	10
Wires In Cross Cutting	piecs	1
Hot Wire Specification	mm	0.4
Connected Load	kw	21
PowerSupply	VHZ	380/50
Weight	kg	1800
Contour Size	M.M	4500×8500×1864×2850
Step Motor For Wire-setting(2unit)	N.M	2-8.5 (Close loop)
Step Motor For Cross CutingMovement	N.M	12(Close loop)
StepMotor Cross Cutting	N.M	35 closeloop(up&down)
Horizontal Shelf Motor	kw	0.75 By frequency converter
