EPS Cutting Solutions

This High Speed Custom EPS Cutting Solution is an industrial-grade Thermocol cutting machine designed for the rapid production of foam packaging sheets. With Customizable Cutting Parameters, Precision Hot-Wire Technology and Industrial Versatility, It prioritizes flexibility and velocity to meet specific client requirements.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps cutting solutions in China, also supports customized service with low price. Welcome to wholesale high quality eps cutting solutions for sale here from our factory. Contact us for pricelist.

High Speed Custom EPS Cutting Solutions Foam Thermocol Cutting Machine for Packaging Sheets

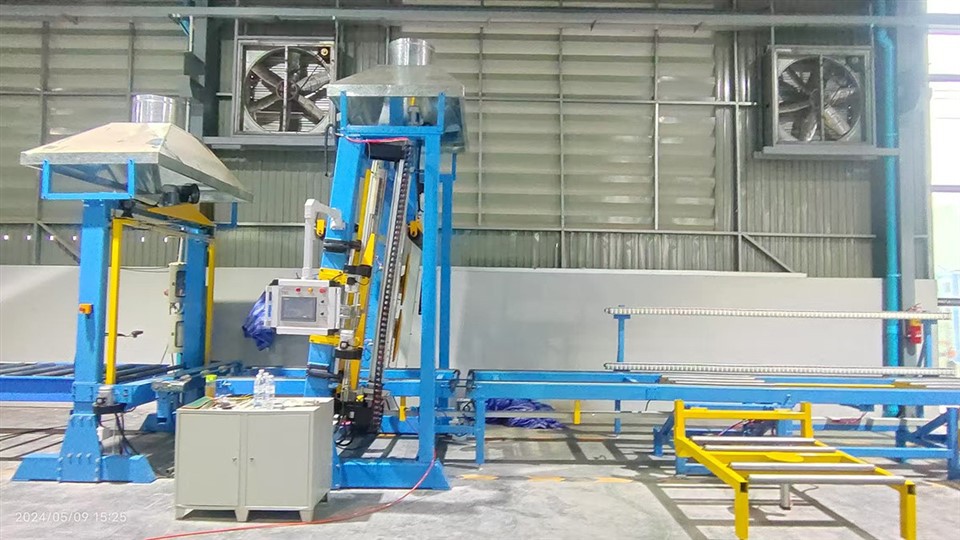

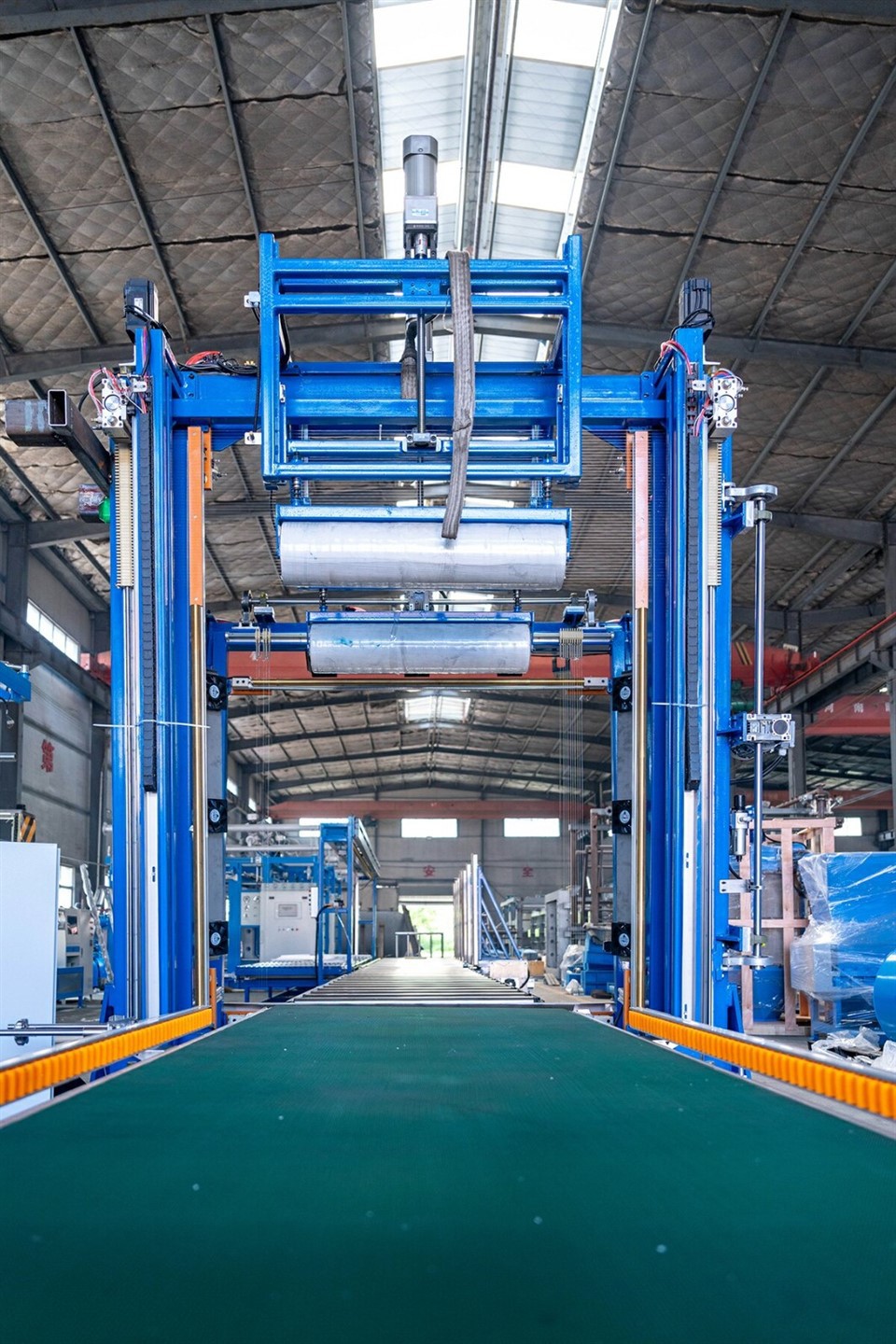

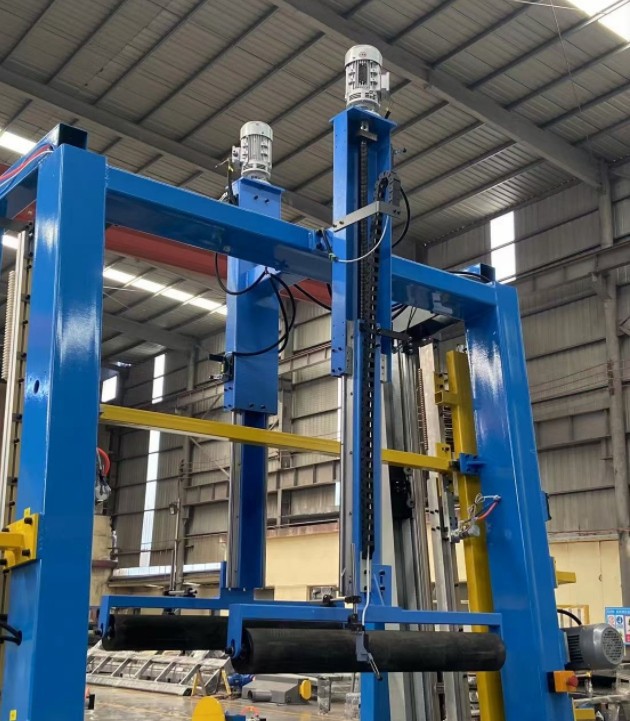

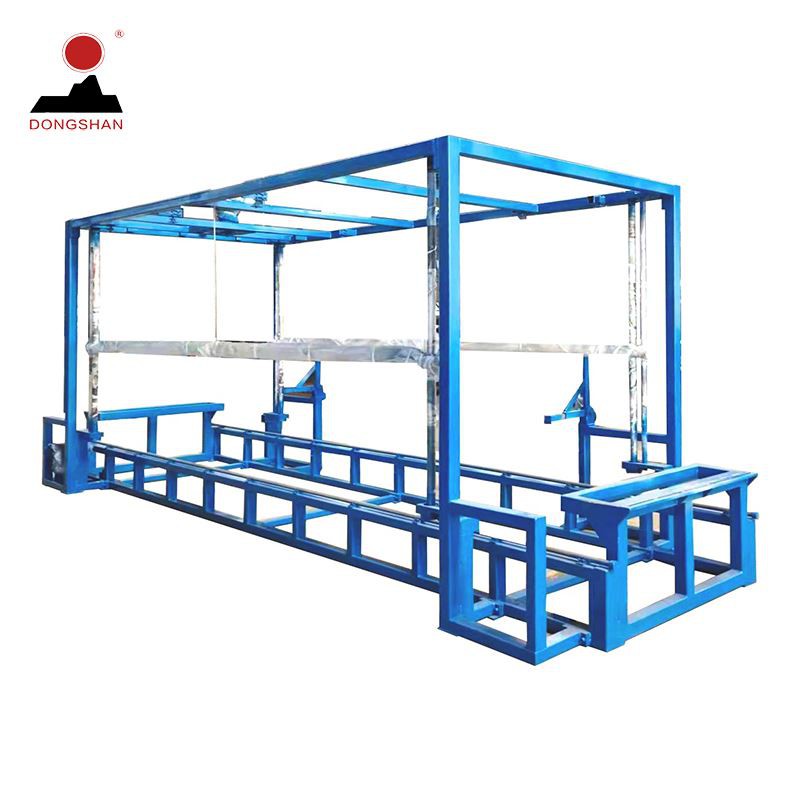

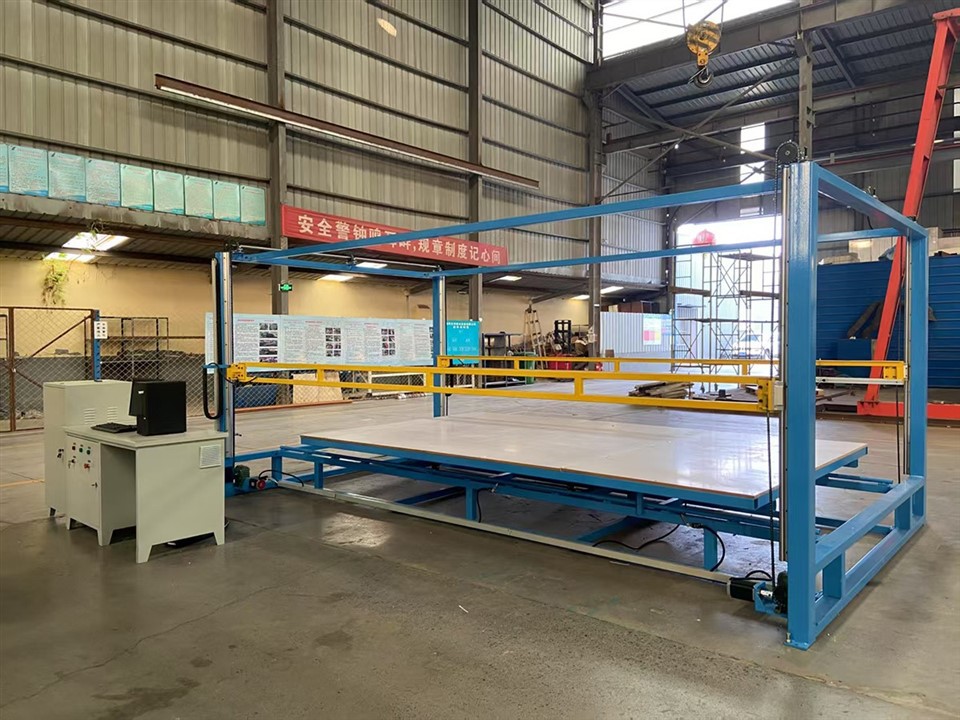

This is a continuous, fully - automatic PLC - controlled foam plate cutting machine. It moves the plate while fixing the cutting frame, enabling three - direction horizontal, rigid, cut - off, and continuous cutting of foam plates. With numerous cutting wires and high cutting speed, the manipulator - adjusted wires automatically in 1 - 3 minutes, 10 times faster than manual adjustment. It features high precision and automation, making it essential for medium - to - large foam plate plants

Technical Performance Summary

Feature	Technical Specification	Operational Benefit
Control System	PLC + 10" to 15" Touchscreen	Intuitive operation & remote diagnostics
Cutting Speed	0–2.0 m/min (Adjustable)	High-volume throughput
Precision	±0.5mm to ±1.0mm	High-quality construction-grade panels
Automation Level	Fully Automatic / Continuous	60–80% reduction in labor costs

Features

Stable density control with ≤ ±3% tolerance;
Closed constant- pressure foaming, suitable for high altitude areas;
High- quality hot air drying system for uniform beads.

International brand components ensure long service life;
Easy operation with PLC & recipe memory.

Advantages

FC200/250 series CNC foam cutter suit for 2D profile cutting with multi cutting wire, which have big capacity and high accuracy, this machine is specially for exterior cornice moulding, facade cladding and deco elements.

The automatic wire - setting foam plate cutting machine adds horizontal auto - wire - setting, set -length cross - cutting, and auto - operation on the regular sheet cutter. It solves manual wire – hanging hassle, inaccuracy, and large cross - cut length tolerance, boosting cutting accuracy and output. Ideal for small - medium foam sheet orders, it's the top choice for EPS sheet factories.

Technical Specifications

Item		Unit	DSQ-2000B	DSQ-3000B	DSQ-4000B	DSQ-6000B	DSQ-8000B
Max Cuting Sze		mm	3000×1250×1250	3000X1250X1250	4000×1250X1250	6000×1250×1250	6000X1250×1250
Max Cuting Sze	Horizontal	pcs	60	60	60	60	60
	Wartical	pcs	60	60	60	60	60
	Crcsing	pcs	20	20	20	20	20
WoringSpood		mlmin	00-2	00-2	00-2	00-2	00-2
ComnectadLnadPower		kw	35	35	35	35	35
Overal Dimension(L×W×H0		mm	5800×2300×2600	580CX2300X2600	6800K2300K2600	88000×230002600	8800×2300×2600
Weight		Kg	2000	2000	2500	3000	3000
