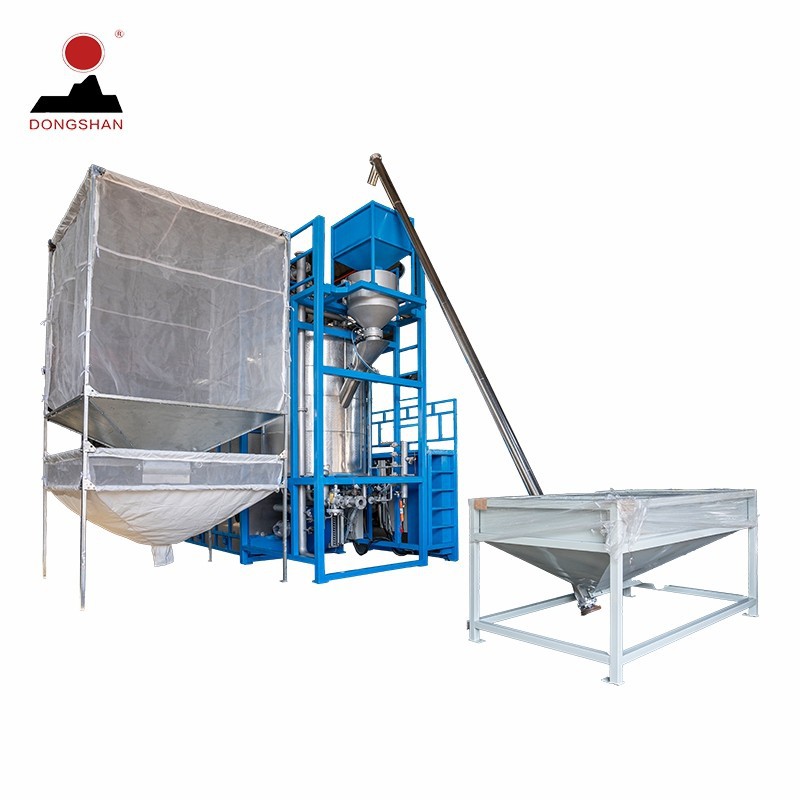

Polystyrene Foam Maker

This Automatic Continuous Working Type EPS Pre-Expander is designed for high-efficiency, non-stop polystyrene foam production. With High-Volume Throughput, Uniform Expansion and Energy & Space Efficiency, It is a key solution for manufacturers who require a steady, high capacity supply of expanded beads for various Styrofoam products.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of polystyrene foam maker in China, also supports customized service with low price. Welcome to wholesale high quality polystyrene foam maker for sale here from our factory. Contact us for pricelist.

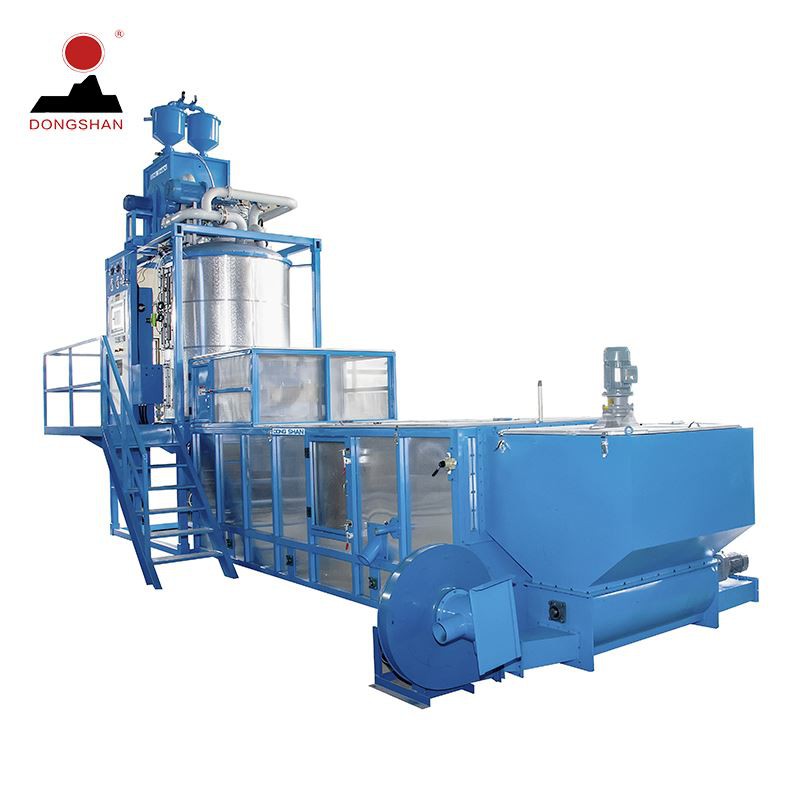

Automatic Continuous Working Type EPS Pre-Expander Polystyrene Foam Maker for Styrofoam products Manufacturing

Automated Metrology & Material Handling

Digital Gravimetric Feeding: Features an integrated electronic weighing system. Operators can define precise load weights via the HMI touchscreen; the system then executes automated, high-accuracy feeding to eliminate manual variance.

Intelligent Level Monitoring: Employs Korean-engineered vibration sensors to monitor material levels with high sensitivity, ensuring uniform particle density throughout the expansion cycle.

Fluidized Bed Efficiency & Maintenance

Optimized Aging & Transfer: The material level height within the fluidizer bed is fully adjustable to optimize the aging effect of expanded particles. A high-efficiency flap-feeding device ensures rapid, uninterrupted particle throughput.

Simplified Maintenance: An integrated crushing device at the base of the fluidized bed prevents material clumping and facilitates rapid, convenient cleaning during grade changes.

Core Component & Performance Matrix

System	Key Component / Brand	Operational Advantage
Pressure Regulation	Batton (Germany) / Yoshitake (Japan)	Constant-pressure stability; ±0.01MPa variance
Thermal Logic	Dual Proportional Valves	Precise high-density expansion control
Motion Control	Frequency-Inverter Spindle	Adaptive agitation for various material types
Level Sensing	Korean Vibration Sensors	Uniform bead density and volume control

Performance & Efficiency Optimization

High- Efficiency Flow Design: Large butterfly valve ensures stable vacuum and rapid discharging; DN 150 feeding valve reduces feeding time by 6- 8 seconds; vacuum cooling system with buffer tank improves pre- vacuum efficiency, significantly shortening the overall cycle.

Synchronous Operation: Dual- barrel vacuum feeding system enables simultaneous discharging and feeding, ensuring uninterrupted production.

Material Handling & Conveying System

Uniform Conveying: Four discharge ports for synchronous discharging; multi- port air supply in vacuum system ensures uniform ventilation of particles; wind- shielded feeding device (stainless steel) adapts to heavy materials, offering fast and durable performance.

Insulation & Stirring: Thickened insulation cotton reduces barrel heat loss; stirring spindle with frequency converter supports multi- speed adjustment, ensuring stable processes.

product-901-545

Precision Control & Stability Assurance

Sealing & Regulation: Four sets of discharge cylinders with imported sealing compo nents for long- term reliability; German Burkert proportional valves, pressure sensors, and temperature transmitters precisely control steam and cold air circuits, achieving constant tem perature and pressure foaming, suitable for multi- weight processes.

Air Supply & Temperature Control: Japanese SMC pressure reducing filter and sec ondary pressure stabilization system ensure stable compressed air; feeding fan with steam proportional valve maintains constant air temperature in various environments.

Production Efficiency

Protection System: Pipeline safety valves provide dual protection for steam pressure; stainless steel crushing and screening device intercepts agglomerates to prevent blockages.

Intelligent Functions: Automatic density weighing system displays real- time cycle weight and supports data interfaces; dual- vibration level gauge combined with viewport clean ing system avoids level misjudgment.

Durability & Maintenance: Key components use corrosion- resistant stainless steel; vacuum tank has inspection port, cooling system with imported hoses to reduce vibration and protect pumps.

Technical Specifications

Number	ltem		Unit	DS1200
1	Expand Chamber	Chamber	mm	φ1200×1470
1	Expand Chamber	Effective Volume	m²	1.35
2	Steam	Entry	inch	DN50
2	Steam	Pressure	Mpa	0.5-0.6
3	Compressed Air	Entry	inch	DN40
3	Compressed Air	Pressure	Mpa	0.55-0.7
4	Drainage	Upper Vent	mm	DN150
4	Drainage	Down Vent	mm	DN100
5	Capacity	12g	KG	600-800kg/h
		18gl	KG	900-1200kg/h
		25gl	KG	1100-1300kgh
		32gl	KG	1200-1400kgh
6	Total Power		KW	31.05
7	Expanding Tolerance		%	≤±0.5%
8	Overall Size(L×W×H)		mm	2300×2300×6000
9	Weight		KG	5500
