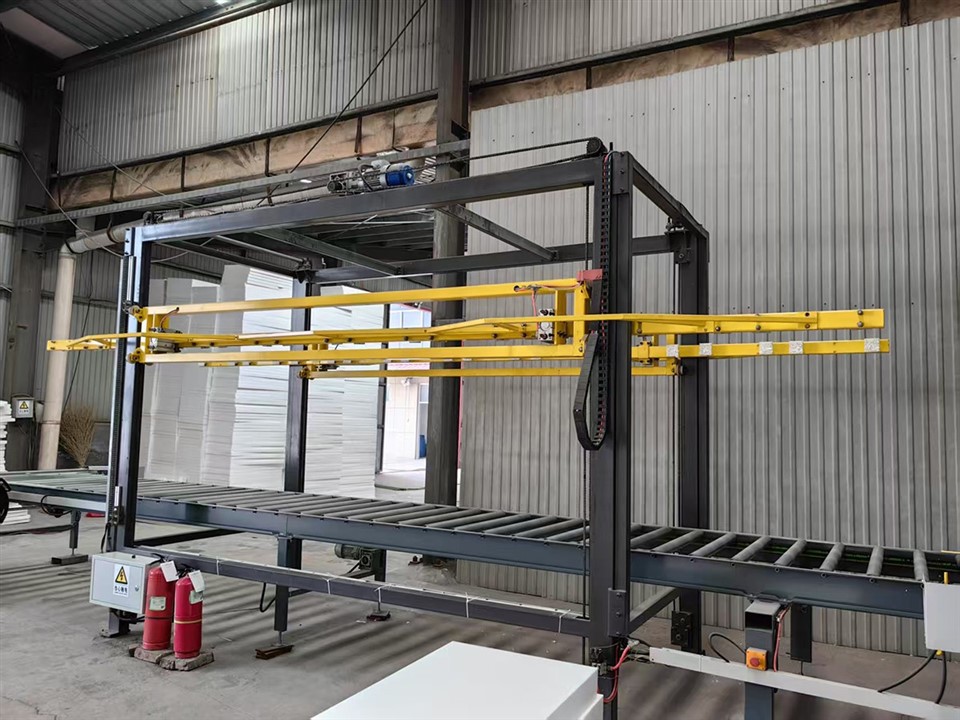

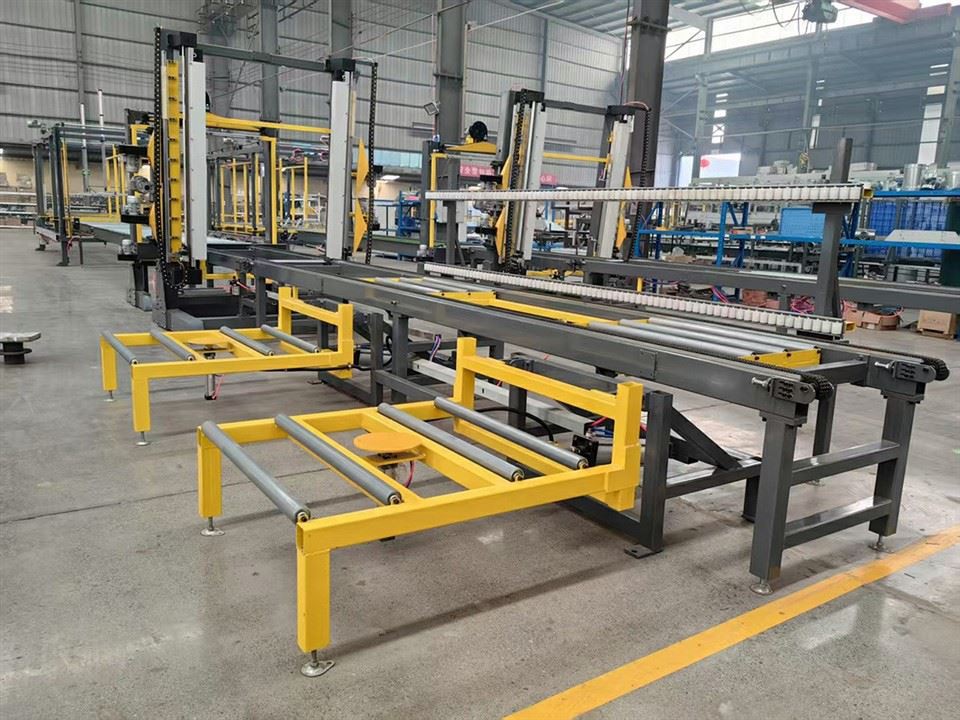

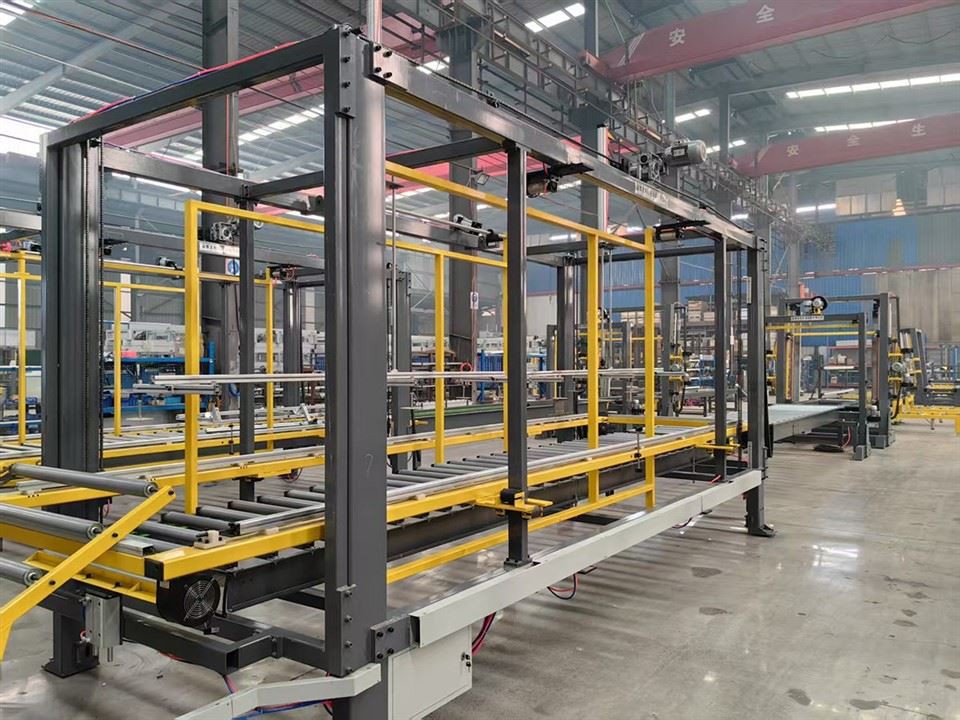

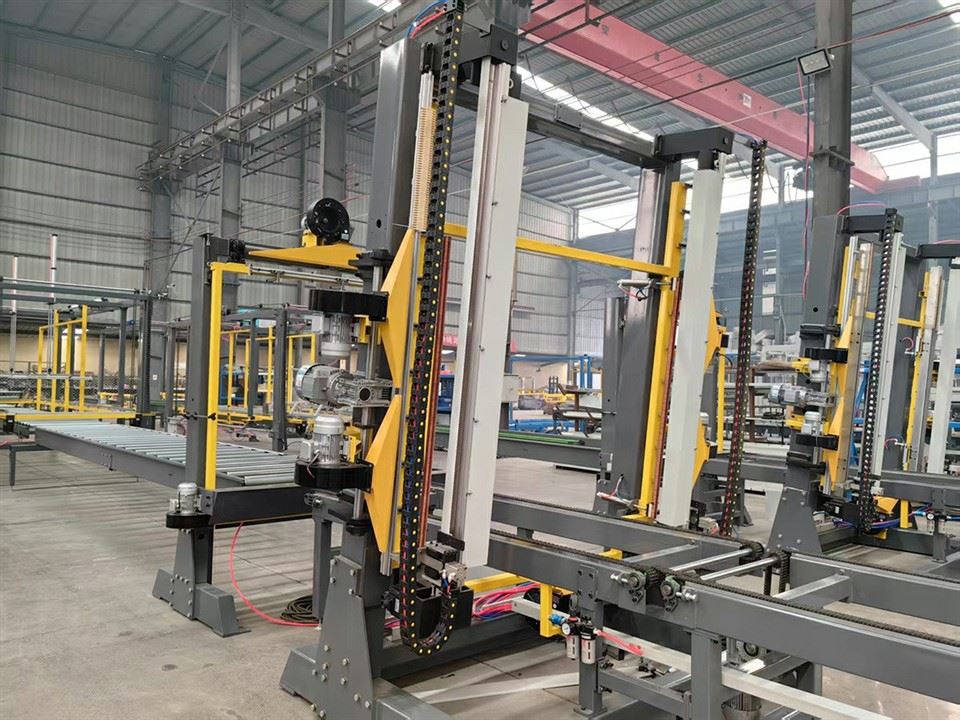

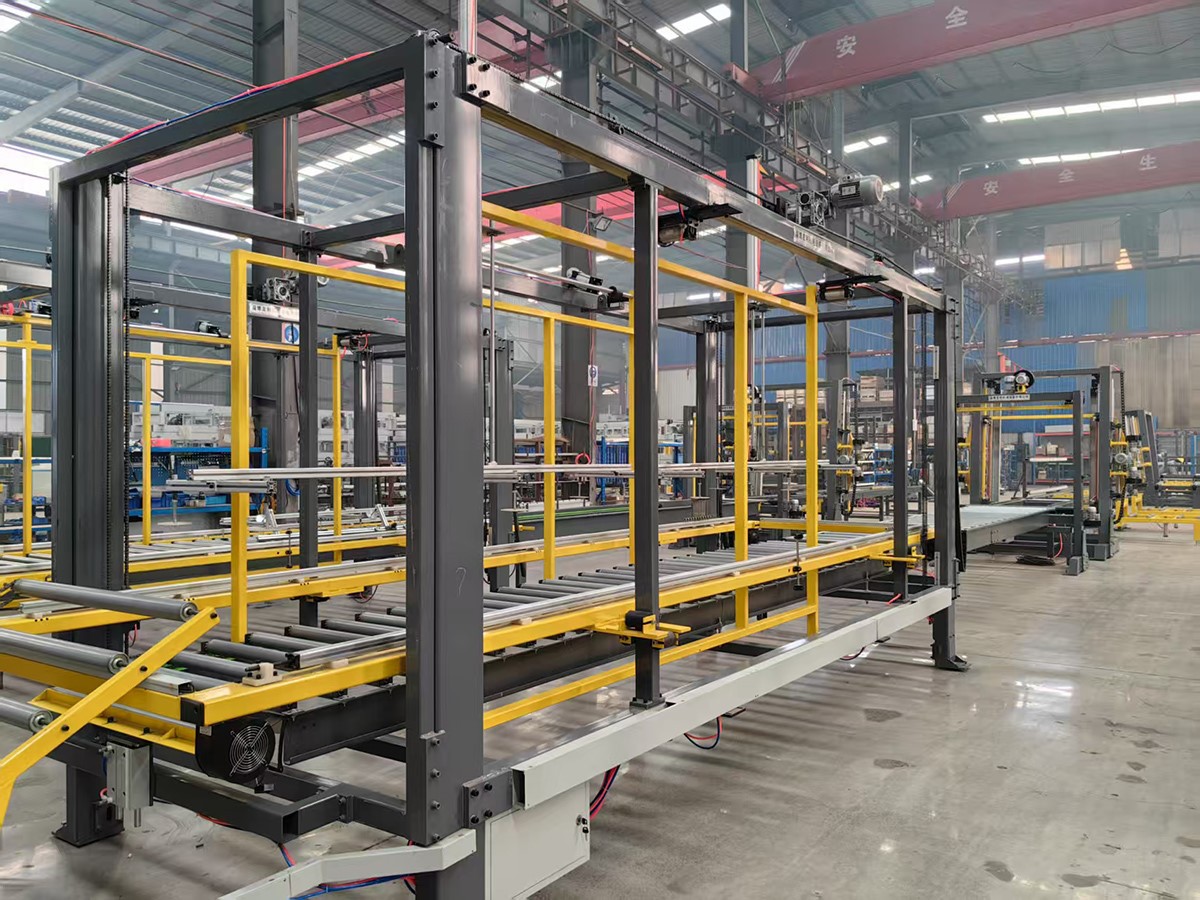

Vertical & Horizontal EPS Cutter

1. High-Efficiency Continuous Workflow
Uninterrupted Production: Unlike batch cutters, the continuous line utilizes a synchronized conveyor system. Blocks are fed at one end and emerge as finished, stacked plates at the other, eliminating the downtime associated with manual loading and unloading.
Synchronized Multi-Axis Cutting: The machine integrates horizontal, vertical, and cross-cutting stations into a single automated sequence, allowing for the simultaneous processing of multiple blocks.

2. Advanced PLC & Motion Control
Centralized Intelligence: Powered by an industrial-grade PLC (e.g., Mitsubishi or Schneider) with a user-friendly HMI touchscreen. This allows operators to store hundreds of cutting "recipes," enabling rapid product changeovers with zero mechanical adjustment.
Precision Servo Integration: High-resolution servo motors and digital encoders ensure a positioning accuracy of ±0.5mm, maintaining strict dimensional tolerances required for EIFS and SIP panels.

3. Smart Thermal & Wire Management
Automatic Temperature Regulation: The PLC dynamically adjusts the heating voltage of the alloy wires based on the conveyor speed and material density. This prevents "kerf" (melting width) variance and ensures a mirror-smooth surface finish.
Automatic Wire Setting: Many high-end models feature motorized wire positioning, where the PLC automatically spaces the wires according to the digital input, drastically reducing setup time and human error.
4. Waste Reduction & Sustainability
Integrated Scrap Recovery: Features automated side-trimming crushers and vacuum extraction. Off-cuts are immediately granulated and conveyed back to the recycling silos, maintaining a clean factory environment and reducing raw material waste.
Optimized Nesting: The control software calculates the most efficient cutting patterns to maximize the yield from every EPS block.
5. Industrial Durability & Safety
Heavy-Duty Construction: Built with a reinforced, stress-relieved steel frame to ensure long-term alignment and vibration-free cutting during 24/7 operation.
Comprehensive Safety Suites: Includes CE-compliant safety features such as light curtains, emergency stop interlocks, and wire-breakage sensors that automatically halt the line to prevent material damage.
