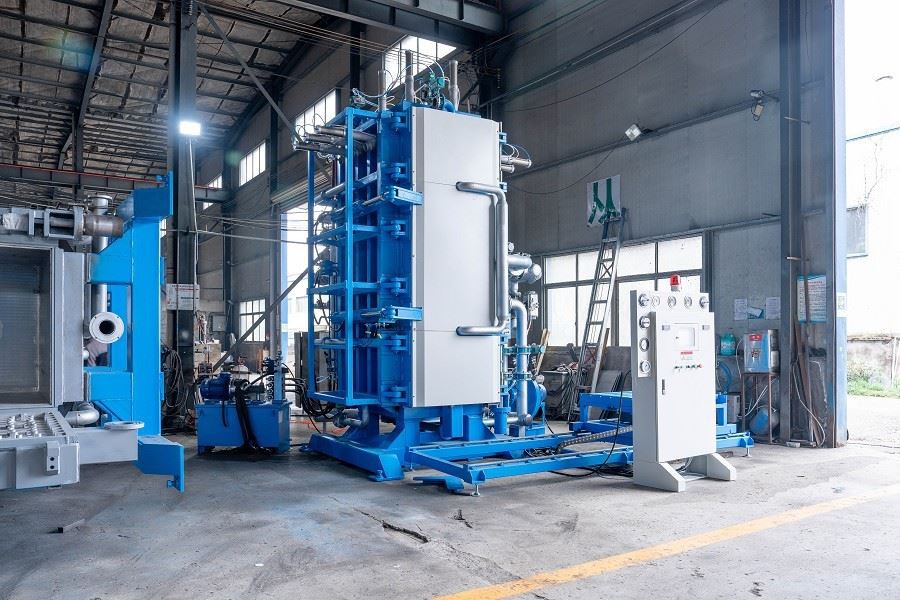

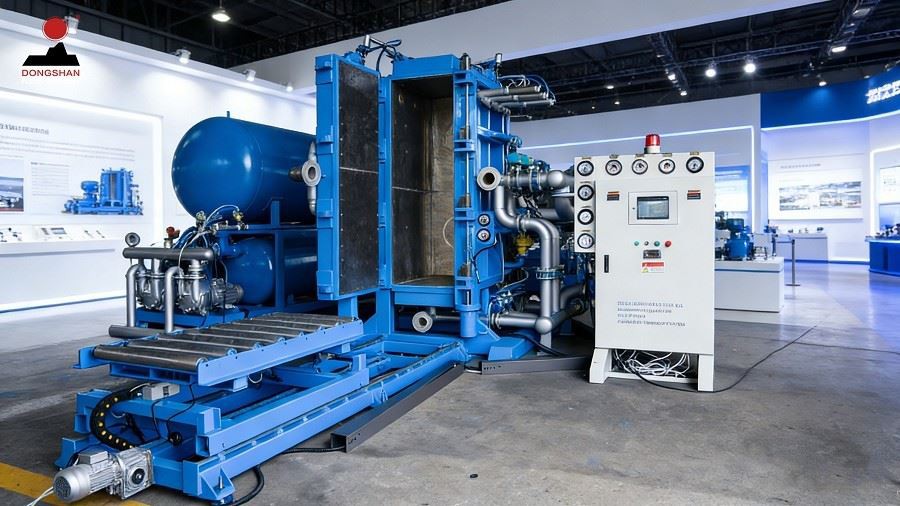

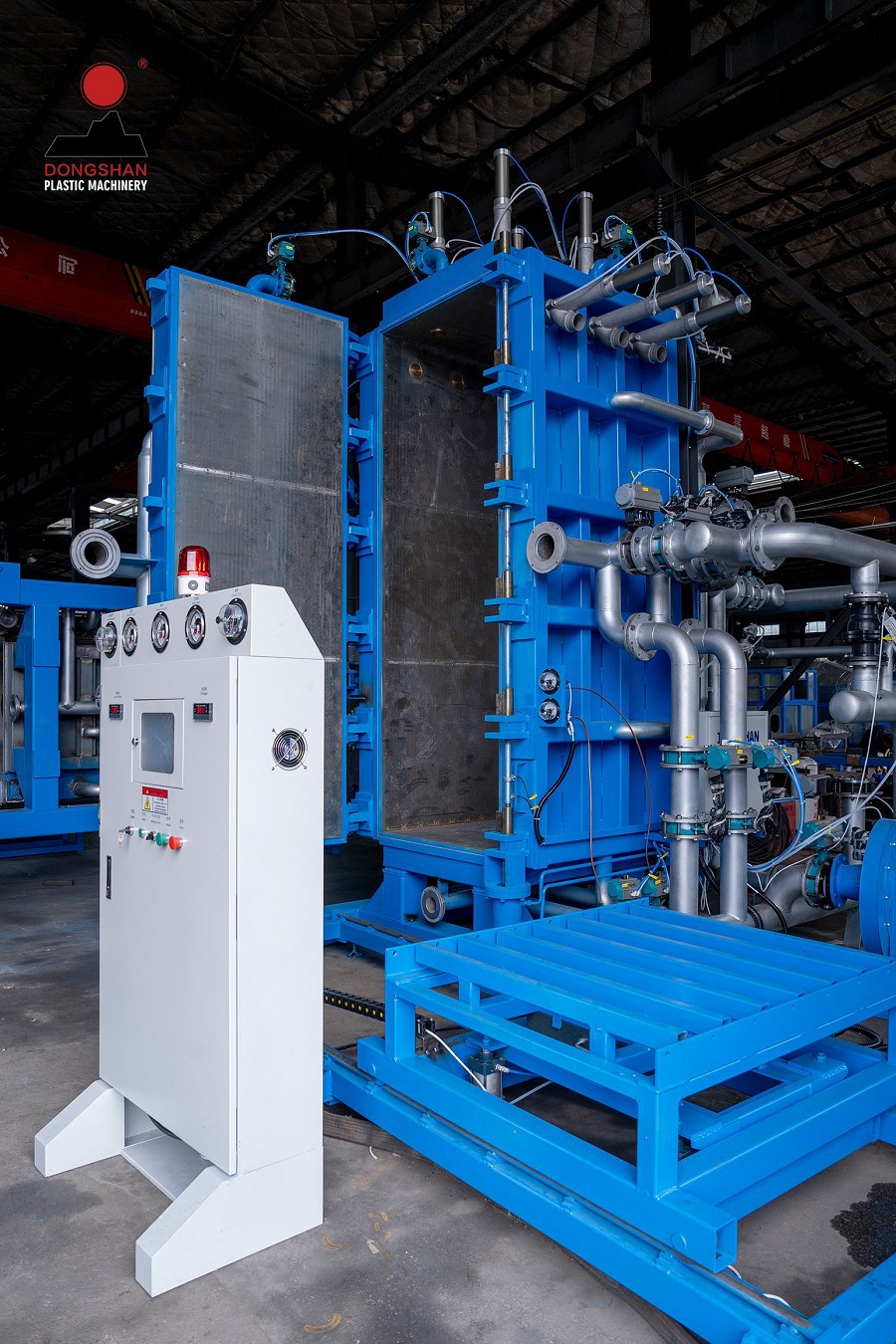

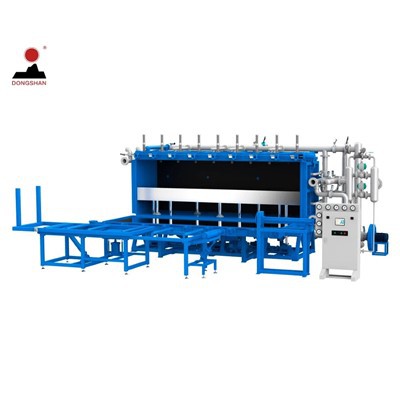

Styrofoam Making Machine

SPB3000
Moukd cavty Sze: 3060×1240×1030 mm
Block slze(12gL): 3000×1200×1000 mm
Prodce time/Cjcla(16gL): 4-5 minigycke
Corneched LoadPower: 1530 KW
Overall Dimenslon(LxW×H0): 6700×4600×5100 mm
Waigt: 14800 KG

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of styrofoam making machine in China, also supports customized service with low price. Welcome to wholesale high quality styrofoam making machine for sale here from our factory. Contact us for pricelist.

Stable Performance Styrofoam Making Machine for High-Standard EPS insulation Panels production

The Stable Performance Styrofoam Making Machine is specifically used to produce high-quality EPS insulation panels manufacturing, with consistent density, excellent structural strength, and reliable acoustic performance. Built with advanced molding technology and precision control systems, this machine ensures stable operation and uniform product quality, making it an ideal solution for manufacturers in the construction and insulation industries.

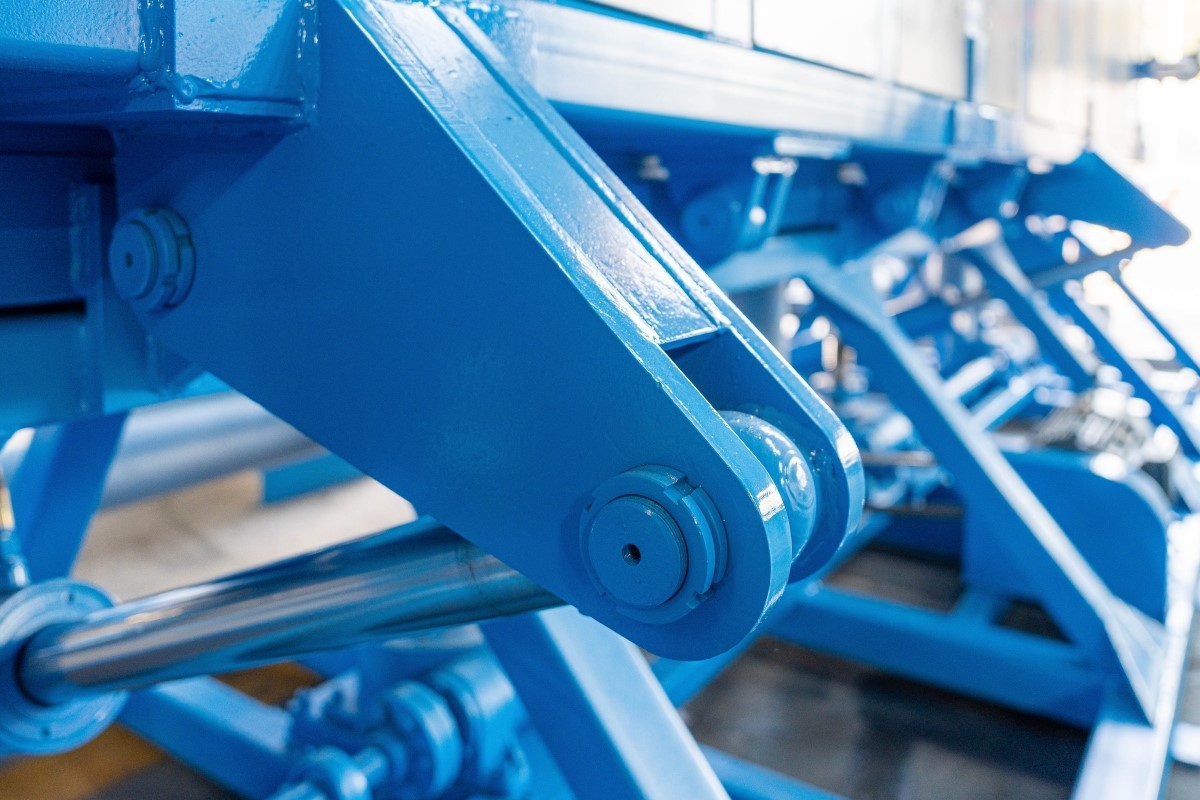

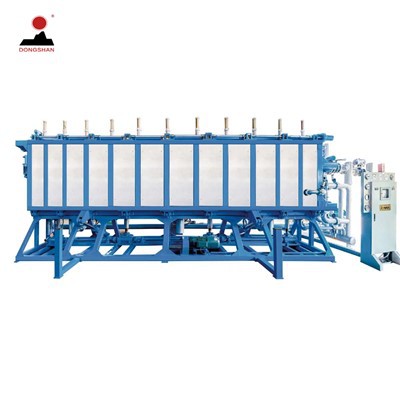

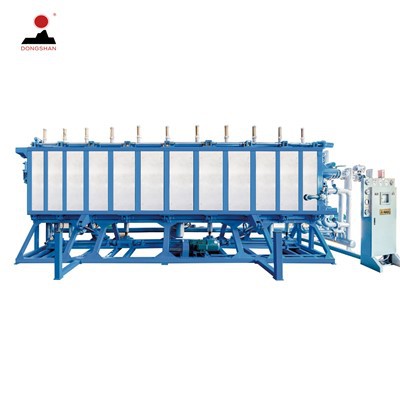

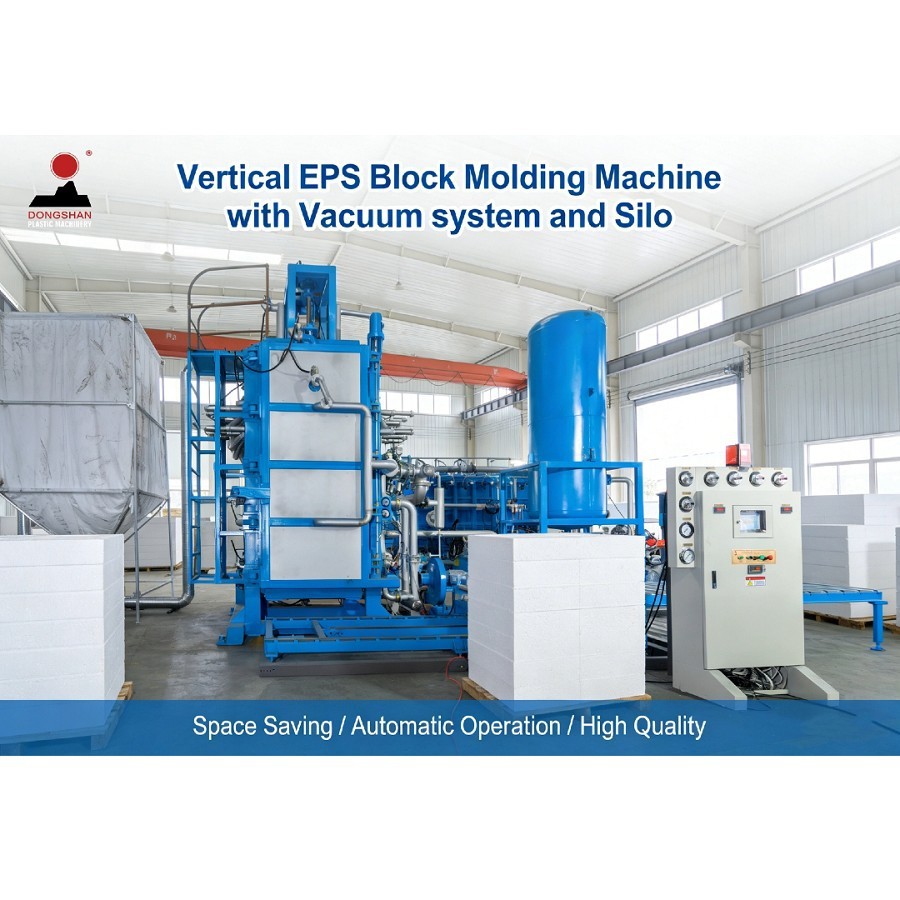

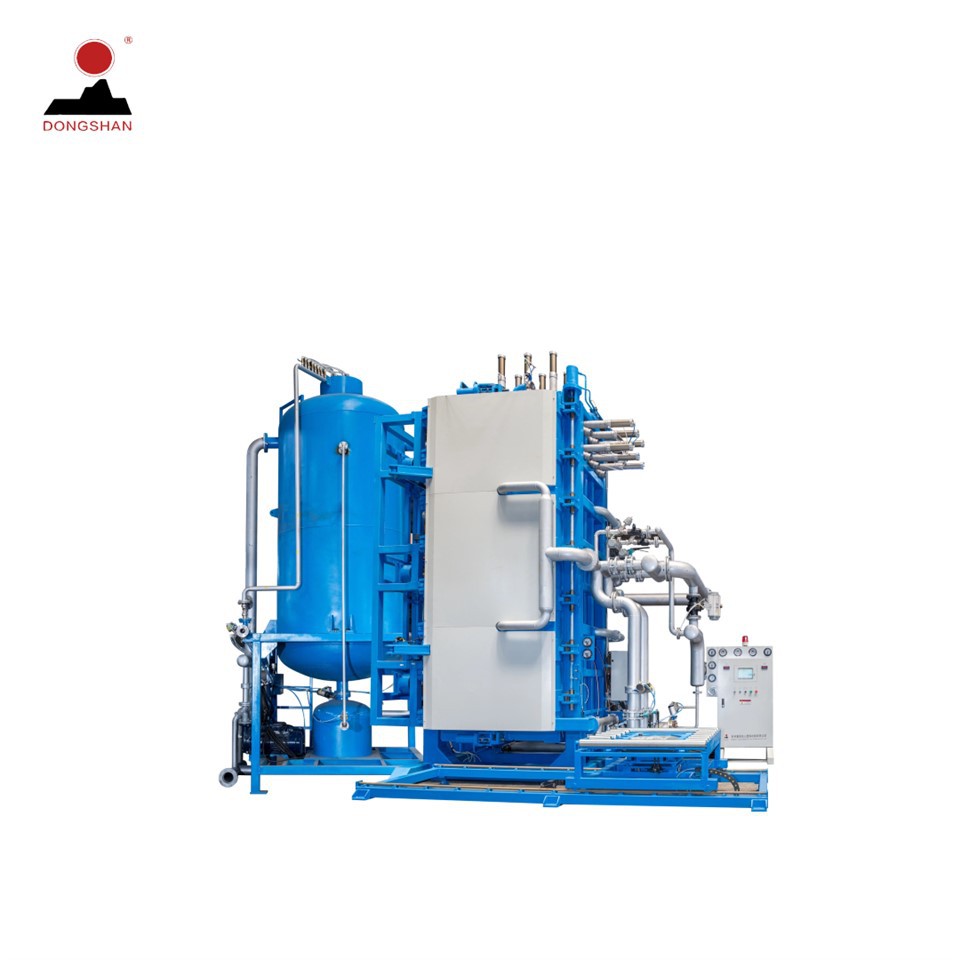

Boasting a heavy-duty construction and an optimized steam system, this vertical vacuum EPS block molding machine ensures stable, efficient, and high-quality block forming. Its sturdy frame is constructed from welded high-strength rectangular tubes and steel plates, while the inner molds are subjected to electric furnace stress-relief annealing-this process enhances both structural strength and operational safety. Every mold frame undergoes heat treatment to eliminate welding stress, which effectively prevents deformation and guarantees consistent performance over long-term use. Following heat treatment, the surfaces are sandblasted to boost rust resistance and coating adhesion, delivering superior corrosion protection and extending the machine's service life.

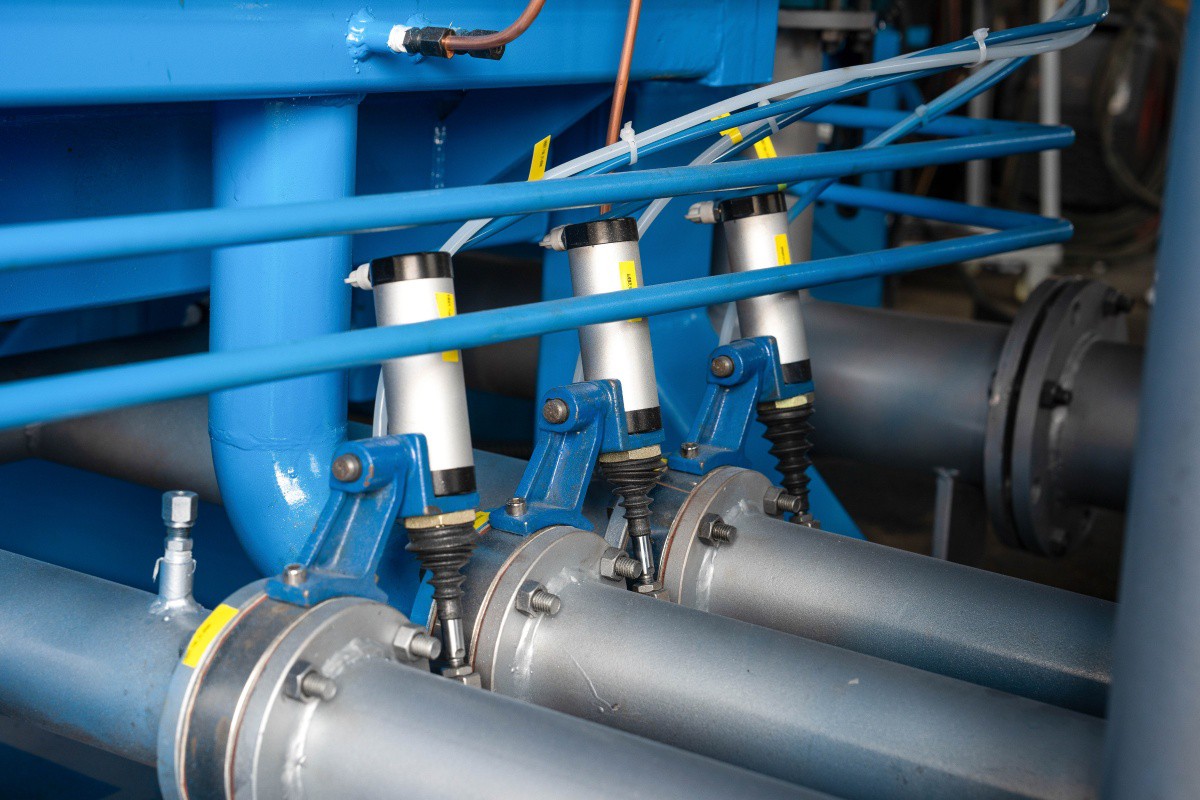

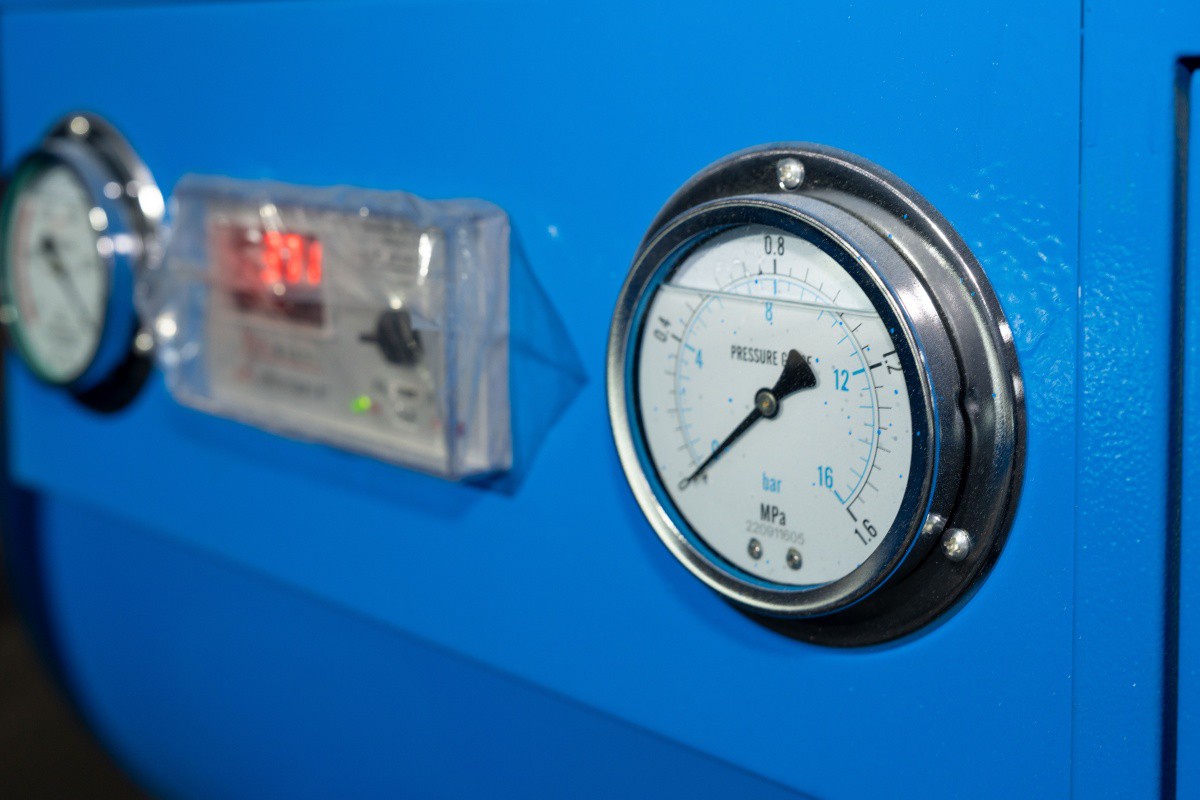

Safety is prioritized with the installation of 3 sets of German gauges and safety valves, and the machine has successfully passed multiple water pressure and steam tests to ensure reliable and stable operation. The advanced steam system significantly boosts efficiency: three ball valves reduce steam consumption by 20% when compared to a single large valve. Equipped with ISO-standard butterfly valves, the system operates more stably and durably. Its 3D heating design ensures uniform heat distribution, reducing heating time and achieving energy savings. Additionally, the stainless steel platen offers excellent wear resistance and high-pressure tolerance, making it suitable for high-density block production and further prolonging the machine's service life.

Performance description

Superior Blocks: Vertical mold ensures uniform steam flow, lowering moisture, speeding curing, and improving density-boosting downstream quality.

Energy & Output: Optimized heating/cooling cuts steam use and cycle time; reduces costs, raises hourly output vs. horizontal models.

Precise Sizing: Vertical platen adjustment enables ±1mm accuracy, minimizing waste and ensuring batch consistency. Recycling Ready: Handles more recycled materials with stable quality via uniform vertical pressure, supporting green production.

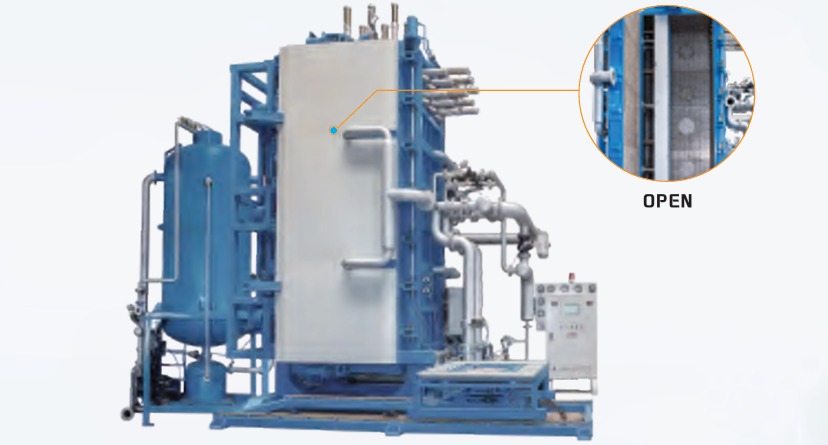

product-828-445

Core Advantages

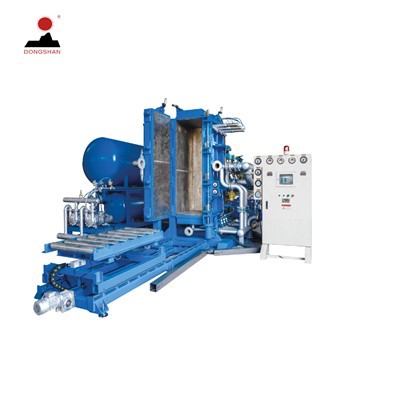

As a new generation of block forming technology, the EPS vertical adjustable block molding machine surpasses horizontal models in efficiency, precision, and sustainability, boasting multi ple prominent advantages.

Design Features

Space-Saving: Compared with horizontal models, it occupies a smaller area, making it suitable for factories with limited space. Moreover, the vertical structure facili tates material flow and steam circulation.

Intelligent System

Upgraded Intelligent Management and Control: Equipped with an intelligent PLC system, it provides real-time production data visualization, predictive mainte nance alerts, and an improved fault self-diagnosis func tion, reducing downtime and making operation more convenient.

Technical Specifications

Item		Unit	DSVA2000	DSVA3000	DSVA4000	DSVA6000	DSVA8000
Moukd cawity Size		mm	2080×(1240-800)×630	3080×(1240-800)×630	4100×(1240-800)×630	6120×(1240-800)×630	8140×1240×630
Block SLe		mm	2000×(1200-800)×600	3000×(1200-800)×600	4000×(1200-800)×600	6000×(1200-800)×600	8000×1200×600
Sleam	Entry	nchímm)	5"DN125)	5*(DN125)	6"DN150)	8"(DN200	8"(DN2000
	Consumpflon	kgigyce	25-45	45-65	60-8	95-120	115-160
	Pressure	Ma	0.6-0.8	0.6-0.8	0.6-08	0.5-0.8	0.6-0.8
Comprassed Ar	Entry	nchímm)	1.5"(DN40)	1.5*(DN40)	2*(DN50)	2.5"(DNG5	3"(DN80
	Consumpien	m²cycle	1.5-2	1.5-2.5	1.8-25	2-3	2.5-3
	Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-08	0.5-0.8	0.6-0.8
Vacuum Coolng Water	Entry	hnchímm)	1.5"DN40)	1.5*(DN40)	1.5*(DN40)	1.5"(DN40	1.5"{DN40)
	Consumpfton	m²cycle	0.4	0.6	0.8	1	2
	Pnessure	Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Dralnage	VacuumVent	inchímm)	4*(DN100)	5"(DN125)	5"(DN125	5"(DN125)	5"(DN125)
	Sleam Vent	nchímm)	4*(DN100)	6*(DN150)	6*(DN150)	8"(DN2000	8*(DN200)
	Ar Coolng Vent	nchímm)	4*(DN100)	5"(DN125)	6*(DN150)	8"(DN2000	8"(DN200)
Capacty@15kgm²		minkcyce	4	6	7	8	8
Connoched LoadPower		KW	20135	20735	25140	29151	3155
Ovaral Dimernslon(L×W×H)		mm	5700×4000×3300	7200×4000×3500	11000×4500×3500	12600*4500×3500	15700*4600×3500
Walght		KG	9600	11400	18000	21600	23200
