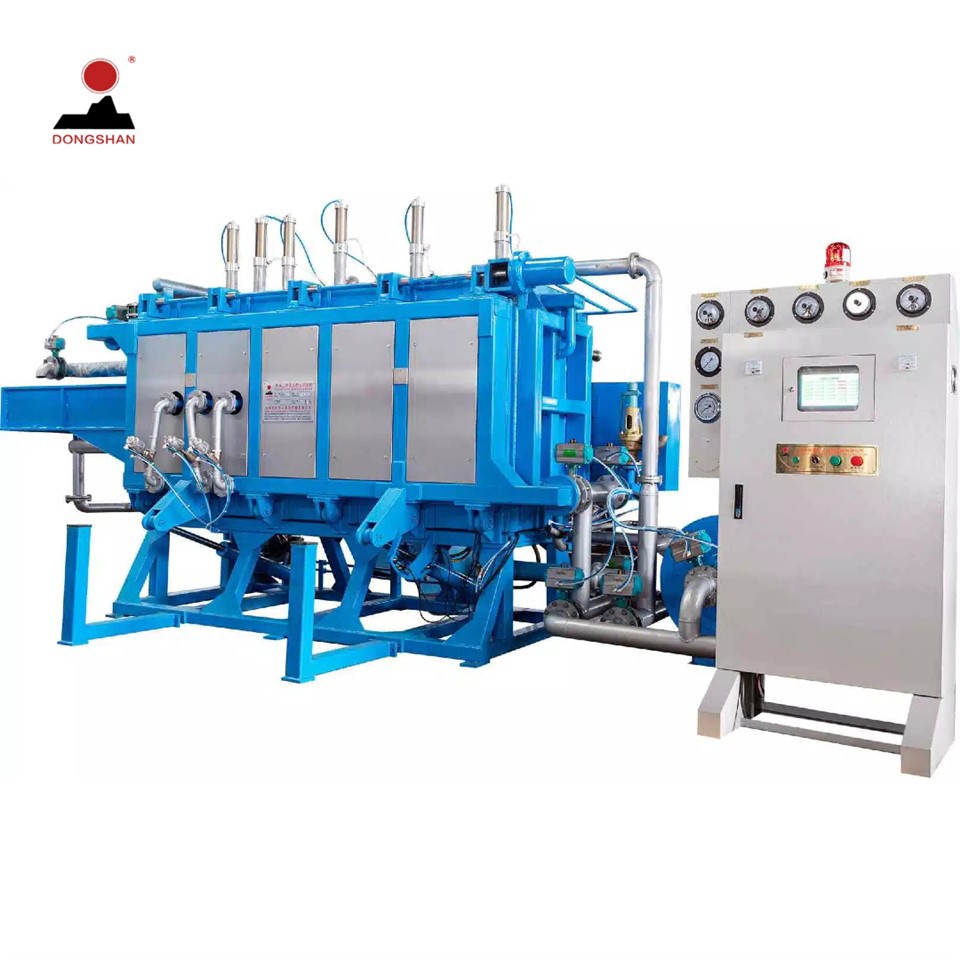

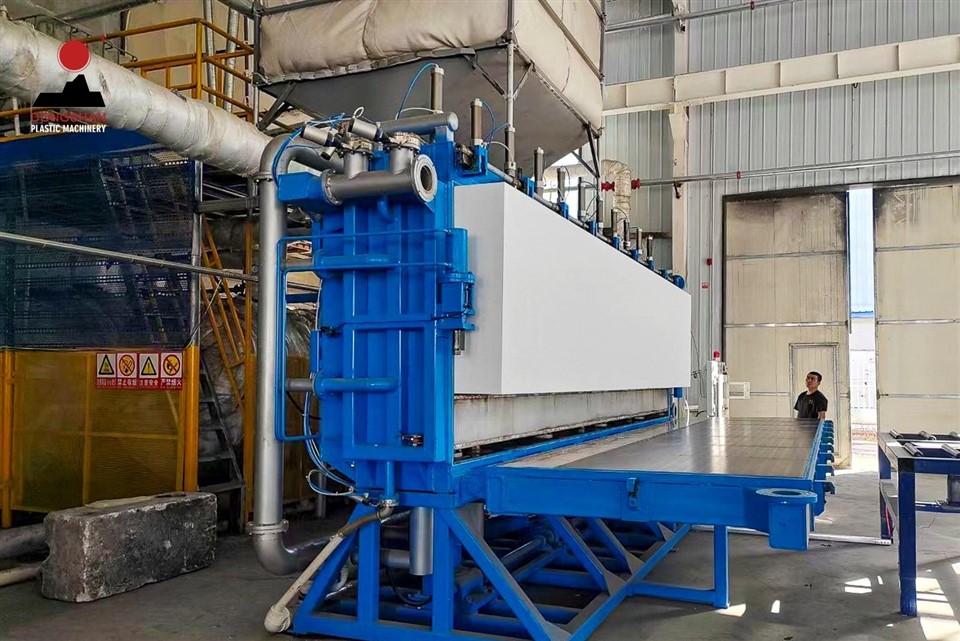

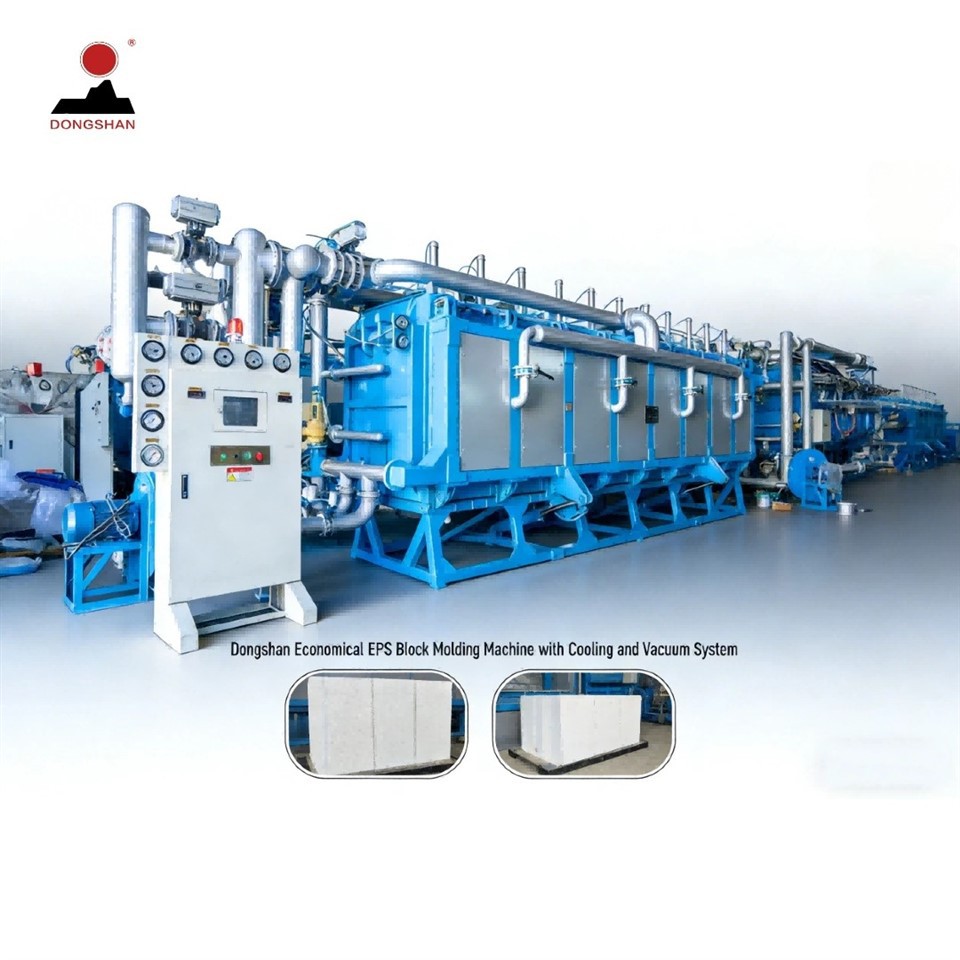

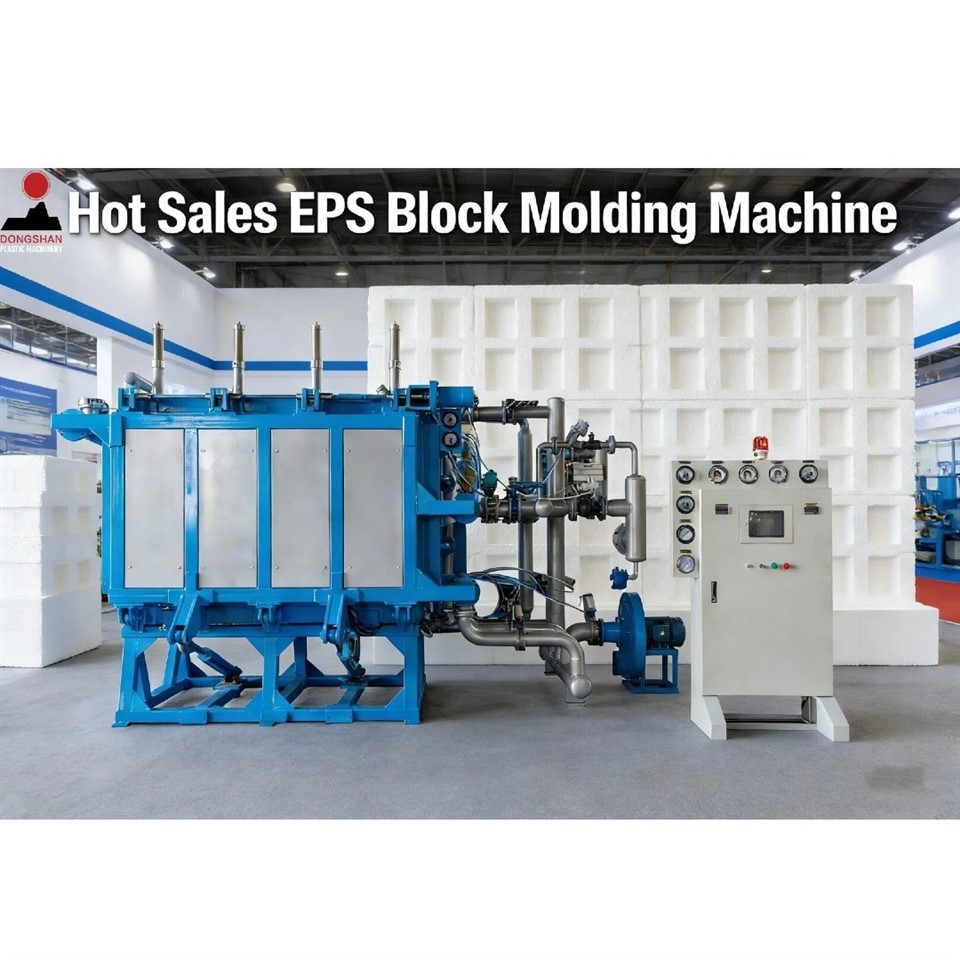

EPS Insulation Boards Forming Machie

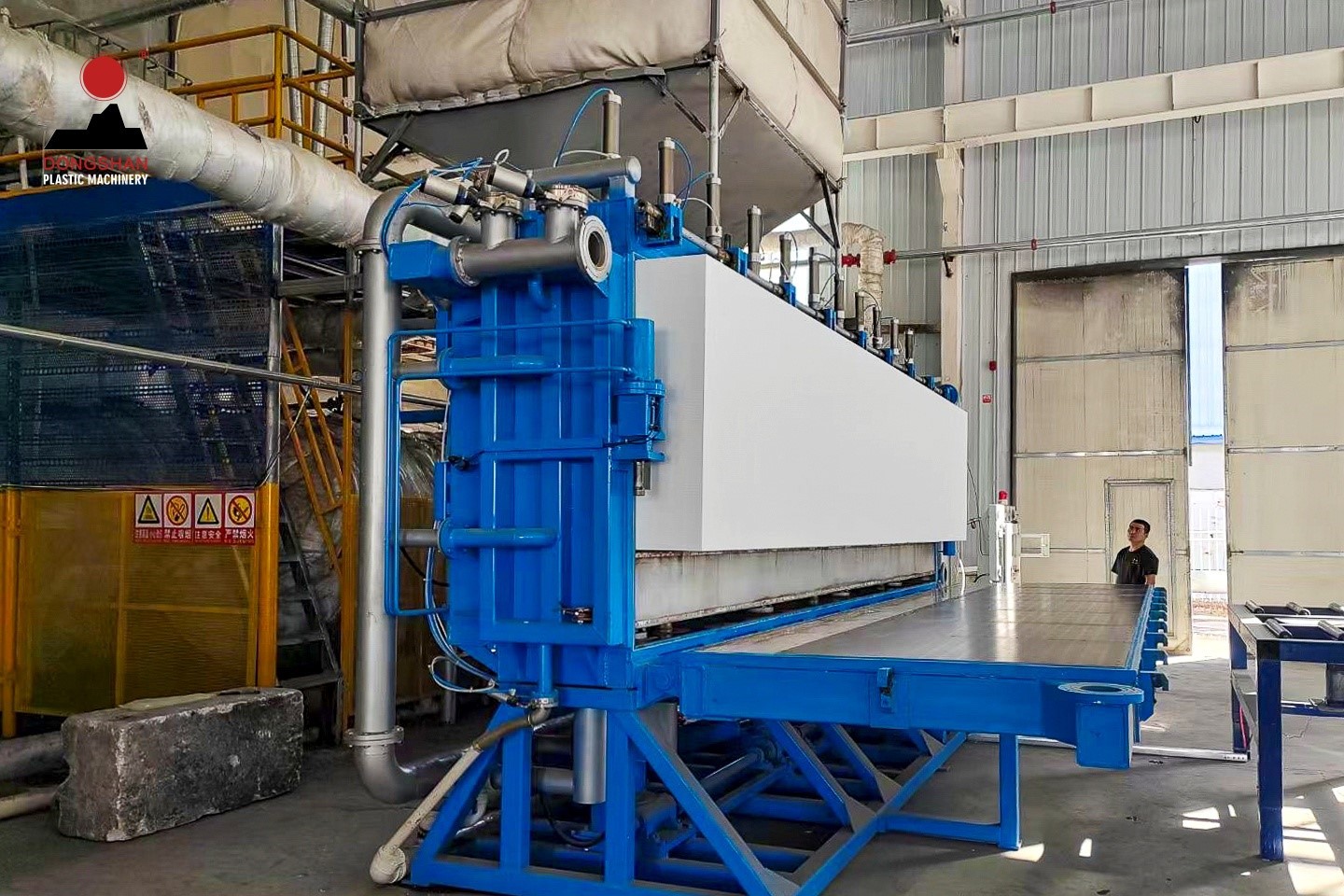

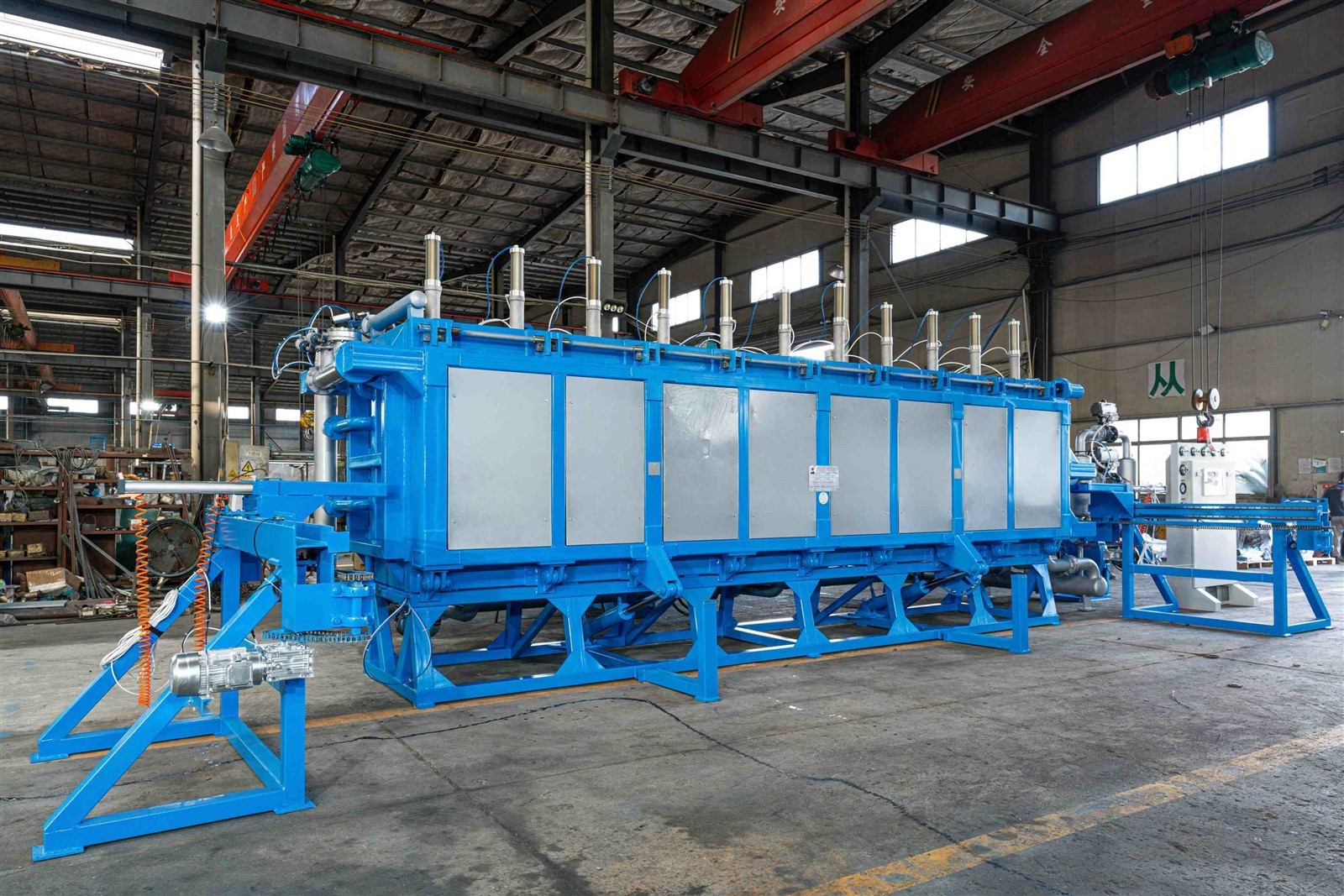

Horizontal Height Adjustment EPS Block Molding Machine
DSBHA3000
Total Power: 30kw
Capacity: 4-6min/cycle
Weight:6500kg

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps insulation boards forming machie in China, also supports customized service with low price. Welcome to wholesale high quality eps insulation boards forming machie for sale here from our factory. Contact us for pricelist.

High-Speed EPS insulation boards forming machine with PLC Control for Large-Scale Insulation Factories

The High-Speed EPS Insulation Boards Forming Machine with PLC Control is a modern and efficient solution designed for large-scale insulation board manufacturing. Engineered with advanced automation technology, this machine provides high productivity, stable operation, and consistent product quality, making it an ideal choice for professional EPS insulation factories.

Advantages

The EPS block molding Machine is engineered for the production of fixed-size EPS blocks, with customizable configurations to meet a wide range of production requirements. Its main structure is fabricated from high-strength square tubes and thick steel plates, ensuring exceptional rigidity, durability, and long-term operational stability.
To enhance structural performance, the machine is equipped with 5 mm Teflon-coated aluminum steam plates, supported by a reinforced substructure with increased support density. This design effectively resists deformation under high-pressure conditions, ensuring that the aluminum plates remain distortion-free even after 10 years of continuous operation. Additionally, all six panels undergo heat treatment to eliminate welding stress, guaranteeing dimensional stability even in high-temperature working environments.
For optimized production efficiency and superior block quality, the machine features an advanced steam distribution system with additional steam lines, enabling uniform steaming and excellent bead fusion. The optimized drainage system significantly accelerates moisture removal, reducing drying time and shortening the waiting period before cutting.

The integration of an intelligent piping system and a precisely controlled steaming process ensures consistent and perfect fusion across both high-density and low-density EPS blocks. A high-speed filling system combined with a high-efficiency vacuum system further enhances productivity, allowing each block to be completed within just 4–8 minutes.
The hydraulic pump-controlled ejection system ensures synchronized and stable movement of all ejectors, improving operational reliability and product consistency. For enhanced durability, the machine surface undergoes a comprehensive treatment process, including rust removal, sandblasting, anti-rust priming, and topcoat painting, providing excellent corrosion resistance.
To ensure long-term performance and reliability, most key components are sourced from internationally recognized brands, delivering stable operation, reduced maintenance, and extended service life.

Features

Stress-Relieving & Non-Deforming Frame
High-Strength Structure
Superior Anti-Corrosion Protection

Multi-Level Safety System
20% Steam Savings
Fully Automatic PLC Control

Advantages

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Efficient Production

It has a high production efficiency and can produce a large quantity of EPS foam sheets in a short time to meet the large-scale market demand.

Stable Quality

The advanced production process and precise control system ensure the stable quality of the sheets. The cell structure is uniform and fine, and performance indicators such as the density and strength of the sheets meet high standards.

Energy Saving and Consumption Reduction

The adoption of energy-saving heating and foaming technologies effectively reduces energy consumption and production costs, and also conforms to the development trend of environmental protection and energy conservation.

High Flexibility

According to different customer needs, the production parameters can be adjusted to produce EPS foam sheets of different thicknesses, densities, and specifications to adapt to diverse application scenarios.

Easy Operation

The operation interface of the equipment is user-friendly, making it easy for workers to operate and maintain. It reduces the technical requirements for operators and improves the convenience of production.

Technical Specifications

ltem		Unit	DSBHA2000	DSBHA3000	DSBHA4000	DSBHA5000	DSBHA6000	DSBHA8000
Moukd cwvity Slze		mm	2040×1020×1030	3060×1240×1030	4080×1240×1030	5100×1240×1030	6120×1240×1030	8140×1240×1030
Block Sze		mm	2000×1200×1000	3000×1200×1000	4000×1200×1000	5000×1200×1000	6000×1200×1000	8000×1200×1000
Sneam	Enty	inchímm)	4*[DN100	5"(DN125)	8"(DN200	8"(DN2000	8"(DN2000	8"(DN200)
	Corsumptian	kgicycke	22-40	25-45	40-5	75-100	75-100	95-140
	Prassue	Ma	0.6-0.8	06-0.8	0.6-08	0.6-0.8	0.6-0.8	0.6-0.8
Copressed Alr	Enty	inchímm)	2"(DN50)	2"(DNS50)	3"(DN80)	3"(DN80	3"(DN800	3"(DNA80)
	Corsumplon	m²cycse	1.5-2	1.5-2.5	1.8-25	2-3	2-3	2.5-3
	Prassure	Ma	0.6-08	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Vanum Cooling Wianr	Enty	inch/mm)	1.5"(DN40)	1.5"(DN400	1.5*(DN40)	1.5*(DN40	1.5"(DN40)	1.5*(DN40)
	Corsumptian	micycke	0.4	0.6	0.8	1	1	2
	Prassure	Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Dralnag	VacumVant	inchímm)	4"(DN1000	5"(DN125)	5"(DN125	5"(DN125)	5"(DN125)	5"[DN125]
	stoam Vant	inchímm)	4"(DN100)	5"(DN125)	6"(DN150)	8"(DN2000	8"(DN2000	8"(DN200)
	AIr Cocdlng Vent	Inchímm)	4"(DN100)	5"(DN125)	6"(DN1501	8"(DN2000	8"(DN2000	8"(DN200)
Capacity @15kglm²		minkcyce	3	4	5	5	6	8
CornochedLoadPowar		KW	15/30	15/30	20/35	22/40	24/46	26/50
neral Dimansion0×W×H0		mm	5700×4000×2800	7200×4500×3000	11000×4500×3000	1180×4500×3100	12600×4500×3100	15700×4600×3500
Waigt		KG	5000	6500	8000	10000	12000	6000
