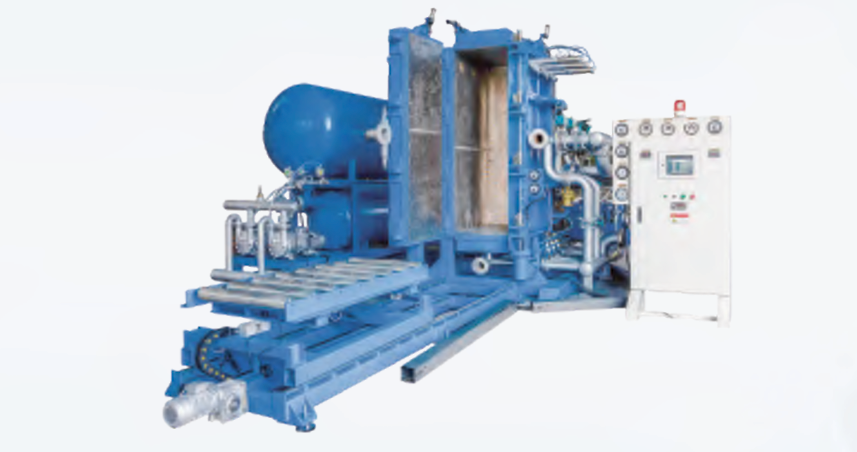

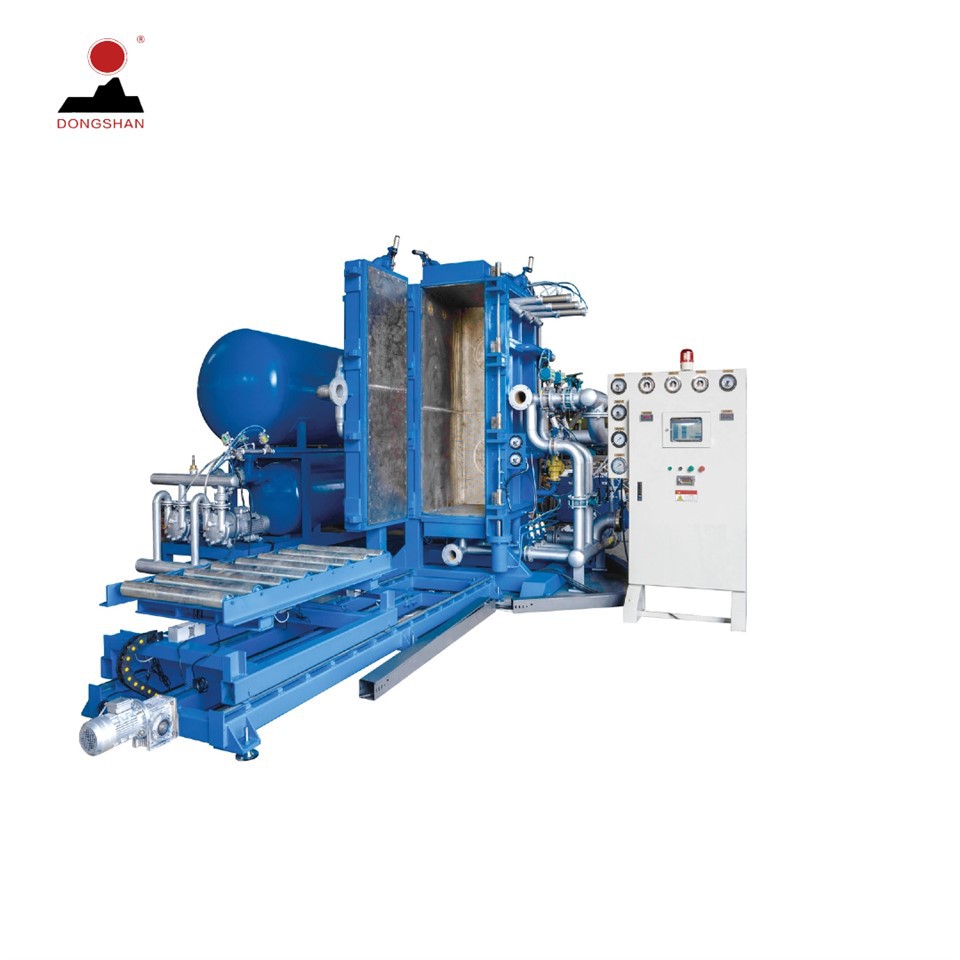

Adjustable Block Molding Machine
Moukd cavty Sze: 2040×1240×1030 mm
Block slze(12gL): 2000×1200×1000 mm
Prodce time/Cjcla(16gL): 4-5 minigycke
Corneched LoadPower: 1530 KW
Overall Dimenslon(LxW×H0): 6700×4600×4100 mm
Waigt: 12200 KG
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of adjustable block molding machine in China, also supports customized service with low price. Welcome to wholesale high quality adjustable block molding machine for sale here from our factory. Contact us for pricelist.

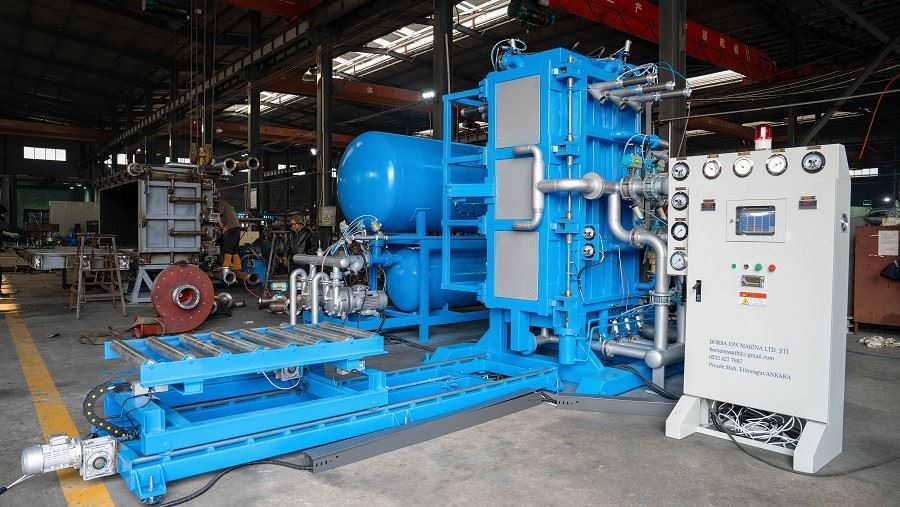

Adjustable Size Vertical EPS Block Molding Machine for Versatile Foam Block Production Requirements
The Adjustable Size Vertical EPS Block Molding Machine offer a highly flexible and efficient solution to meet diverse foam block production requirements. Engineered with advanced molding technology and a robust vertical structure, it enables manufacturers to produce EPS foam blocks in various sizes with precision, consistency, and high productivity. It is widely used in industries such as construction insulation, packaging materials, and industrial foam applications.

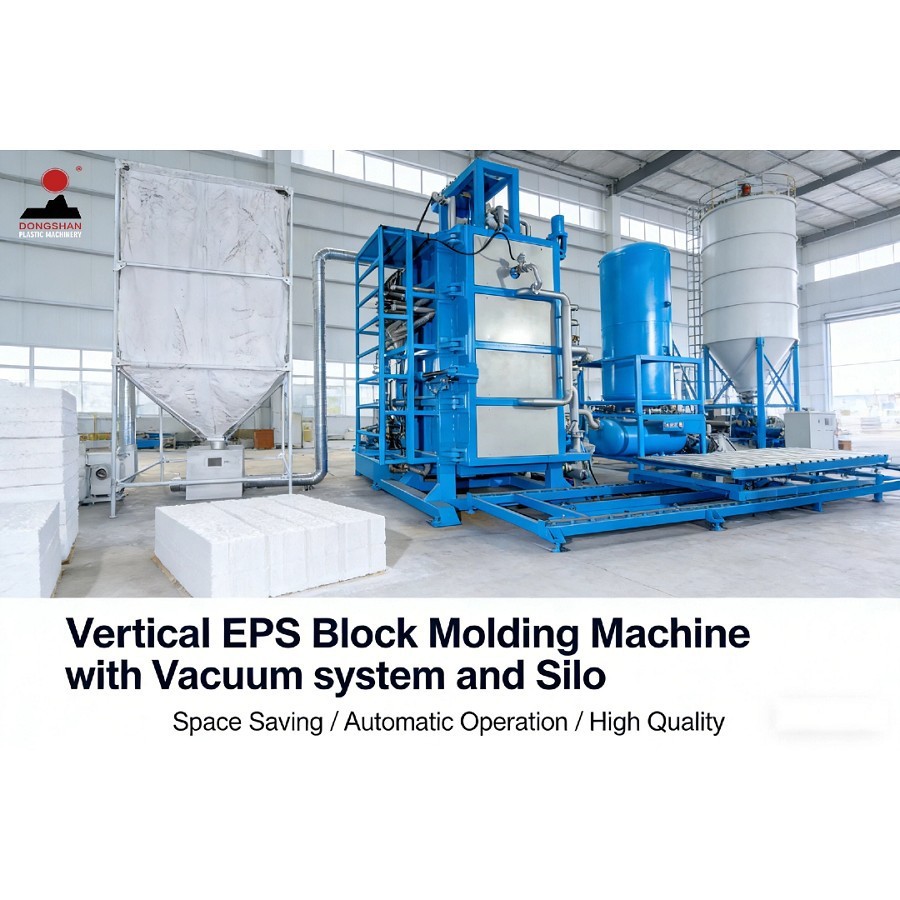

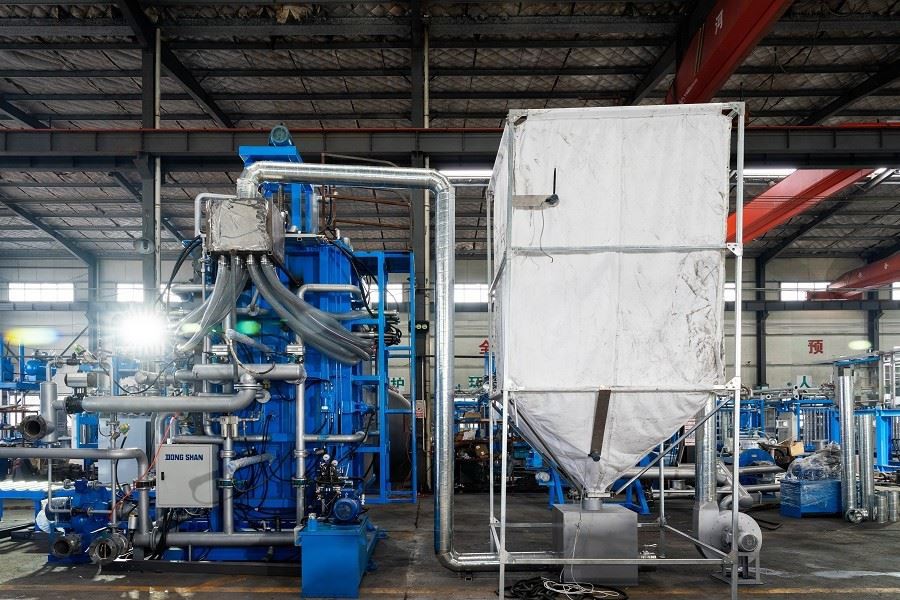

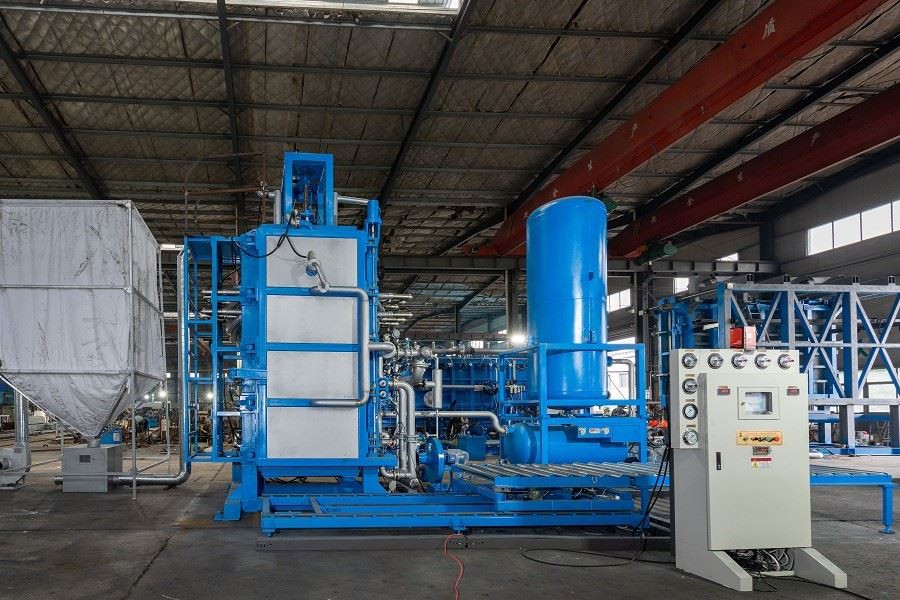

The Vertical EPS Vacuum Block Molding Machine is designed for high-precision, efficient, and space-saving production of EPS panels and blocks across various industries.
Superior Forming Quality: Vertical structure ensures better drainage and uniform steam circulation, resulting in EPS blocks with significantly lower moisture content than horizontal models. Blocks also feature more uniform density, enabling smoother cutting and enhanced construction quality.
Energy Efficiency & Productivity: Optimized steam and cooling channels shorten cycle time, reducing steam and energy consumption compared to horizontal models while boosting productivity.
Precise Size Flexibility: Advanced platen adjustment system allows faster, more accurate block size changes, minimizing edge waste and improving raw material utilization.
Design Features
Space-Efficient Layout: Vertical design occupies less floor space with a more compact structure, ideal for factories with limited workshop areas.
Intelligent System
Smart Control & Monitoring: Equipped with PLC system and touch screen operation, supporting remote monitoring and automatic fault alarms to ensure smooth production and minimize downtime.
Environmental Adaptability
Recycled Material Compatibility: Maintains molding quality while accommodating a certain proportion of recy cled materials, supporting green and sustainable produc tion.
Key Features
Space-Saving Vertical Design
Compact structure reduces floor space while ensuring stable operation and easy maintenance.
High-Performance Vacuum System
Rapid air extraction improves fusion quality, eliminating bubbles and gaps for higher product qualification rates.
Full Automatic PLC Control
Intelligent system with touchscreen enables fully automated cycles, including feeding, heating, vacuuming, cooling, and demolding-reducing labor and increasing efficiency.
Strong & Durable Structure
Made from high-quality, heat-treated steel, ensuring high rigidity and long-term stability under continuous high-pressure operation.
Flexible Production Capability
Adjustable temperature, pressure, and vacuum parameters allow adaptation to different materials and product specifications.
Energy-Saving Operation
Optimized design reduces power and air consumption, lowering operating costs.
Safe & Reliable Performance
Equipped with safety interlock systems and compliant with international industrial standards.
Technical Specifications
| Item | Unit | DSVB2000 | DSVB3000 | DSVB4000 | DSVB5000 | DSVB6000 | DSVB8000 | |
| Moud cavity Slze | mm | 2040×1240×1030 | 3080×1240×1030 | 4080×1240×1030 | 5100×1240×1030 | 6120×1240×1030 | 8140×1240×1030 | |
| Block SLe | mm | 2000×1200×1000 | 3000×1200×1000 | 4000×1200×1000 | 5000×1200×1000 | 6000×1200×1000 | 8000×1200×1000 | |
| Sleam | Entry | nchímm) | 4*(DN100) | 5"(DN125) | 8"(DN200) | 8"(DN200) | 8"(DN2000 | 8"(DN2000 |
| Consumpfion | kgioycle | 5-25 | 45-65 | 60-85 | 75-100 | 75-100 | 95-140 | |
| Pressure | Ma | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | |
| Entry | nchímm) | 2"(DN50) | 2"(DNS0) | 3"(DN80) | 3"(DN0) | 3"(DN800 | 3"(DN80 | |
| Comprassed Ar | Consumpien | m²cycle | 1.5-2 | 1.5-2.5 | 1.8-25 | 2-3 | 2-3 | 2.5-3 |
| Pressure | Ma | 0.6-0.8 | 0.6-0.8 | 0.6-08 | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | |
| Vacum Coolng Water |
Eny | nchímm | 1.5"(DN40) | 1.5*(DN40) | 1.5*(DN40) | 1.5*(DN40) | 1.5"(DN40) | 1.5"{DN40) |
| Consumpfon | m²cycle | 0.4 | 0.6 | 0.8 | 1 | 1 | 2 | |
| Pressurg | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
| Dralnage | Vacum Vent | nchímm) | 4*(DN100) | 5"(DN125 | 5"(DN125) | 5"(DN125 | 5"(DN125 | 5"(DN125) |
| Slaam Vant | nchímm) | 4*(DN100) | 5"(DN125 | 6*(DN150) | 8"(DN200) | 8"(DN200 | 8"(DN2000 | |
| AIr Coolng Vent | inch{mm | 4*(DN100) | 5"(DN125 | 6*(DN150) | 8"DN200) | 8"(DN200 | 8"(DN2000 | |
| Capacty@15kgim² | minkcycde | 4 | 6 | 7 | 8 | 8 | 8 | |
| Connected LoadlPower | KW | 1530 | 1530 | 2035 | 22/40 | 246 | 26150 | |
| Overal Dimenslon(L×W×H) | mm | 5700×4000×2800 | 7200×4500×3000 | 11000×4500×3000 | 11800×4500×3100 | 12600*4500×3500 | 15700x4600×3500 | |
| Walgh | KG | 6000 | 7800 | 9600 | 12000 | 16800 | 20400 | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
