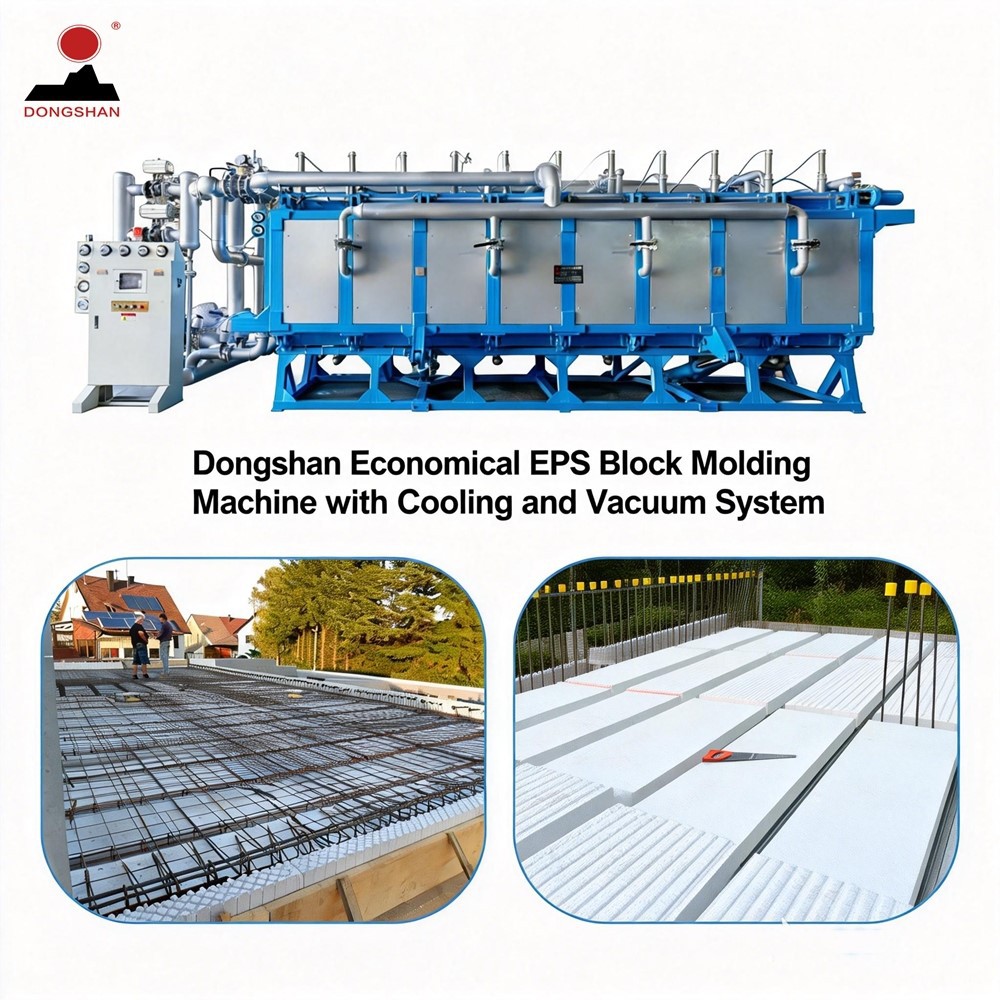

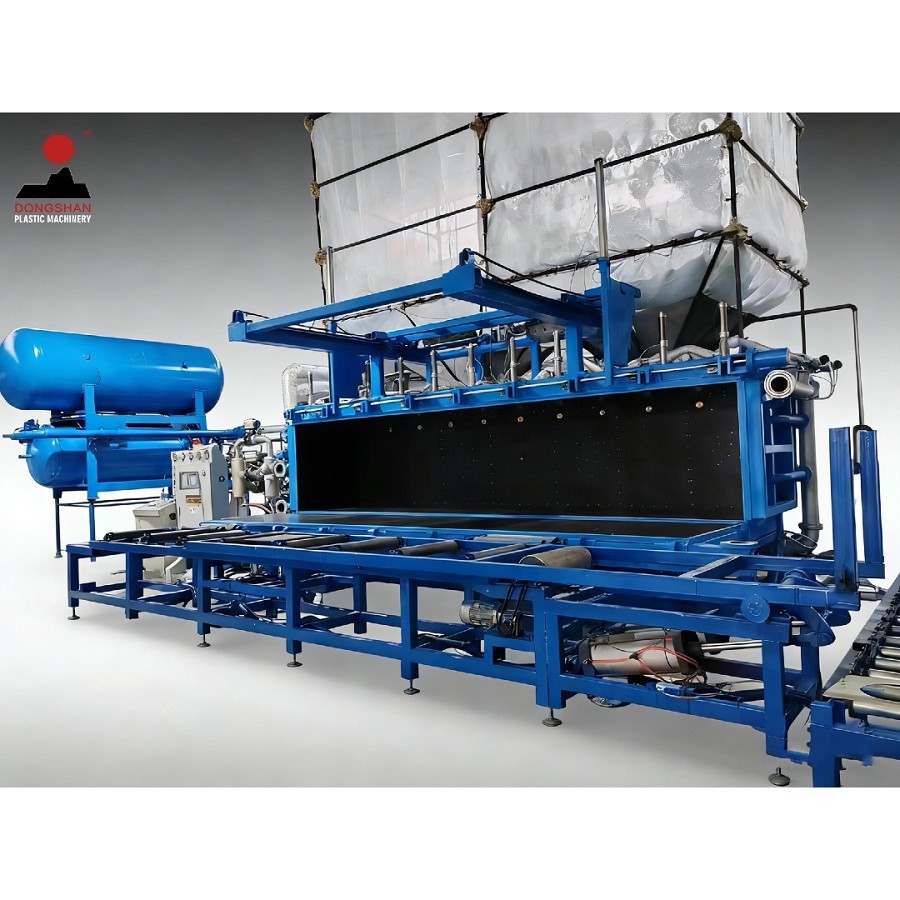

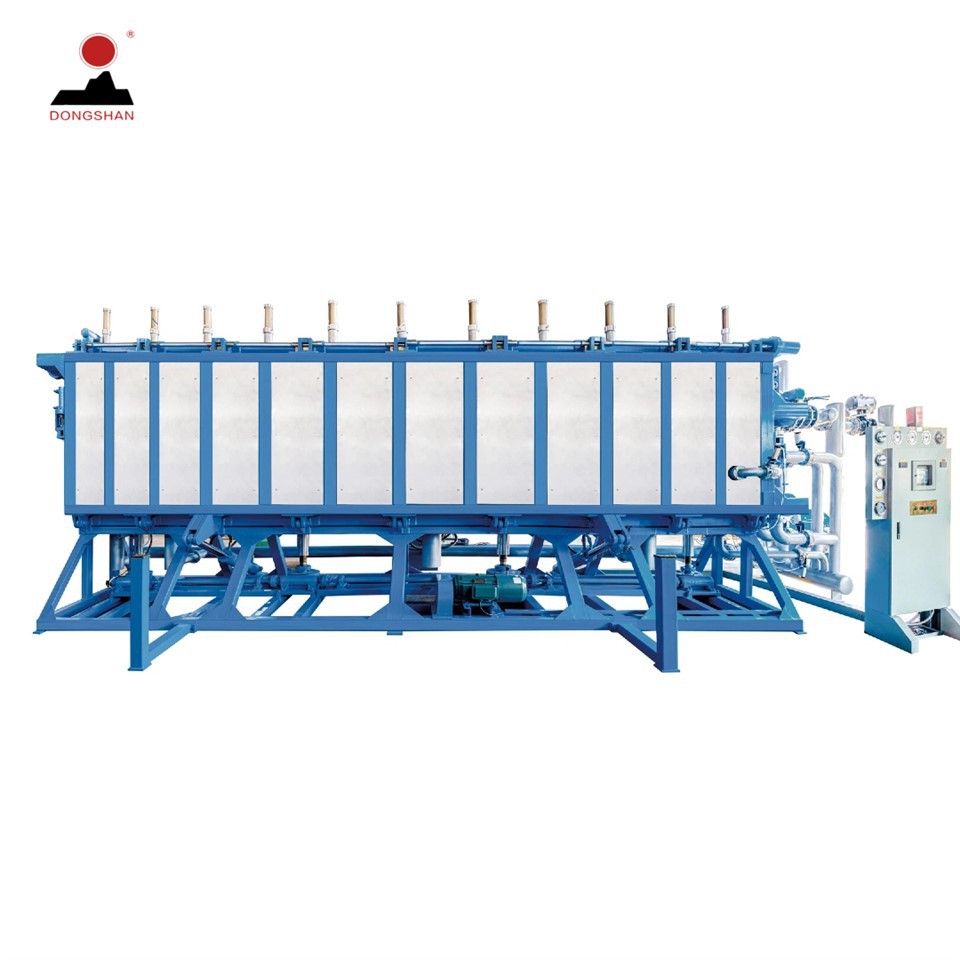

SIP Panel Production Machine
Moukd cawity Size: 3080×(1240-800)×630 mm
Block SLe: 3000×(1200-800)×600 mm
Capacty@15kgm²: 6 minkcyce
Connoched LoadPower: 20735 KW
Ovaral Dimernslon(L×W×H): 7200×4000×3500 mm
Walght: 11400 KG
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of sip panel production machine in China, also supports customized service with low price. Welcome to wholesale high quality sip panel production machine for sale here from our factory. Contact us for pricelist.
CE Certified EPS SIP Panel Production machine Meeting International Safety and Quality Standards
The CE Certified EPS SIP Panel Production Machine is engineered to meet strict international safety, quality, and performance standards, making it a reliable solution for manufacturers producing Structural Insulated Panels (SIP) and other EPS-based construction materials. With its advanced design and certified safety features, this machine ensures stable operation, high production efficiency, and consistent panel quality for the global building materials market.
Technical Specifications & Features
High-Precision Lamination
Utilizes advanced vacuum bonding or hydraulic pressing to ensure a permanent, void-free bond between the EPS core and outer skins (such as OSB, magnesium oxide board, or cement board).
Automated Adhesive Application
Equipped with a CNC-controlled glue spreader that ensures a uniform distribution of adhesive. This minimizes waste and prevents "delamination" - a common failure point in lower-quality panels.
Digital Pressure Management
A centralized PLC system monitors the pressing force in real-time. This guarantees that every panel is perfectly flat and possesses consistent dimensional accuracy.
Robust Vertical or Horizontal Configuration
Depending on factory layout, these machines are available in space-saving vertical designs or high-throughput horizontal lines, both featuring heat-treated steel frames to prevent long-term structural fatigue.
Core Advantages
Fully Automatic and Efficient Production: Adopts cutting- edge fully automatic technol ogy, featuring high energy efficiency and low power consumption, providing an integrated solu tion for EPS block production.
Flexible Size Adjustment: Supports continuous adjustment in single dimension (depth/height) and double dimensions (depth + height), significantly enhancing production adaptability while reducing waste of edge materials and lowering material consumption.
Technical Characteristics
Precision Drive System: The moving platen achieves precise control of vertical displace ment through a rotating screw cylinder, ensuring smooth operation.
Intelligent Operation Interface: Equipped with an intuitive touch screen, allowing opera tors to conveniently set mold parameters, and the equipment automatically completes high- precision size adjustment, making it easy for novices to get started quickly.
Customization & Sustainability
Personalized Configuration: Can customize horizontal molding solutions according to customer needs to meet diverse production scenarios.
Recycled Material Adaptation: Optional dedicated program is available, supporting block size fine- tuning within the range of 0- 50mm, increasing the proportion of recycled materials used and practicing the concept of green manufacturing.
Intelligent Aids
Fault Self-Diagnosis: Advanced system detects issues, triggers alarms; cuts downtime.
Remote Monitoring: Real- time oversight of produc tion process.
Technical Specifications
| Item | Unit | DSHA2000 | DSHA3000 | DSHA4000 | DSHA6000 | DSHA8000 | |
| Mould cavty Sze | mm | 2080×(1240-800)×630 | 3080×(1240-800)×630 | 4100×(1240-800)×630 | 6120×(1240-800)×630 | 8140×1240×630 | |
| Bock SzR | mm | 2000×(1200-800)×600 | 3000×(1200-800)×600 | 4000×(1200-800)×600 | 6000×(1200-800)×600 | 8000×1200×600 | |
| Steam | Entry | hch/mm) | 5*(DN125) | 5"(DN125) | 6"(DN1500 | 8"(DN2000 | 8"(DN200) |
| Consumphion | kg(cyche | 25-45 | 45-65 | 60-85 | 95-120 | 115-160 | |
| Prassure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.5-0.8 | |
| Copressed Air | Entry | hch/mm) | 1.5*(DN40 | 1.5"(DN40 | 2"(DNS0) | 25"(DN65) | 3"(DN80) |
| Corsumphion | miyce | 1.5-2 | 1.5-2.5 | 1.8-2.5 | 2-3 | 2.5-3 | |
| Pressure | Mpa | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| VacumCoolng Water |
Entry | hch/mm | 1.5*DN40) | 1.5"(DN40 | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) |
| Corsumchion | mioycke | 0.4 | 0.6 | 0.8 | 1 | 2 | |
| Prassure | Mpa | 0.2-0.4 | 02-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
| Dralnage | VacumVert | hch/mm | 4*(DN100) | 5"(DN125) | 5"(DN125) | 5"(DN125) | 5"(DN125 |
| Sheam Vent | hch/mm) | 4*(DN100) | 6"(DN150) | 6"(DN1500 | 6"(DN150) | 8"(DN200) | |
| AIr Coolng Vent | hch(mm) | 4*(DN100) | 5"(DN125) | 6"(DN150 | 8"(DN200) | 8"(DN200 | |
| Capacity@15kglm² | mhkcyde | 4 | 6 | 7 | 8 | 8 | |
| Cornocted LoadPowar | KW | 20735 | 2035 | 2540 | 2951 | 3155 | |
| Overall Dimenslon(LxW×H0 | mm | 5700×400×3300 | 7200×4000×3500 | 11000×4500×3500 | 12600×4500×3500 | 15700*4600×3500 | |
| Wigft | KG | 8000 | 9500 | 12000 | 14000 | 18000 | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
