Styrofoam Box Machine

Item: Dralnage OY Vacum Ppe,Iniet Of Colng Water,Drahage OY Vacum Pump,rlet OH AIr
Spec: DN200,DN100,DN200,DN25
Qt'y: 1, 1, 1, 1

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of styrofoam box machine in China, also supports customized service with low price. Welcome to wholesale high quality styrofoam box machine for sale here from our factory. Contact us for pricelist.

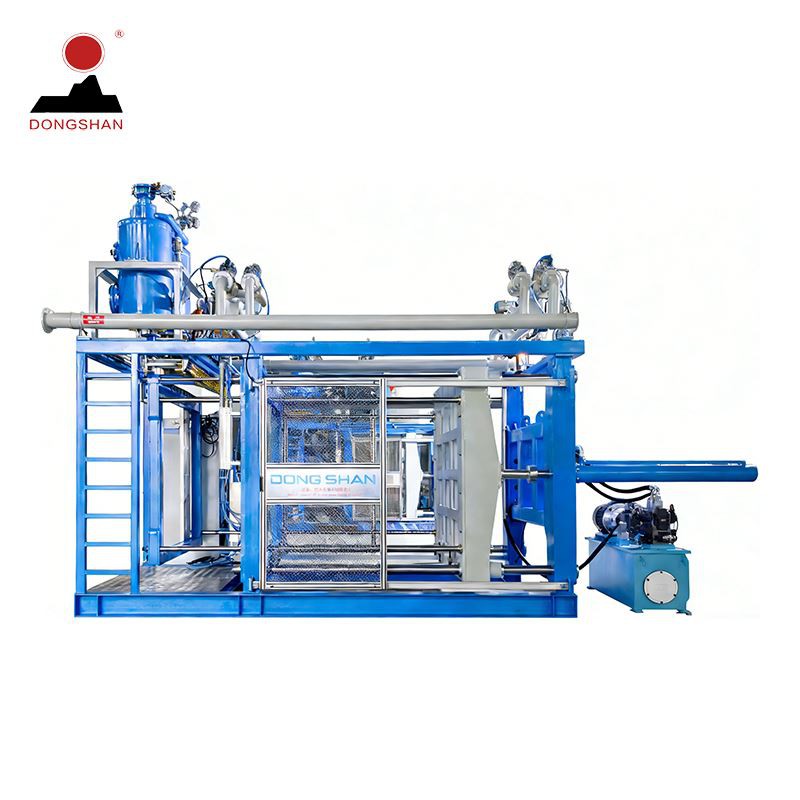

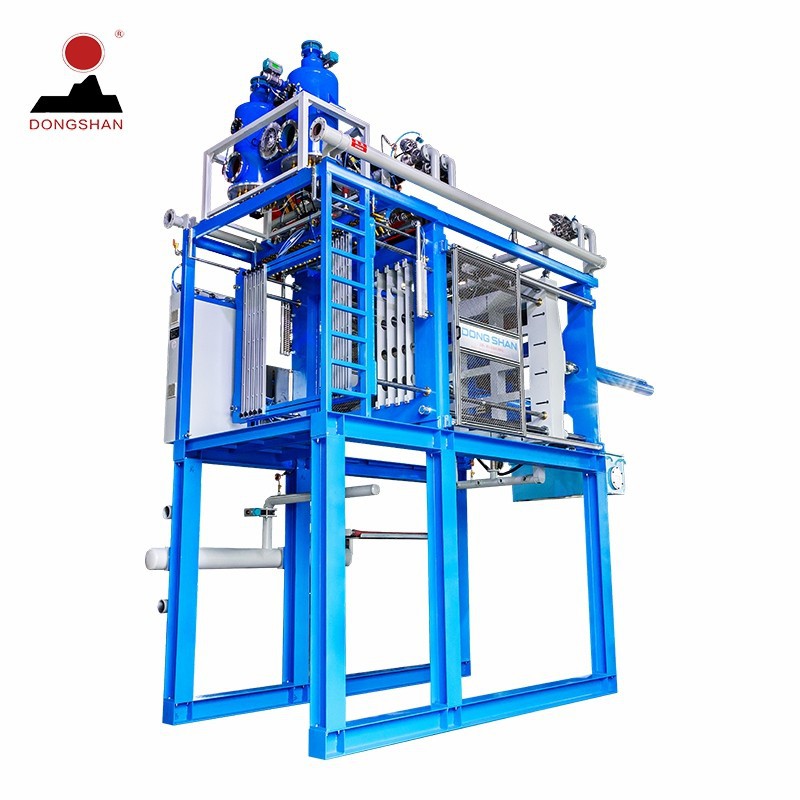

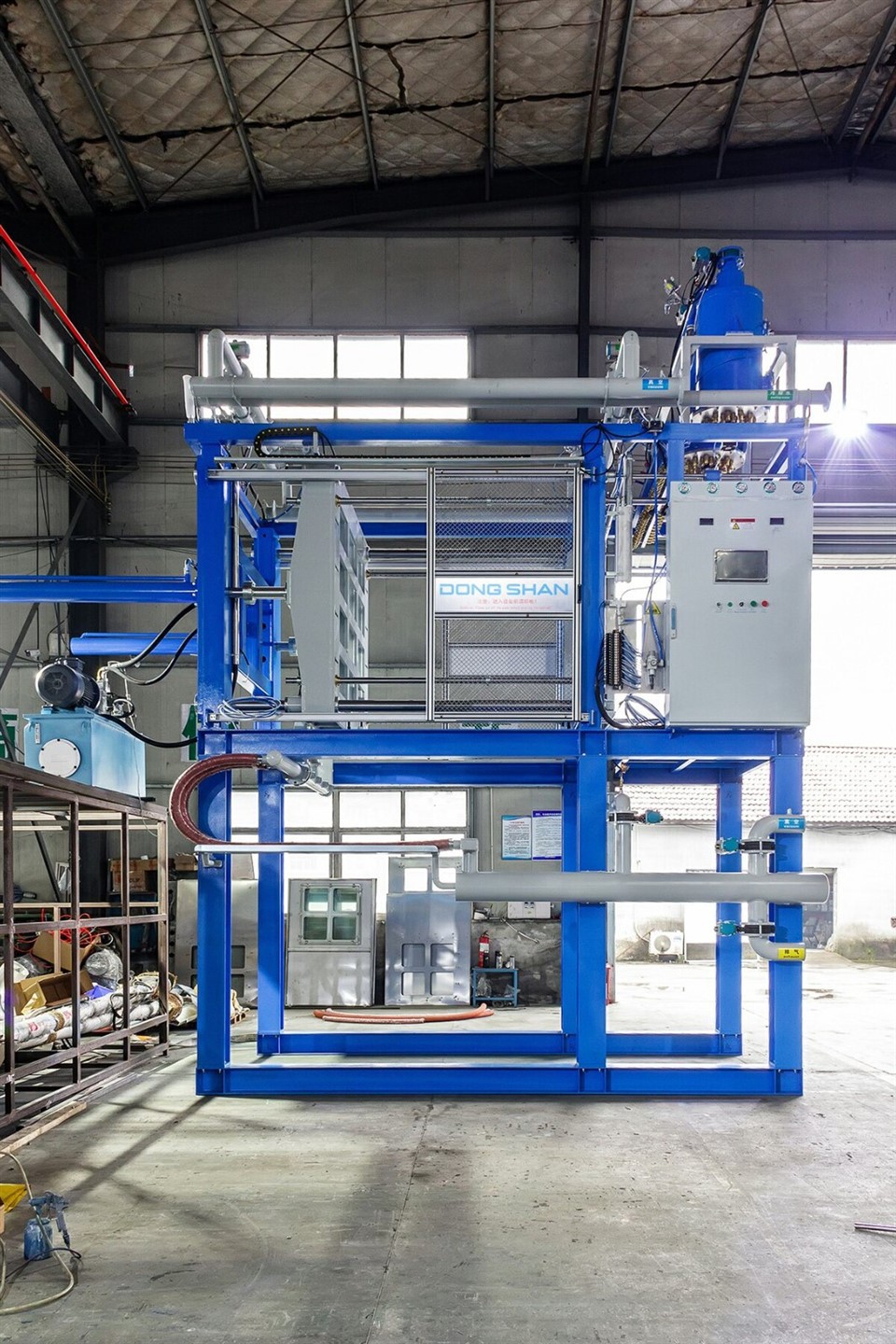

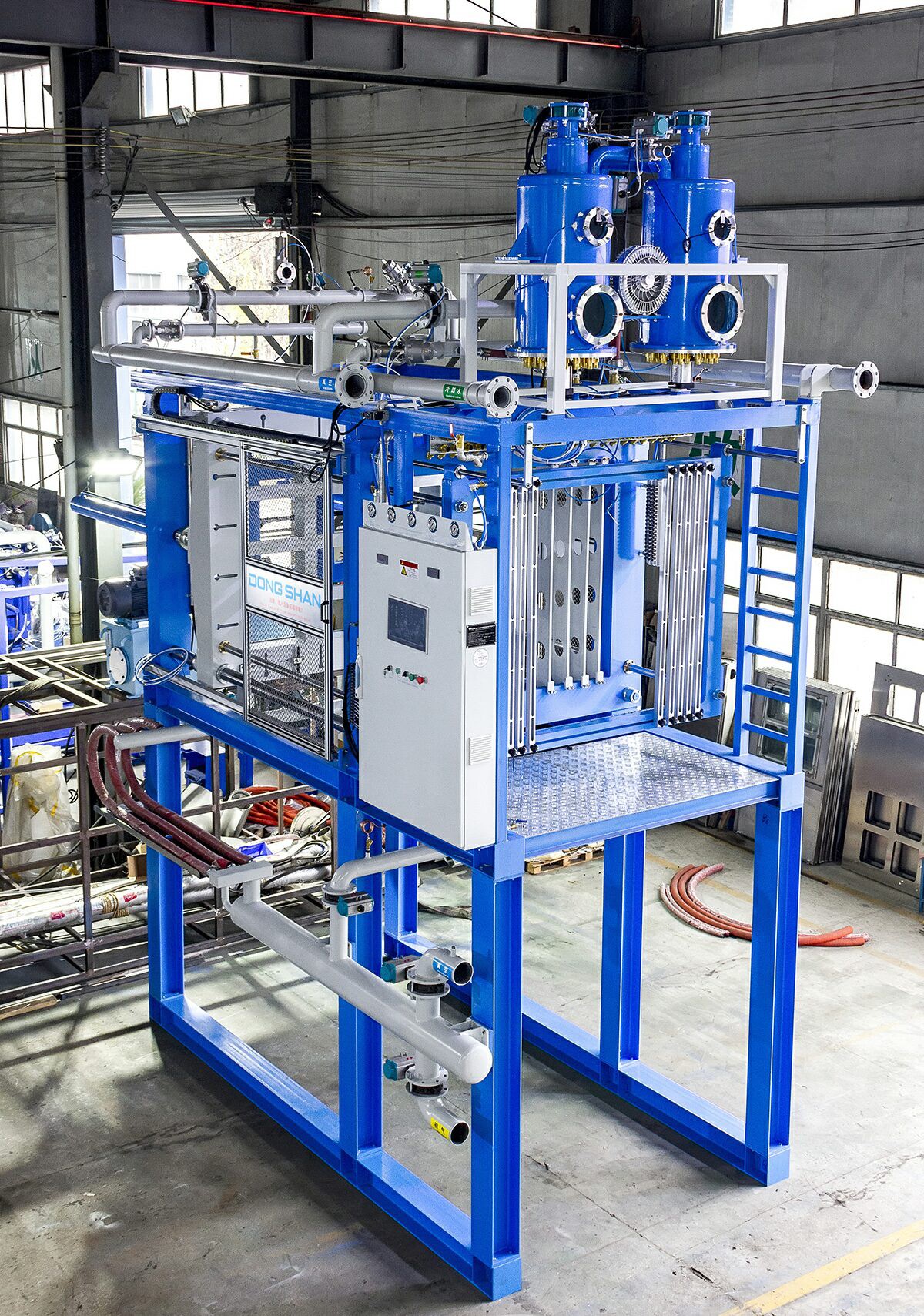

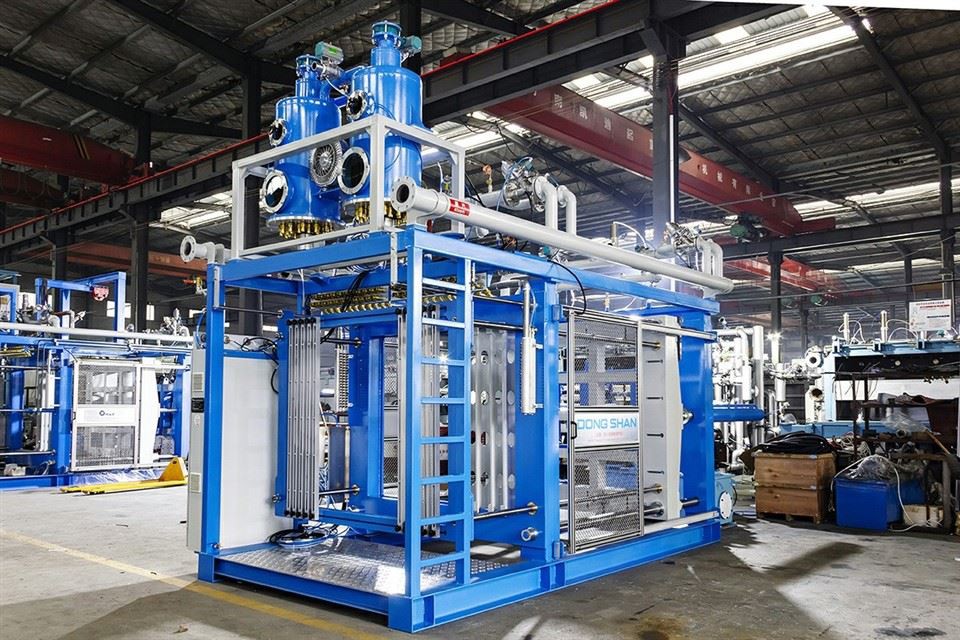

Automatic EPS Styrofoam box machine and foam equipment for Food Container manufacturing

This Automatic EPS (Expandable Polystyrene) Styrofoam Box Machine and Foam Equipment is a high-performance production line specifically optimized for the rapid manufacturing of packaging solutions, such as fruit crates, fish boxes, and electronic protective packaging.

By integrating precision German and Japanese components with advanced thermal engineering, this equipment offers several critical advantages for modern foam factories

Stress-Relieved Framework:

The machine body is constructed from high-strength steel that undergoes electric furnace stress-relief annealing. This prevents frame deformation during long-term, high-pressure operation.

Corrosion Resistance:

Post-heat-treatment sandblasting removes oxidation, allowing for superior coating adhesion. This protects the machine from the humid, corrosive environment typical of foam production plants.

Advanced Vacuum Cooling:

A high-capacity vacuum system rapidly extracts residual heat and moisture. This produces "dry" boxes that can be stacked and shipped almost immediately, reducing the need for large curing areas.

Forward Demolding:

The synchronized ejection system ensures that even complex or deep-cavity boxes are released smoothly without surface damage or cracking.

Product Introduction

Equipment body: designed more scientifically, operated more stably, and structurally more firmly.

Travel control system: using Korean Autonics encoder to ensure accurate data.

Molding system: Convenient design of movable top rod fixed bracket.

Hydraulic system: Using new materials and solutions to ensure high temperature resistance and no leakage of the hydraulic system.

Steam system: adopts dual valve control, with more stable pressure and higher efficiency.

Valve system: Using German Burkert solenoid valves and Japanese SMC precision filters for more precise control.

Feeding system: The feeding bucket adopts a horizontal design, multiple discharge ports, and advanced liquid level sensors. Equipped with a self closing exhaust feeding gun.

K series

X-A series

Forward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

X-B series

Backward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

Major Products

Technical Specifications

Iterm Description		unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
Mold dimensions		mm	1200X1000	1400X1200	1500X1300	1750X1450	1800X1600	2200X1600
Rear window size		mm	1100X900	1250X1100	1400X1200	1650X1350	1700X1450	2050X1450
Effective molding area		mm	1000X800	1200X1000	1300X1100	1550X1250	1600X1350	1950X1350
Maximum product height		mm	400	400	400	400	400	400
	Steam pipeline	DN	100	100	100	125	125	125
Steam System	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
	Working pressure	Kg/cm2	3~6	3~6	3~6	3~6	3~6	3~6
	pipe interface	DN	65	65	65	80	80	80
system	Working pressure	Kg/cm2	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water System	pipe interface	DN	80	80	80	100	100	100
	Working pressure	Kg/cm2	3～4	3～4	3～4	3～4	3～4	3～4
	Mold interface	DN	25X6	25X8	25X8	25X8	25X8	25X8
Sewage system	Vacuum interface	DN	100	100	100	125	125	125
	Solidify, relocate and drain water	DN	80	80	80	100	100	100
	Sewage pipe interface	DN	100	100	100	100	125	125
	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic system	Oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Oil pump size	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	clamping force	T	24	24	24	38	38	42
	Open and close mold oil cylinder	mm	100X1360/2	100X1360/2	100X1360/2	125X1360/2	125X1360/2	150X1360/2
	Demoulding oil cylinder	mm	50X30X450	50X30X450	50X30X450	50X30X450	50X30X450	70X40X450
	Bucket capacity	cube	0.15	0.3	0.3	0.3	0.3	0.3
system	Feeding fan	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Outlet	individual	32	50	50	50	50	64
Single unit power		Kw	7	7.7	7.7	9.7	9.7	13.2
External dimensions (width according to machine feet)		LXWXH	5250X1750X3785	5250X1950X3785	5250X2050X3885	5430X2250X4000	5450X2230X4000	5632X2620X4100
Single machine weight		T	4.5	5	6.5	7.5	8.5	9
