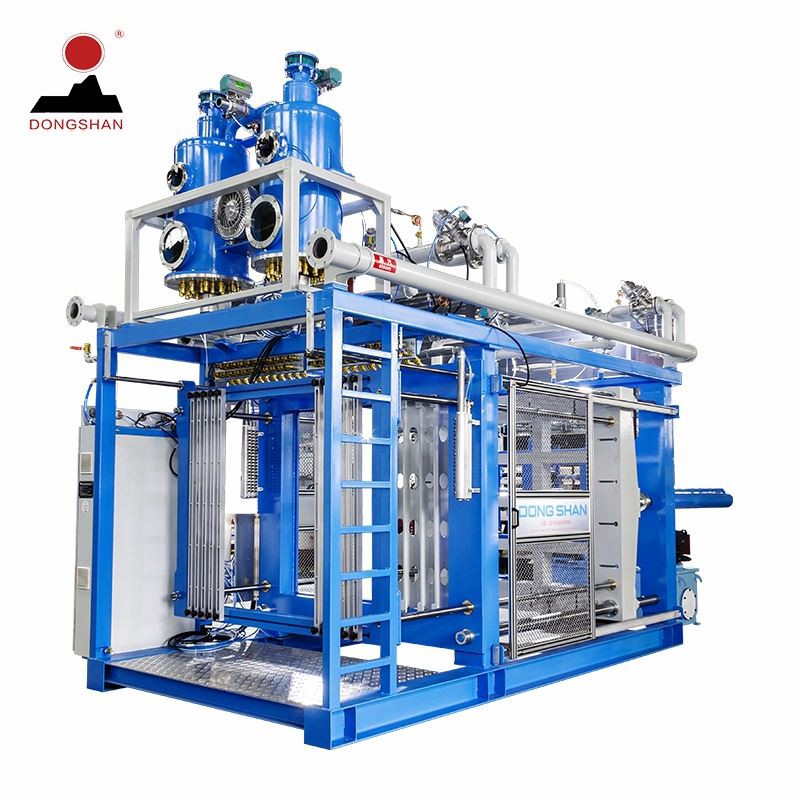

EPS Seedling Tray Machine

DSQ-2000B
Max Cuting Sze: 3000×1250×1250 mm
WoringSpood: 00-2 mlmin
ComnectadLnadPower: 35 kw
Overal Dimension(L×W×H0): 5800×2300×2600 mm
Weight: 2000 g

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps seedling tray machine in China, also supports customized service with low price. Welcome to wholesale high quality eps seedling tray machine for sale here from our factory. Contact us for pricelist.

Low-loss Cost EPS Seedling Tray foaming Machine with CE Certification for eps production line

High-Efficiency EPS Seedling Tray Production Line

The Low-loss Cost EPS Seedling Tray Foaming Machine is a specialized, high-performance solution designed for the agricultural and horticultural sectors. This CE-certified equipment balances precision molding with extreme cost-efficiency, ensuring your production line delivers durable, high-quality seedling trays with minimal waste.

Intelligent Interface:

Features a 15.6-inch LED touchscreen paired with a Mitsubishi or Schneider PLC. This allows for fully automated cycles: Filling → Heating → Cooling → Demolding → Ejection.

Accurate Travel Tracking:

The use of Korean Autonics encoders ensures sub-millimeter positioning accuracy ($\pm 0.05\text{mm}$), which is vital for producing boxes with perfect lid-to-base interlocking fits.

Smart Filling System:

The vertical feeding barrel includes 48 independent inlets and a horizontal hopper with liquid level sensors, ensuring uniform density across the entire box structure.

Dual-Valve Steam Logic:

Unlike traditional systems, this machine utilizes a specialized dual-valve configuration that stabilizes internal mold pressure. This ensures 3D heat penetration for perfect bead fusion while reducing steam consumption by approximately 20%.

Gemu & SMC Integration:

Equipped with German Gemu steam valves and Japanese SMC high-frequency valves, the system provides millisecond-level response times, ensuring the steaming cycle is both precise and energy-efficient.

K series

X-A series

Forward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor

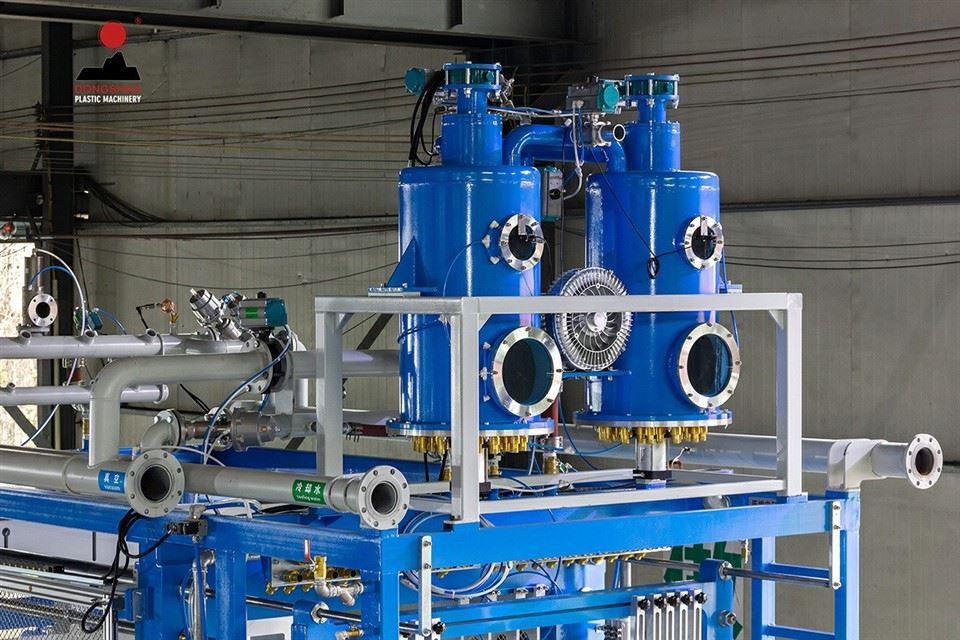

48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

X-B series

Backward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

Major Products

Technical Specifications

Iterm Description		unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
Mold dimensions		mm	1200X1000	1400X1200	1500X1300	1750X1450	1800X1600	2200X1600
Rear window size		mm	1100X900	1250X1100	1400X1200	1650X1350	1700X1450	2050X1450
Effective molding area		mm	1000X800	1200X1000	1300X1100	1550X1250	1600X1350	1950X1350
Maximum product height		mm	400	400	400	400	400	400
	Steam pipeline	DN	100	100	100	125	125	125
Steam System	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
	Working pressure	Kg/cm2	3~6	3~6	3~6	3~6	3~6	3~6
	pipe interface	DN	65	65	65	80	80	80
system	Working pressure	Kg/cm2	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water System	pipe interface	DN	80	80	80	100	100	100
	Working pressure	Kg/cm2	3～4	3～4	3～4	3～4	3～4	3～4
	Mold interface	DN	25X6	25X8	25X8	25X8	25X8	25X8
Sewage system	Vacuum interface	DN	100	100	100	125	125	125
	Solidify, relocate and drain water	DN	80	80	80	100	100	100
	Sewage pipe interface	DN	100	100	100	100	125	125
	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic system	Oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Oil pump size	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	clamping force	T	24	24	24	38	38	42
	Open and close mold oil cylinder	mm	100X1360/2	100X1360/2	100X1360/2	125X1360/2	125X1360/2	150X1360/2
	Demoulding oil cylinder	mm	50X30X450	50X30X450	50X30X450	50X30X450	50X30X450	70X40X450
	Bucket capacity	cube	0.15	0.3	0.3	0.3	0.3	0.3
system	Feeding fan	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Outlet	individual	32	50	50	50	50	64
Single unit power		Kw	7	7.7	7.7	9.7	9.7	13.2
External dimensions (width according to machine feet)		LXWXH	5250X1750X3785	5250X1950X3785	5250X2050X3885	5430X2250X4000	5450X2230X4000	5632X2620X4100
Single machine weight		T	4.5	5	6.5	7.5	8.5	9
