Hot Wire EPS Foam Cutter
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of hot wire eps foam cutter in China, also supports customized service with low price. Welcome to wholesale high quality hot wire eps foam cutter for sale here from our factory. Contact us for pricelist.
High Precision CNC Hot Wire Foam Cutter for 3D Foam Shapes Cutting Machine
Core Technical Advantages
Complex 3D Geometric Capability
Equipped with a 4-axis independent movement system, the machine can cut different profiles on each side of the foam block simultaneously. This allows for the creation of tapered columns, transition shapes, and intricate 3D architectural elements that are impossible for standard cutters.
01
Sub-Millimeter CNC Precision
Driven by high-torque stepper or servo motors and precision ball screws, the system delivers a positioning accuracy of ±0.05mm. Every cut follows the digital CAD/DXF file perfectly, ensuring 100% repeatability for large production runs.
02
Smart Thermal Management
The cutting wire temperature is dynamically regulated via a digital power controller. This maintains a constant "kerf" (cutting width), preventing the wire from overheating and melting too much material, which results in a professional, "mirror-smooth" surface finish.
03
Automatic Wire Tensioning
To prevent wire "sagging" or snapping during complex maneuvers, the machine features a pneumatic or spring-loaded tensioning system. This keeps the hot wire perfectly taut, ensuring straight lines and sharp corners even at high cutting speeds.
04
Seamless Software Integration
The control system is compatible with standard design software (like AutoCAD, CorelDraw, or specialized CNC foam software). The "Auto-nesting" feature optimizes the layout of shapes on a single block to minimize material waste.
05
Drawing : AUTOCAD
Cutting software : USB Controller
Cutting file format : *NC , *.DXF
Electronic : SCHNEIDER
Remote controller : Yes
Protection:
Afety protection for hot wire cutting, Once the cutting hot wire broken, The machine will be stop heating automatically.
Four unit limit switch for stroke protection.
Overview

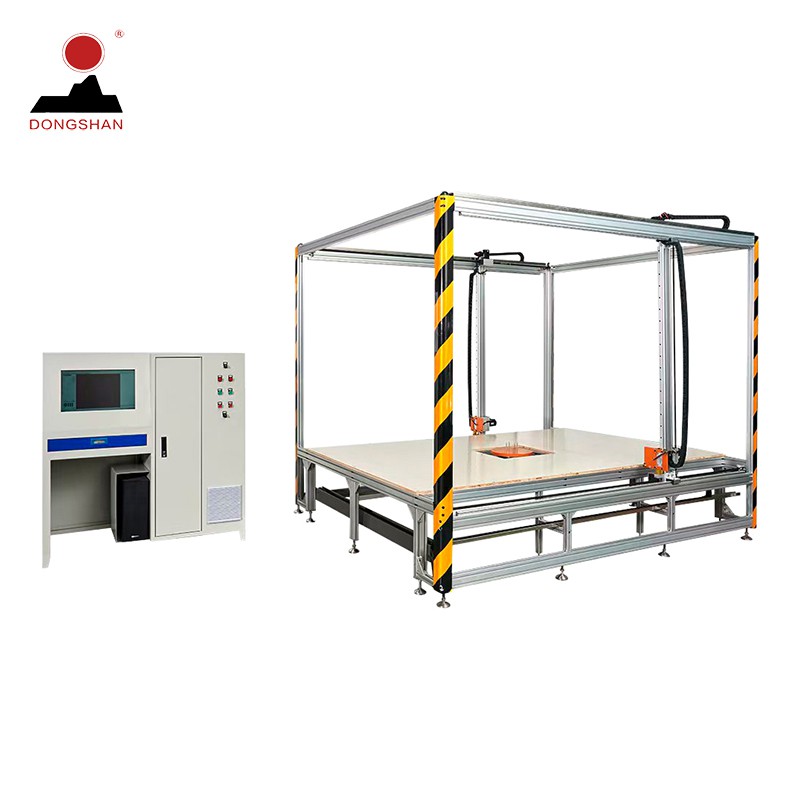

FC200/250 series CNC foam cutter suit for 2D profile cutting with multi cutting wire, which have big capacity and high accuracy, this machine is specially for exterior cornice moulding, facade cladding and deco elements.
Mechanical Characteristics
AII the profiles of the machine are connected by aluminum alloy profil, simple and beautiful appear ance, stable movement and high precision; meanwhile, four unit limit switches keep safety protection.
Machine have X, Y, U , V moved by step motor and tooth belt or screw rod X, Y and U, V work at the same time for 2D profile Cutting.The accuracy of the mechanical control is 0.05mm; The horizontal wire setting and vertical wire setting are optional.
Technical Specifications
| Item | Unit | DSFC200 | DSFC250 | DSFC200(4 blocks) | |
| Max Nat outthng slze | mm | 210002100×1300 | 2500×2100×1300 | 2000K2100×1300 | |
| Cufing Wre MatariaVSpocfcatlon | mm | +0.4 G20N80 | 40.4 G20N80 | 0.4 G2ON80 | |
| Max Hot Wre | peC5 | 12 | 10 | 12 | |
| Step Mactor Torslon | NM | 4-8.5 | 4-8.5 | 4-8.5 | |
| Total Capacilty | KW | 19 | 19 | 19 | |
| Cuting Spood Range | mmin | 0.3-0.8m/min | 0.3-0.8mmin | 0.3-0.8mmin | |
| Voltage Regdator | Power | KVA | 15 | 15 | 20 |
| Voltage | V | 0-220(austabla) | 0-220(austabla) | 0-220(ajustabla) | |
| Cuting Sze | mm | 1400 | 1400 | 3500 | |
| OwralSze(×W×H) | mm | 3200×310002500 | 3200×3600×2500 | 4850×3100×2500 | |
| Gross Weight | Kg | 700 | 750 | 850 | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
Why Choose Us
Certifications and Awards
the final view of project
Exhibitions with Global Customers
