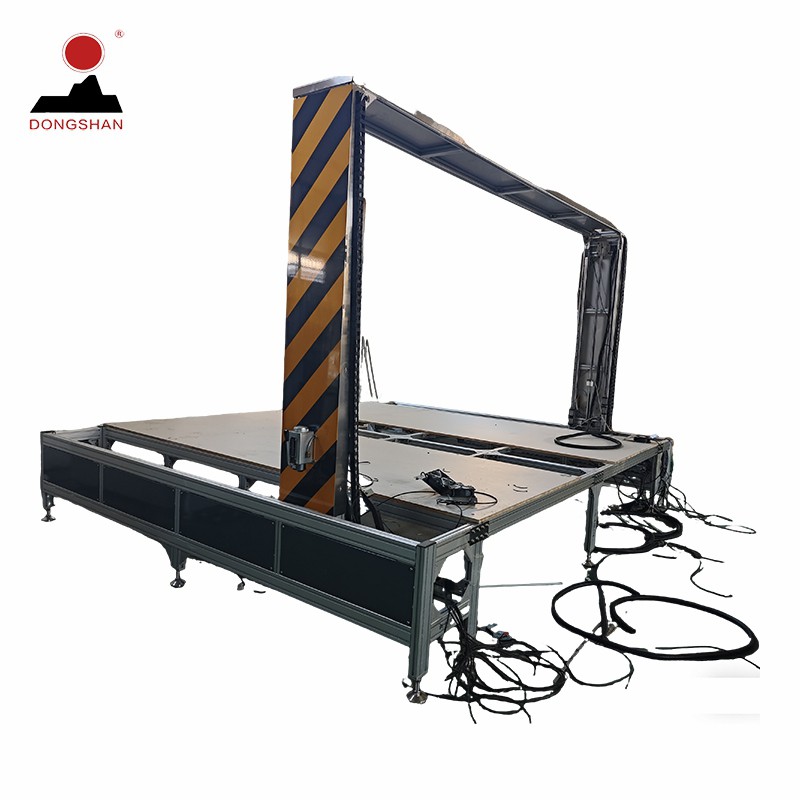

Industrial CNC Polystyrene Cutting Machine with Advanced Software for EPS and XPS Polystyrene cutting

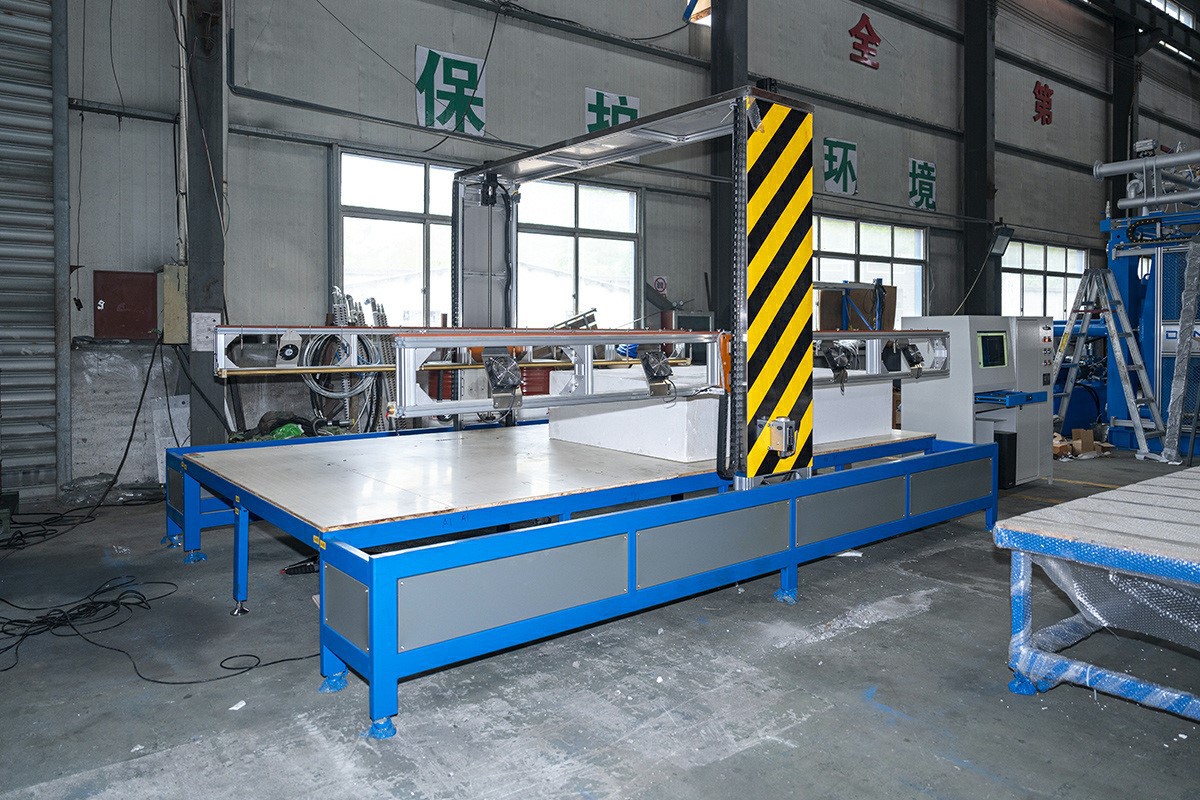

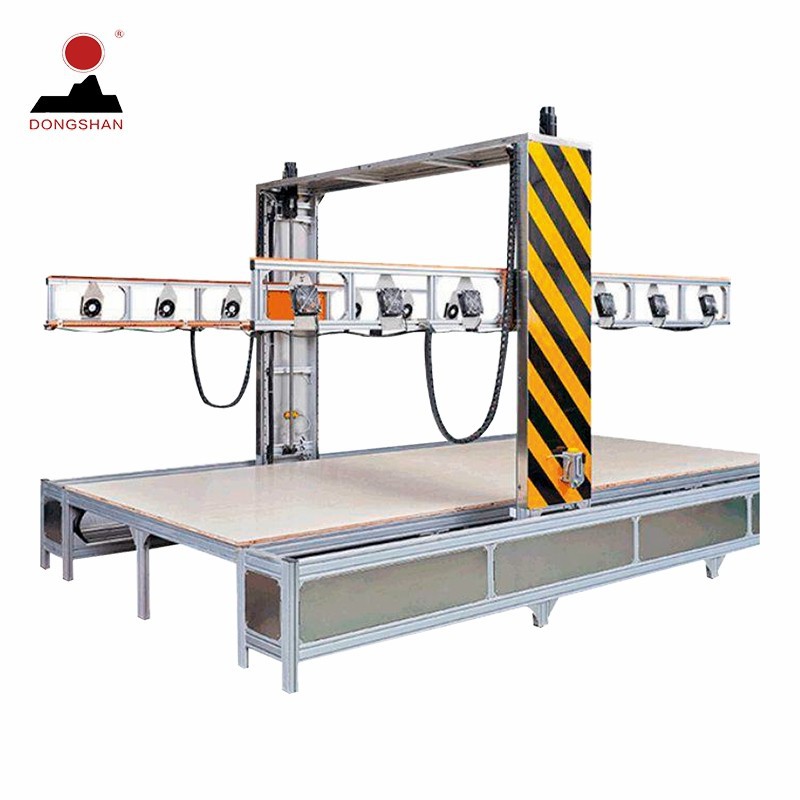

The FC200/250 series CNC foam cutter is specially designed for 2D profile cutting with multi cutting wire, featuring large capacity and high precision. It is ideally suitable for processing exterior cornice moulding, facade cladding and decorative elements, meeting various decoration and processing needs.
All profiles of the machine are connected by aluminum alloy, boasting a simple and elegant appearance, stable movement and high precision. Four sets of limit switches are equipped to provide reliable safety protection. The machine is equipped with X, Y, U, V axes driven by stepping motors, matched with toothed belts or lead screws. The X, Y, U and V axes work simultaneously to realize efficient 2D profile cutting, with a mechanical control accuracy of 0.05mm. Horizontal and vertical wire settings are optional for flexible operation.
In terms of supporting equipment, it is compatible with AUTOCAD for drawing, adopts USB Controller as cutting software, and supports *NC and *.DXF cutting file formats. The electronic components are from SCHNEIDER, ensuring stable performance. A remote controller is provided for convenient operation. For safety, it has hot wire cutting protection-once the cutting hot wire breaks, the machine will automatically stop heating; four limit switches also provide effective stroke protection.
Drawing : AUTOCAD
Cutting software : USB Controller
Cutting file format : *NC , *.DXF
Electronic : SCHNEIDER
Remote controller : Yes
Protection:
Afety protection for hot wire cutting, Once the cutting hot wire broken, The machine will be stop heating automatically.
Four unit limit switch for stroke protection.
Overview
FC200/250 series CNC foam cutter suit for 2D profile cutting with multi cutting wire, which have big capacity and high accuracy, this machine is specially for exterior cornice moulding, facade cladding and deco elements.
Mechanical Characteristics
AII the profiles of the machine are connected by aluminum alloy profil, simple and beautiful appear ance, stable movement and high precision; meanwhile, four unit limit switches keep safety protection.
Machine have X, Y, U , V moved by step motor and tooth belt or screw rod X, Y and U, V work at the same time for 2D profile Cutting.The accuracy of the mechanical control is 0.05mm; The horizontal wire setting and vertical wire setting are optional.

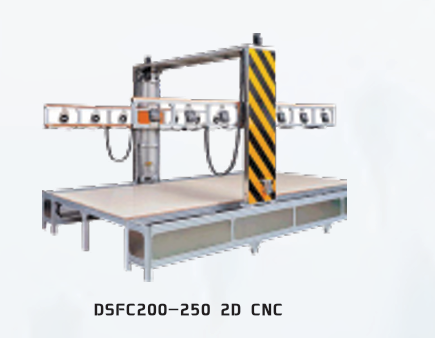

Technical Specifications
| Item | Unit | DSFC200 | DSFC250 | DSFC200(4 blocks) | |
| Max Nat outthng slze | mm | 210002100×1300 | 2500×2100×1300 | 2000K2100×1300 | |
| Cufing Wre MatariaVSpocfcatlon | mm | +0.4 G20N80 | 40.4 G20N80 | 0.4 G2ON80 | |
| Max Hot Wre | peC5 | 12 | 10 | 12 | |
| Step Mactor Torslon | NM | 4-8.5 | 4-8.5 | 4-8.5 | |
| Total Capacilty | KW | 19 | 19 | 19 | |
| Cuting Spood Range | mmin | 0.3-0.8m/min | 0.3-0.8mmin | 0.3-0.8mmin | |
| Voltage Regdator | Power | KVA | 15 | 15 | 20 |
| Voltage | V | 0-220(austabla) | 0-220(austabla) | 0-220(ajustabla) | |
| Cuting Sze | mm | 1400 | 1400 | 3500 | |
| OwralSze(×W×H) | mm | 3200×310002500 | 3200×3600×2500 | 4850×3100×2500 | |
| Gross Weight | Kg | 700 | 750 | 850 | |
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
