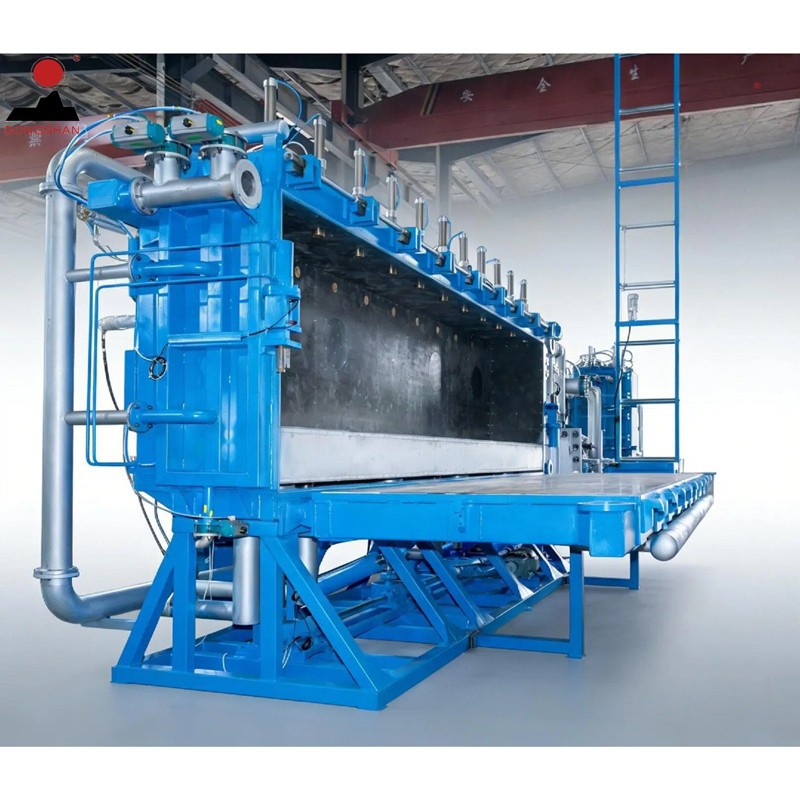

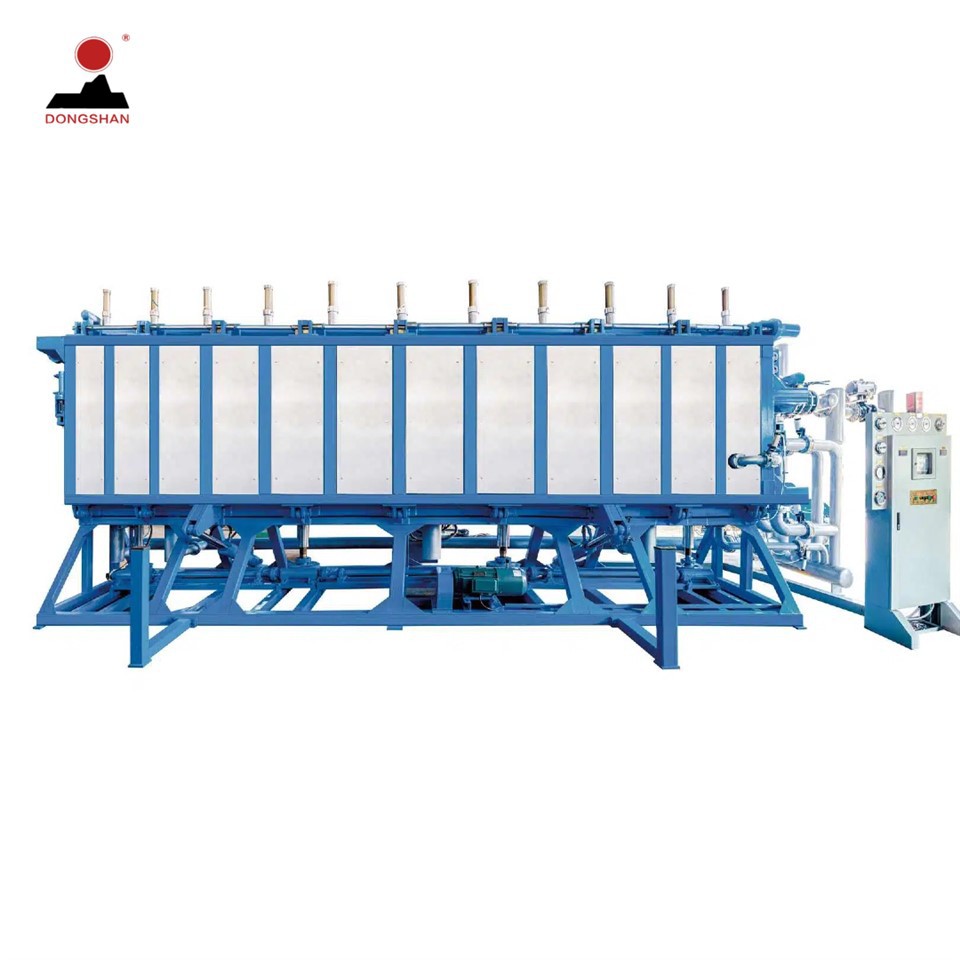

Polystyrene Board Molding Equipment
Total Power:31.05KW
Expanding Tolerance:≤±0.5%
Overall Size(L×W×H):2300×2300×6000mm
Weight:5500KG
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of polystyrene board molding equipment in China, also supports customized service with low price. Welcome to wholesale high quality polystyrene board molding equipment for sale here from our factory. Contact us for pricelist.
Uniform Density polystyrene board molding equipment for Exterior Wall Insulation production
The Uniform Density Polystyrene Board Molding Equipment is used for the production of high-quality EPS boards used in exterior wall insulation systems. Engineered with advanced molding technology and precision control, this machine ensures consistent density distribution, excellent structural strength, and reliable performance, making it an ideal solution for modern insulation material manufacturers.
Advantages
1. Superior Forming Quality: Vertical structure ensures better drainage and uniform steam circulation, resulting in EPS blocks with significantly lower moisture content than horizontal models. Blocks also feature more uniform density, enabling smoother cutting and enhanced construction quality.
2. Energy Efficiency & Productivity: Optimized steam and cooling channels shorten cycle time, reducing steam and energy consumption compared to horizontal models while boosting productivity.
3. Precise Size Flexibility: Advanced platen adjustment system allows faster, more accurate block size changes, minimizing edge waste and improving raw material utilization.

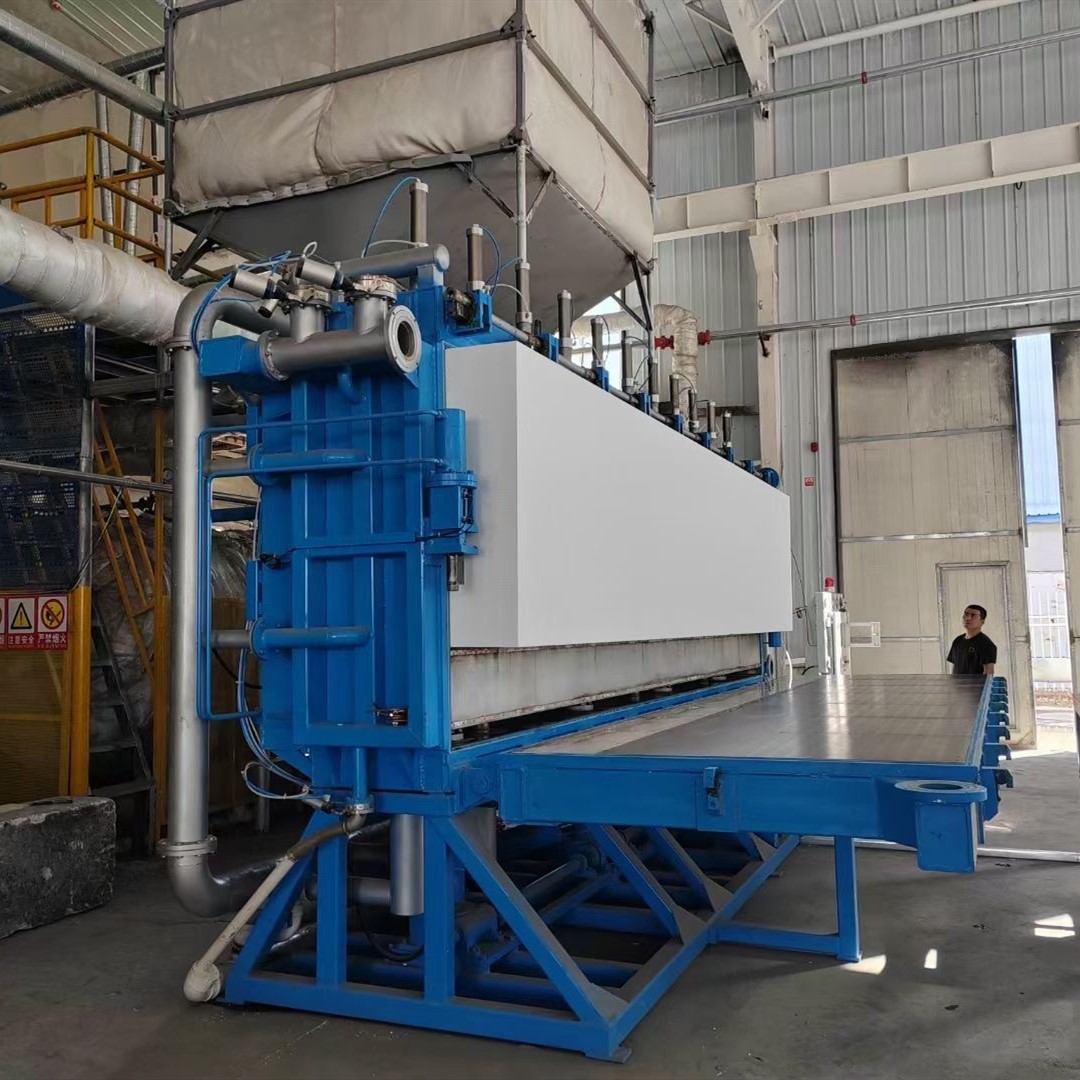

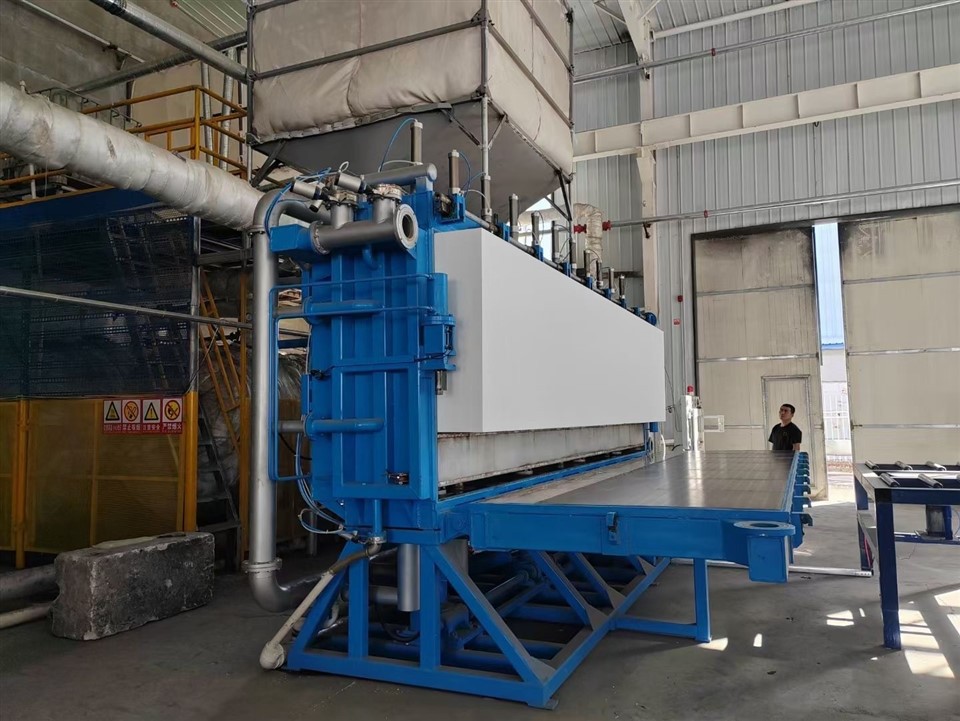

4. Space-Efficient Layout: Vertical design occupies less floor space with a more compact structure, ideal for factories with limited workshop areas.

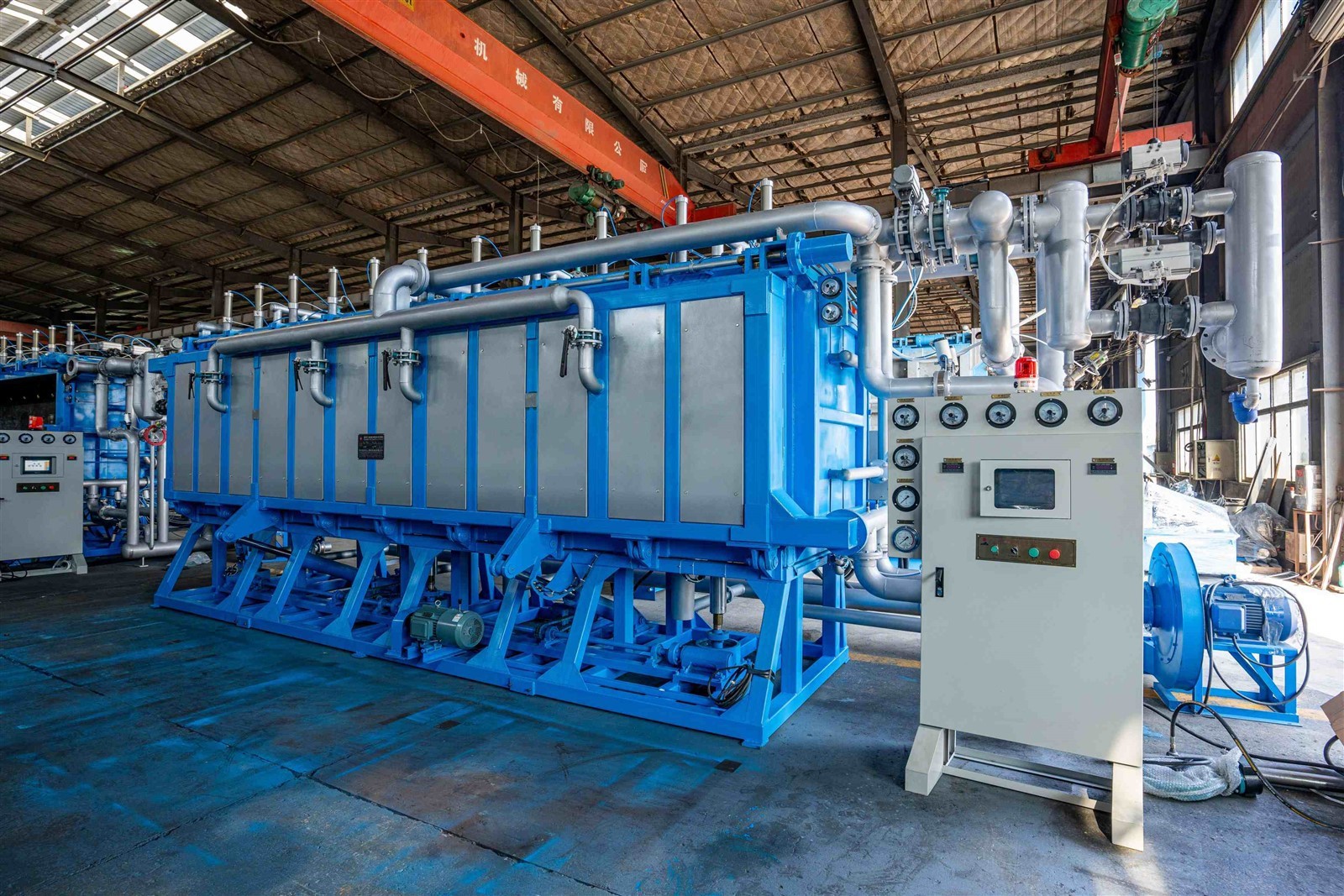

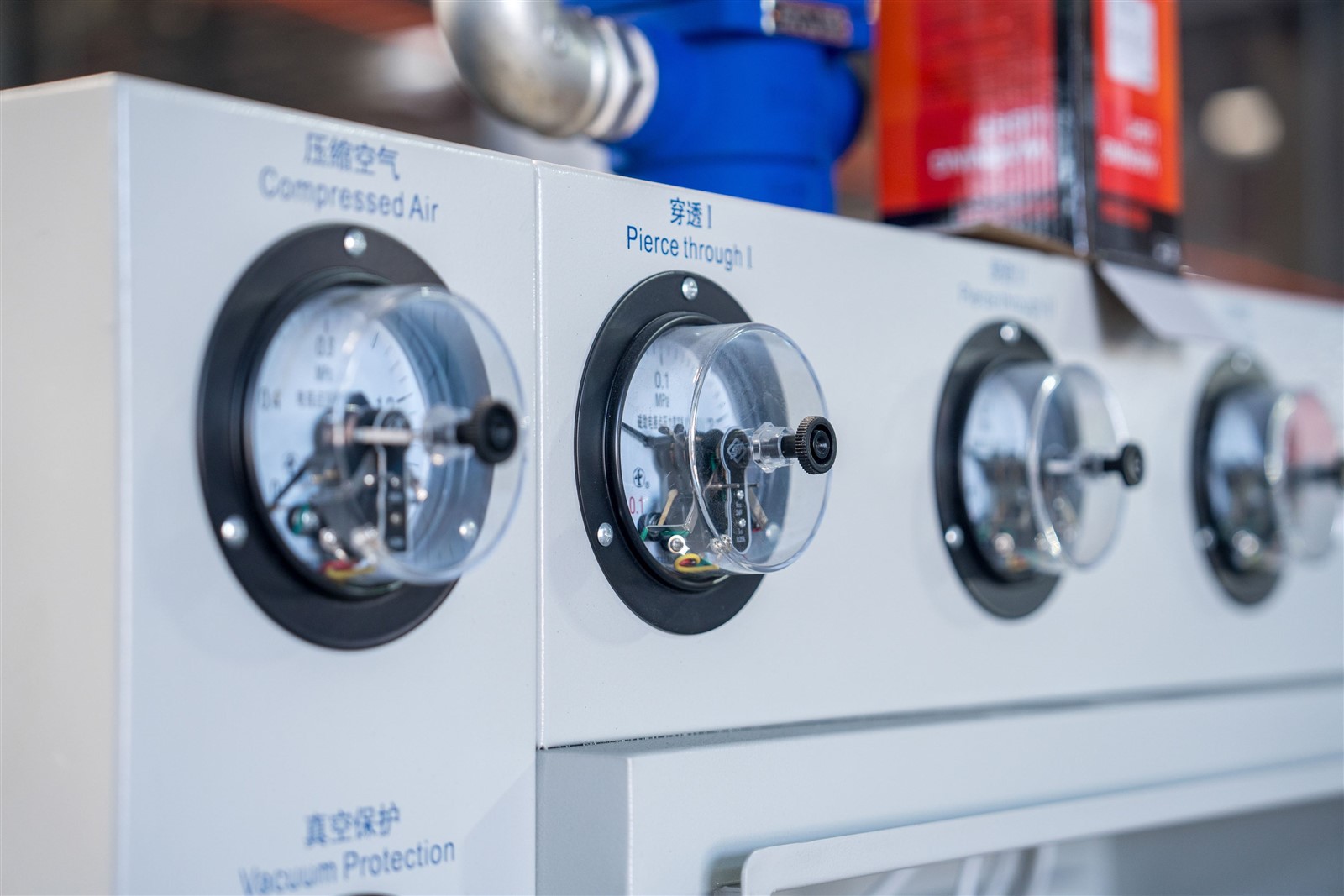

5. Smart Control & Monitoring: Equipped with PLC system and touch screen operation, supporting remote monitoring and automatic fault alarms to ensure smooth production and minimize downtime.
6. Recycled Material Compatibility: Maintains molding quality while accommodating a certain proportion of recycled materials, supporting green and sustainable production.
Core Advantages
Fully Automatic and Efficient Production: Adopts cutting- edge fully automatic technol ogy, featuring high energy efficiency and low power consumption, providing an integrated solu tion for EPS block production.
Flexible Size Adjustment: Supports continuous adjustment in single dimension (depth/height) and double dimensions (depth + height), significantly enhancing production adaptability while reducing waste of edge materials and lowering material consumption.
Technical Characteristics
Precision Drive System: The moving platen achieves precise control of vertical displace ment through a rotating screw cylinder, ensuring smooth operation.
Intelligent Operation Interface: Equipped with an intuitive touch screen, allowing opera tors to conveniently set mold parameters, and the equipment automatically completes high- precision size adjustment, making it easy for novices to get started quickly.
Customization & Sustainability

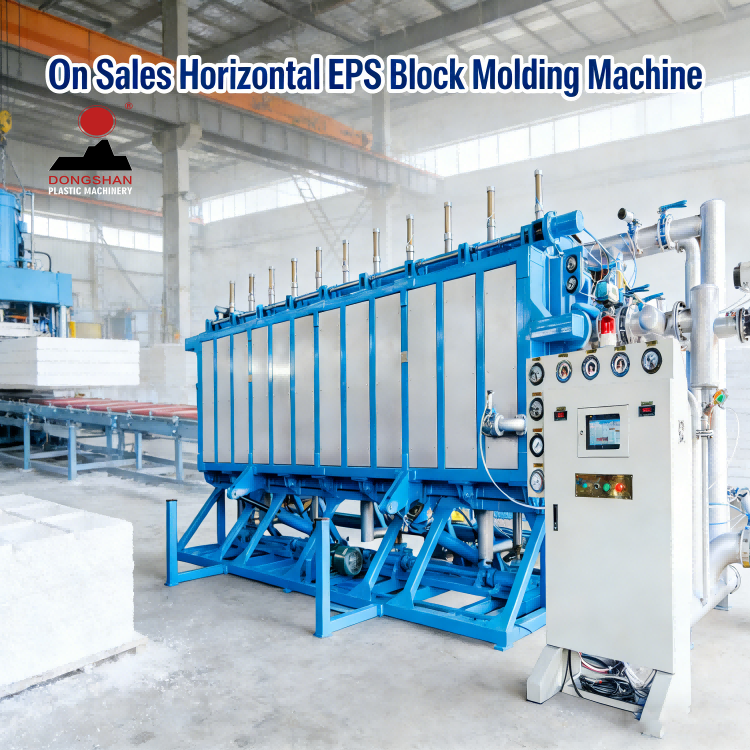

Personalized Configuration: Can customize horizontal molding solutions according to customer needs to meet diverse production scenarios.
Recycled Material Adaptation: Optional dedicated program is available, supporting block size fine- tuning within the range of 0- 50mm, increasing the proportion of recycled materials used and practicing the concept of green manufacturing.
Intelligent Aids
Fault Self-Diagnosis: Advanced system detects issues, triggers alarms; cuts downtime.
Remote Monitoring: Real- time oversight of produc tion process.
Technical Specifications
| Item | Unit | DSHA2000 | DSHA3000 | DSHA4000 | DSHA6000 | DSHA8000 | |
| Mould cavty Sze | mm | 2080×(1240-800)×630 | 3080×(1240-800)×630 | 4100×(1240-800)×630 | 6120×(1240-800)×630 | 8140×1240×630 | |
| Bock SzR | mm | 2000×(1200-800)×600 | 3000×(1200-800)×600 | 4000×(1200-800)×600 | 6000×(1200-800)×600 | 8000×1200×600 | |
| Steam | Entry | hch/mm) | 5*(DN125) | 5"(DN125) | 6"(DN1500 | 8"(DN2000 | 8"(DN200) |
| Consumphion | kg(cyche | 25-45 | 45-65 | 60-85 | 95-120 | 115-160 | |
| Prassure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.5-0.8 | |
| Copressed Air | Entry | hch/mm) | 1.5*(DN40 | 1.5"(DN40 | 2"(DNS0) | 25"(DN65) | 3"(DN80) |
| Corsumphion | miyce | 1.5-2 | 1.5-2.5 | 1.8-2.5 | 2-3 | 2.5-3 | |
| Pressure | Mpa | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| VacumCoolng Water |
Entry | hch/mm | 1.5*DN40) | 1.5"(DN40 | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) |
| Corsumchion | mioycke | 0.4 | 0.6 | 0.8 | 1 | 2 | |
| Prassure | Mpa | 0.2-0.4 | 02-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
| Dralnage | VacumVert | hch/mm | 4*(DN100) | 5"(DN125) | 5"(DN125) | 5"(DN125) | 5"(DN125 |
| Sheam Vent | hch/mm) | 4*(DN100) | 6"(DN150) | 6"(DN1500 | 6"(DN150) | 8"(DN200) | |
| AIr Coolng Vent | hch(mm) | 4*(DN100) | 5"(DN125) | 6"(DN150 | 8"(DN200) | 8"(DN200 | |
| Capacity@15kglm² | mhkcyde | 4 | 6 | 7 | 8 | 8 | |
| Cornocted LoadPowar | KW | 20735 | 2035 | 2540 | 2951 | 3155 | |
| Overall Dimenslon(LxW×H0 | mm | 5700×400×3300 | 7200×4000×3500 | 11000×4500×3500 | 12600×4500×3500 | 15700*4600×3500 | |
| Wigft | KG | 8000 | 9500 | 12000 | 14000 | 18000 | |
