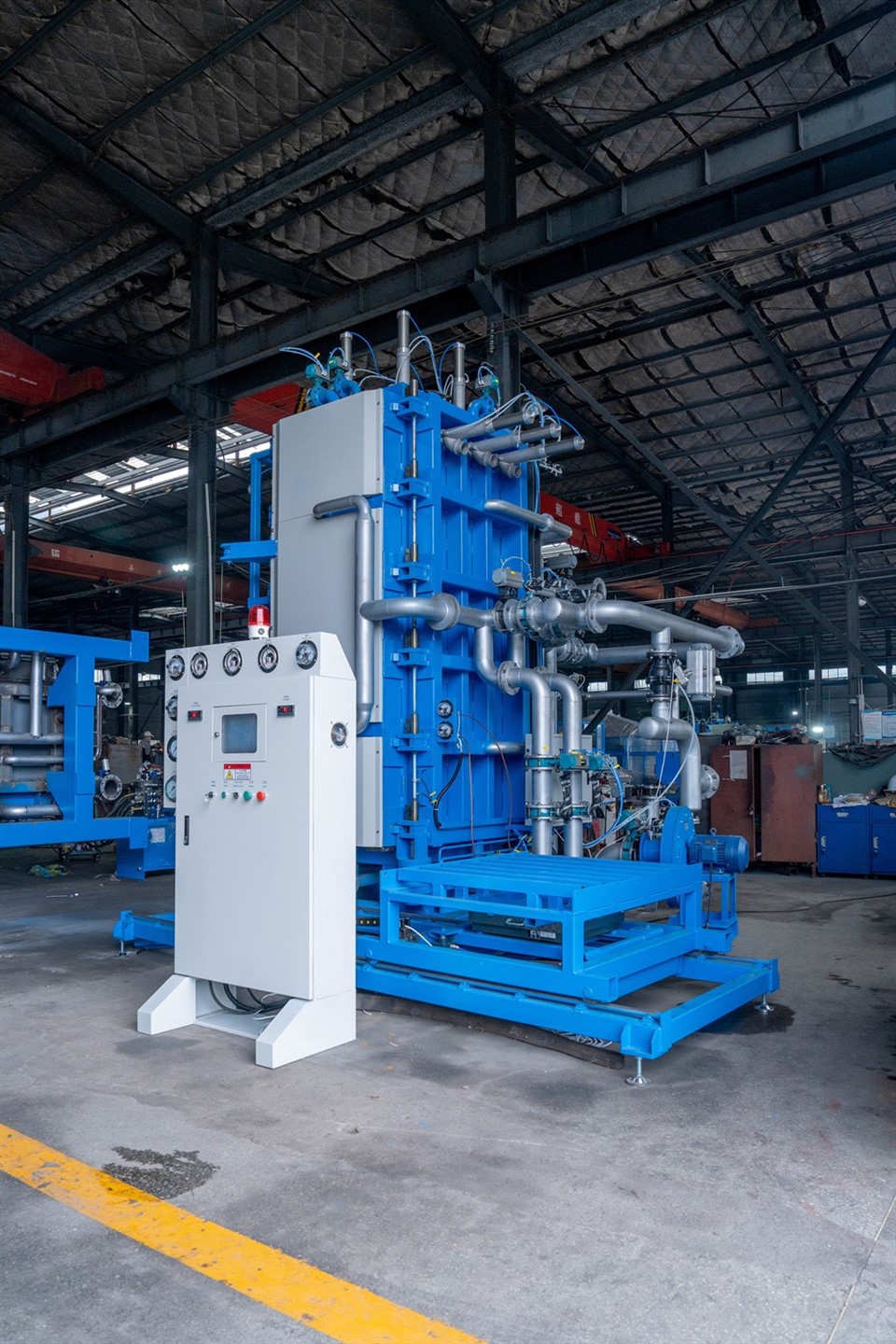

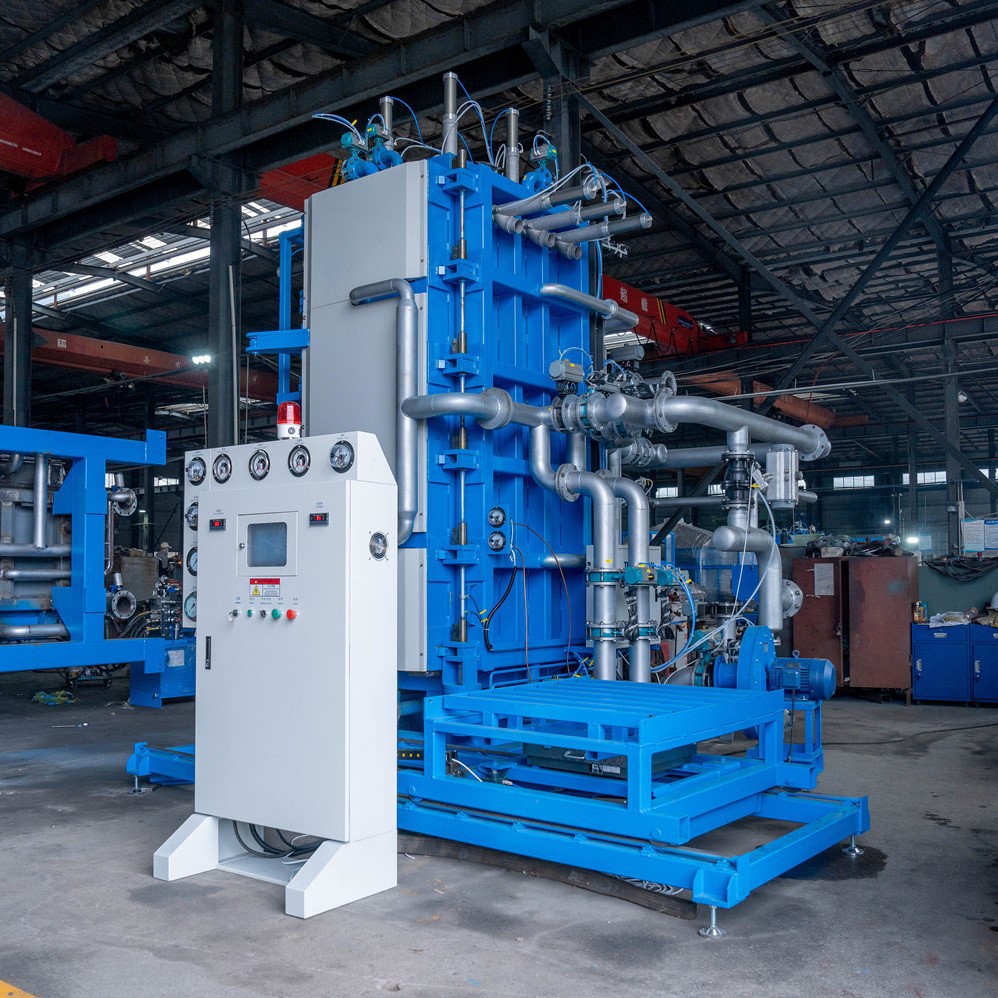

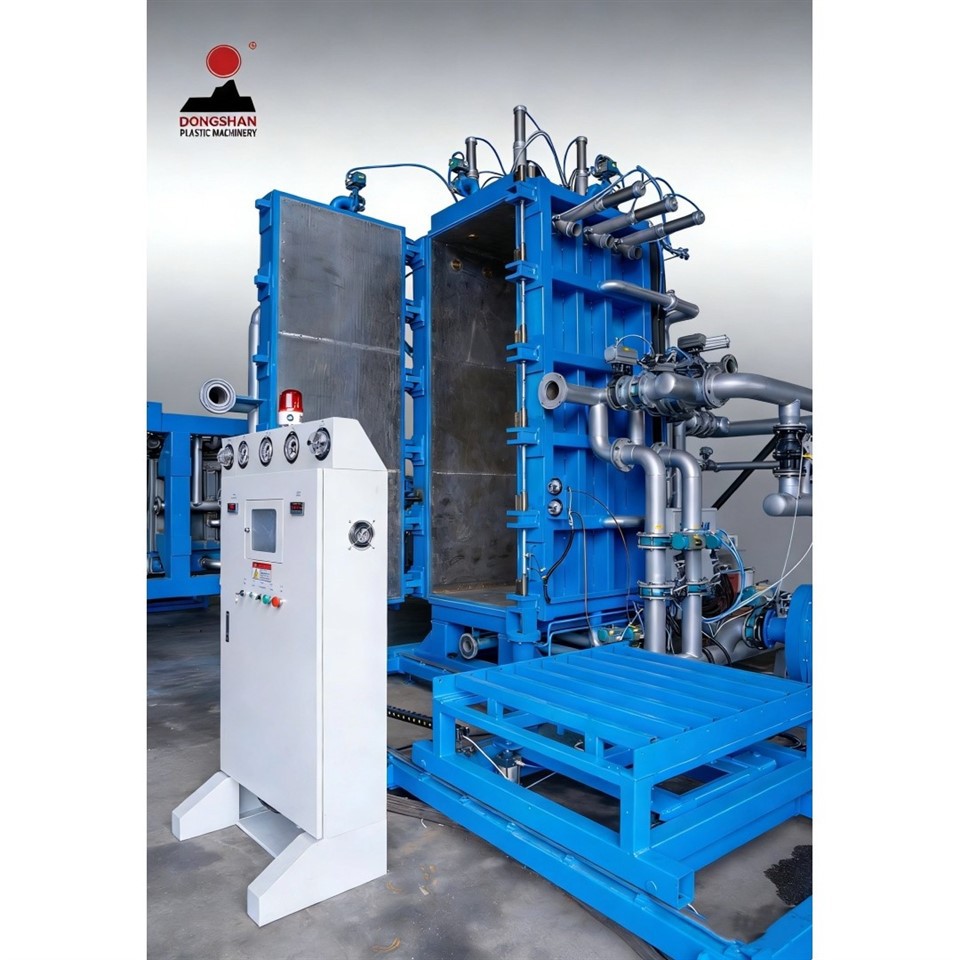

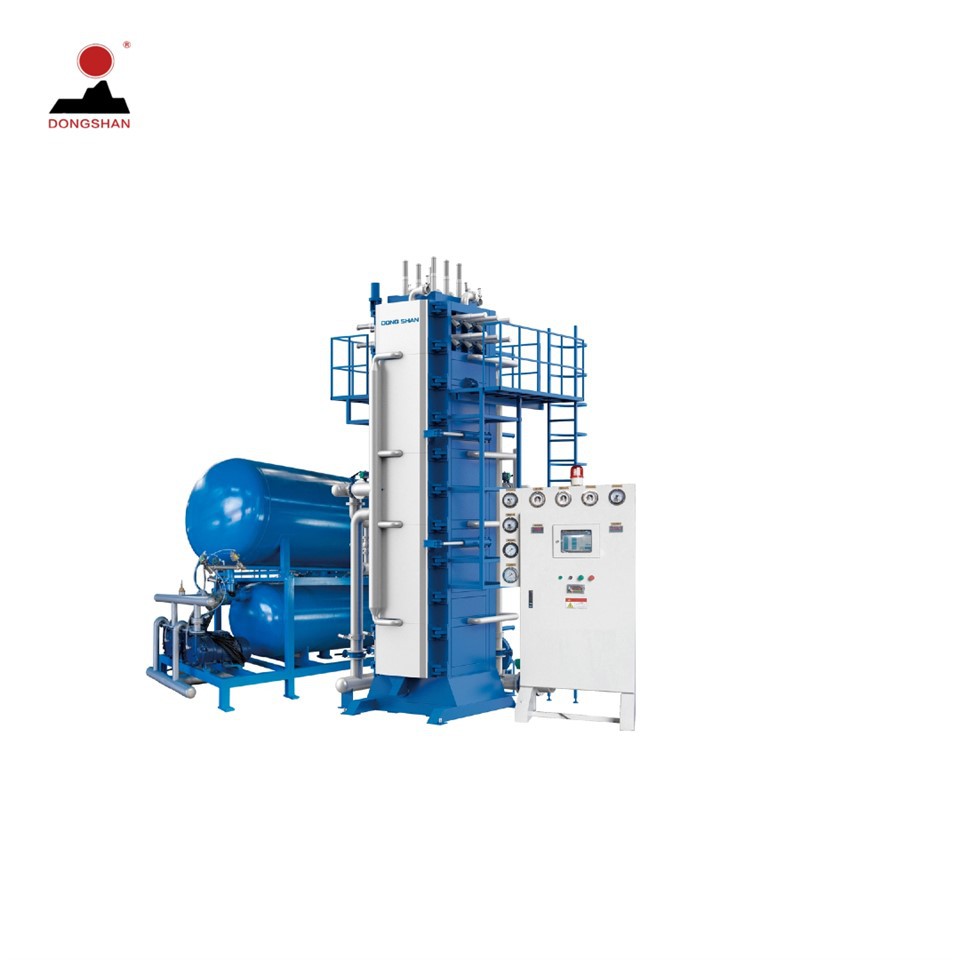

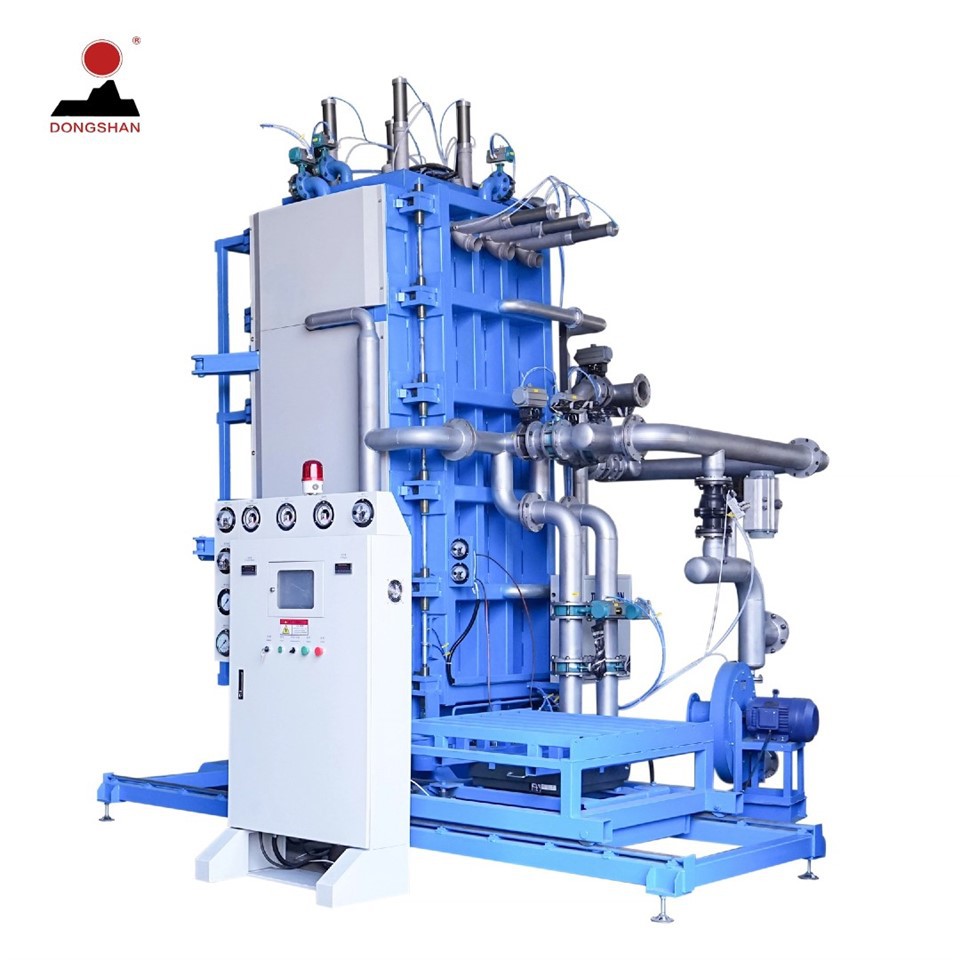

ICF Block Molding Machine

DSVBSA4000
Total Power:28.5kW
Capacity(15kg/m3):4min/cycle
Steam Consumption:60-80kg/cycle
Overall Size(L×W×H):6700x5600x8100mm
Weight: 19200KG

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of icf block molding machine in China, also supports customized service with low price. Welcome to wholesale high quality icf block molding machine for sale here from our factory. Contact us for pricelist.

Green Technology EPS ICF Block Molding Machine Reducing Energy Waste for Sustainable Construction Projects

The Green Technology EPS ICF Block Molding Machine is an advanced manufacturing solution designed to produce high-quality EPS Insulated Concrete Form (ICF) blocks for modern sustainable construction projects. Combining innovative energy-saving technology with intelligent automation, this machine helps manufacturers reduce energy waste while maintaining high production efficiency and excellent product quality.

Advantages

This vertical vacuum EPS block molding machine delivers stable, efficient and high-quality block forming with a heavy-duty structure and optimized steam system. The machine features a robust frame built with welded high-strength rectangular tubes and steel plates; its inner molds are treated with electric furnace stress-relieving annealing to enhance strength and operational safety. All mold frames undergo heat treatment to eliminate welding stress, effectively preventing deformation and ensuring long-term stable performance. After heat treatment, the surfaces are sandblasted to improve rust resistance and coating adhesion, providing strong corrosion protection and prolonging service life. For safe operation, the machine is fitted with 3 sets of German gauges and safety valves, and has passed multiple water pressure and steam tests to ensure stability and reliability.

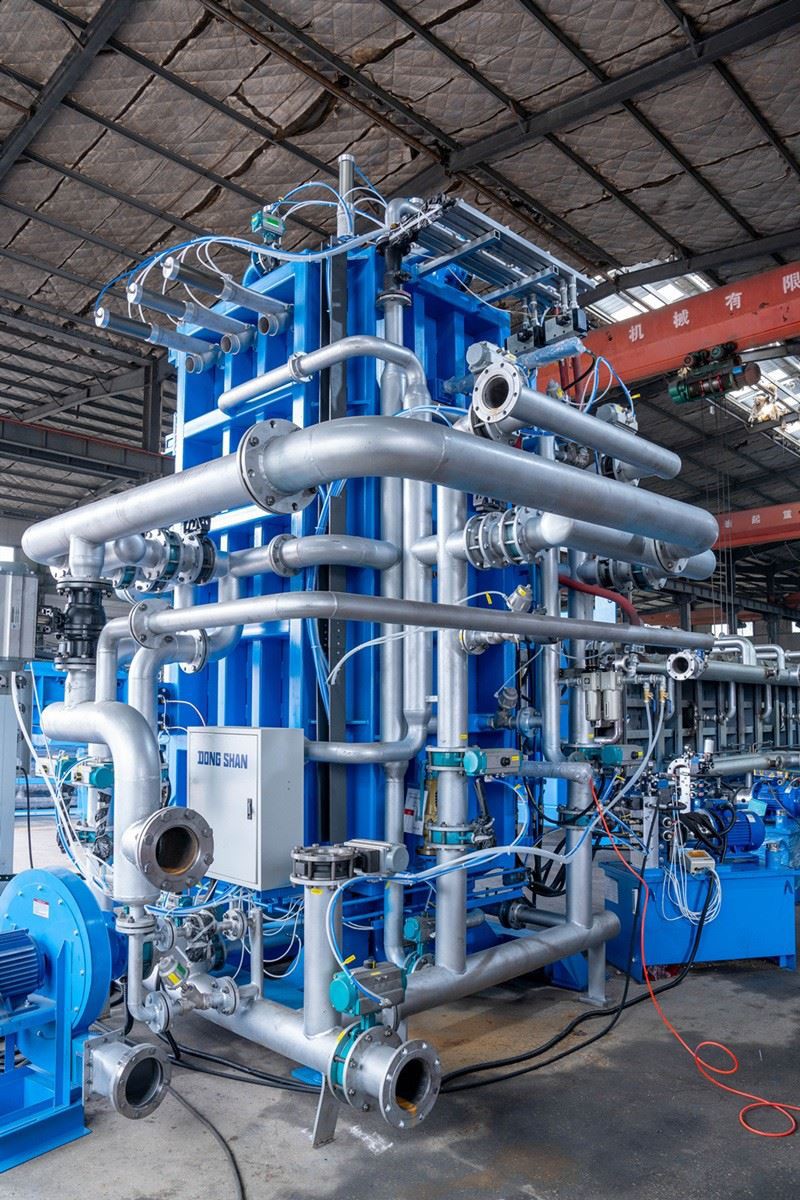

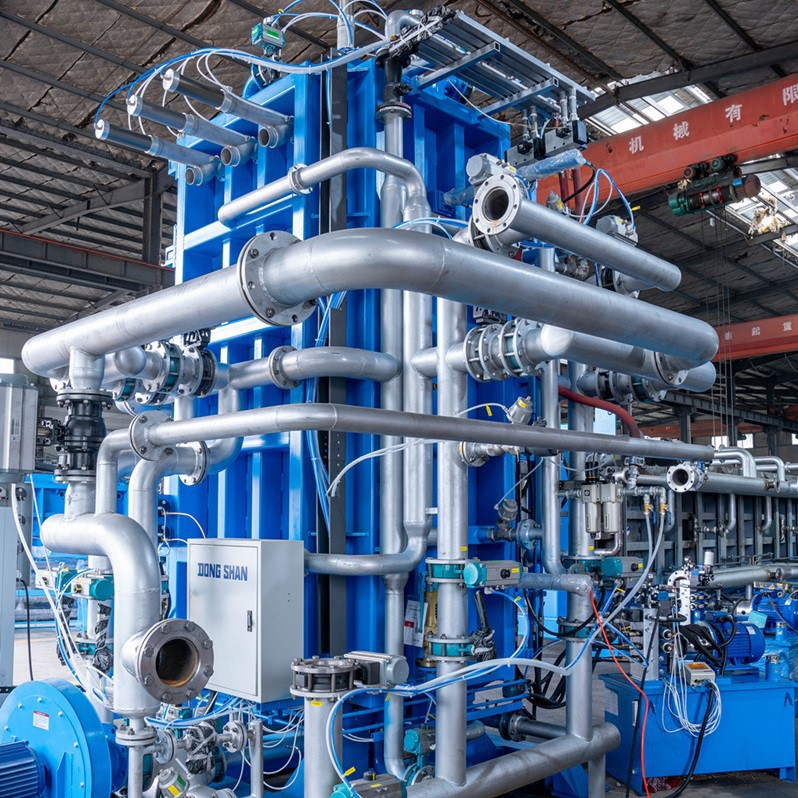

The advanced steam system greatly improves efficiency: 3 ball valves reduce steam consumption by 20% compared with a single large valve. Equipped with ISO-standard butterfly valves, the system runs more stably and durably. The 3D heating design ensures even heat penetration, shortening heating time and saving energy. The stainless steel platen is wear-resistant and high-pressure resistant, ideal for high-density block production and extending machine service life.

Performance Enhancement

Superior Blocks: Vertical mold ensures uniform steam flow, lowering moisture, speeding curing, and improving density-boosting downstream quality.

Energy & Output: Optimized heating/cooling cuts steam use and cycle time; reduces costs, raises hourly output vs. horizontal models.

Precise Sizing: Vertical platen adjustment enables ±1mm accuracy, minimizing waste and ensuring batch consistency.

Recycling Ready: Handles more recycled materials with stable quality via uniform vertical pressure, supporting green production.

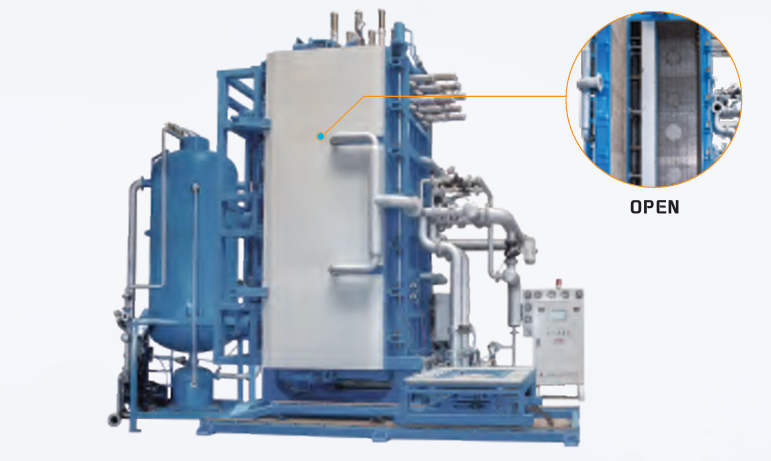

product-771-461

Core Advantages

As a new generation of block forming technology, the EPS vertical adjustable block molding machine surpasses horizontal models in efficiency, precision, and sustainability, boasting multi ple prominent advantages.

Design Features

Space-Saving: Compared with horizontal models, it occupies a smaller area, making it suitable for factories with limited space. Moreover, the vertical structure facili tates material flow and steam circulation.

Intelligent System

Upgraded Intelligent Management and Control: Equipped with an intelligent PLC system, it provides real-time production data visualization, predictive mainte nance alerts, and an improved fault self-diagnosis func tion, reducing downtime and making operation more convenient.
