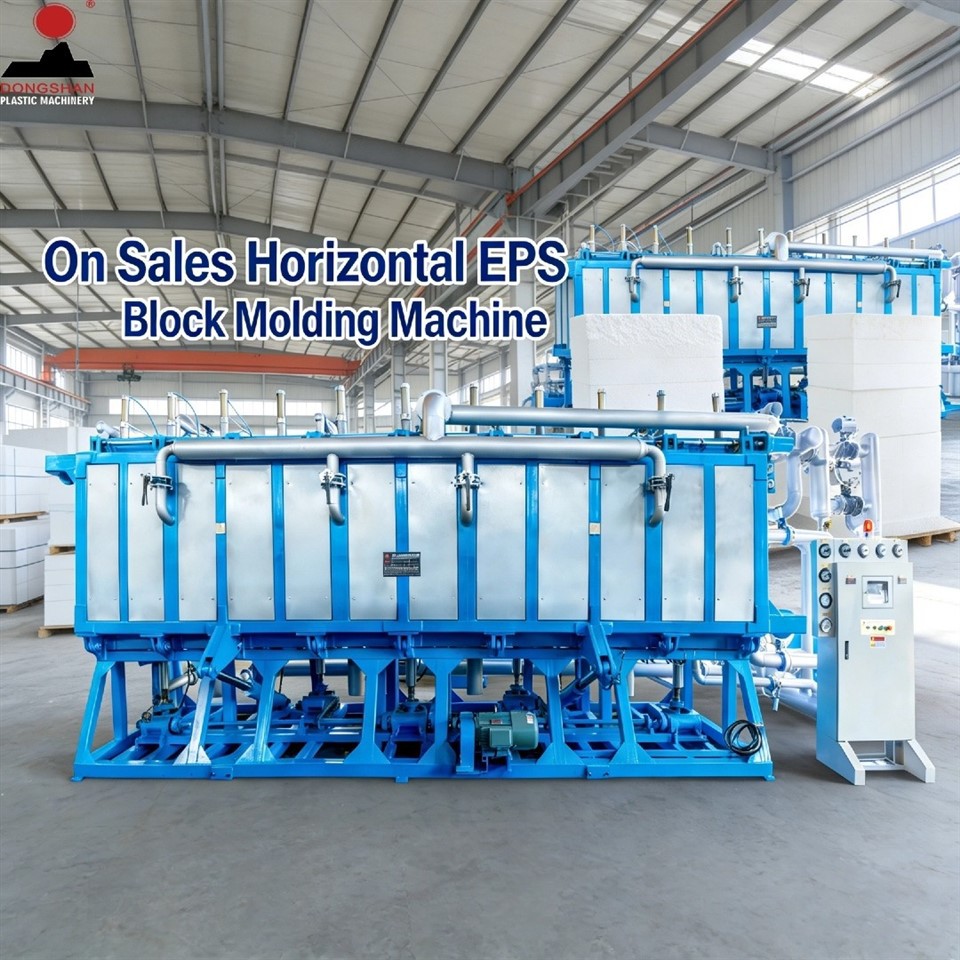

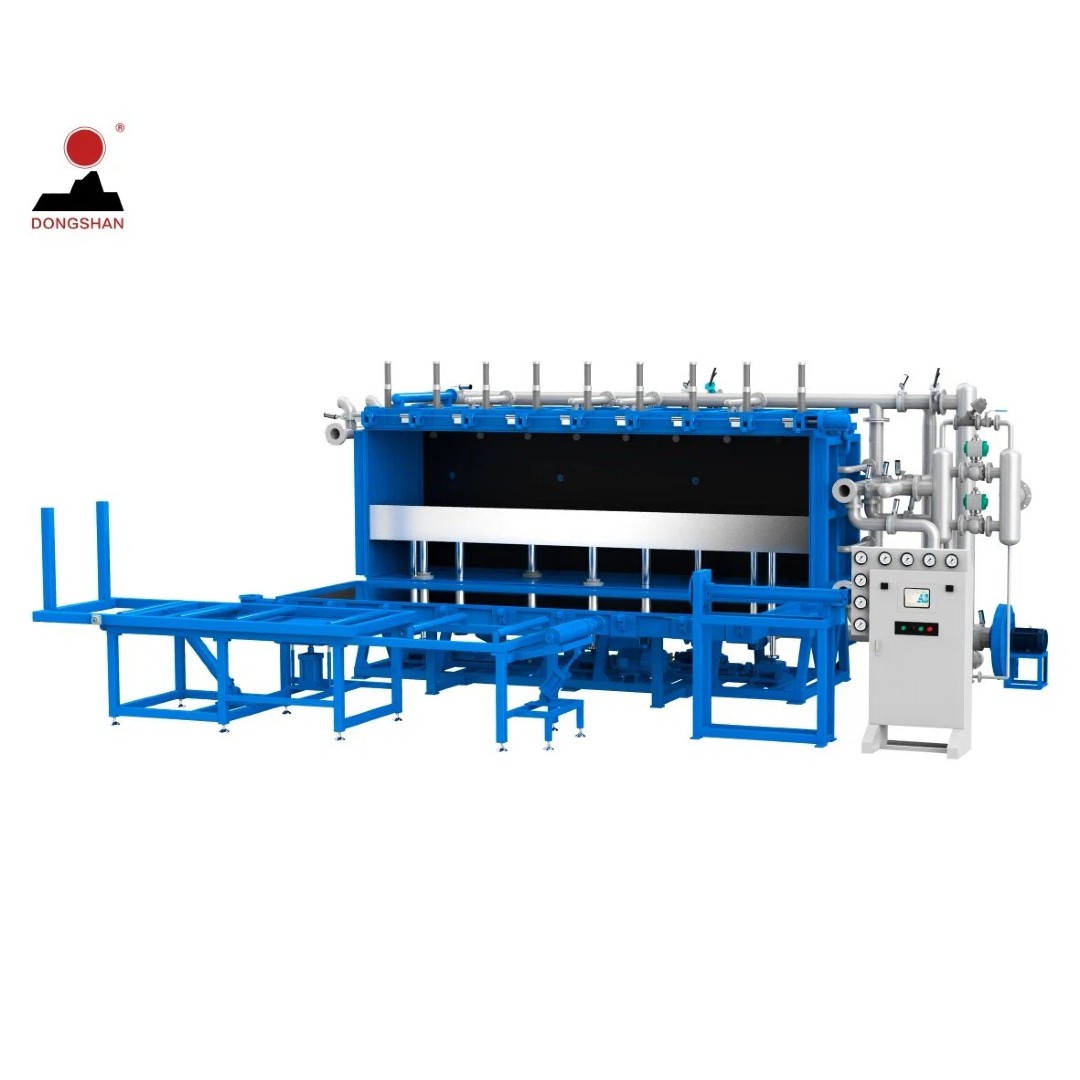

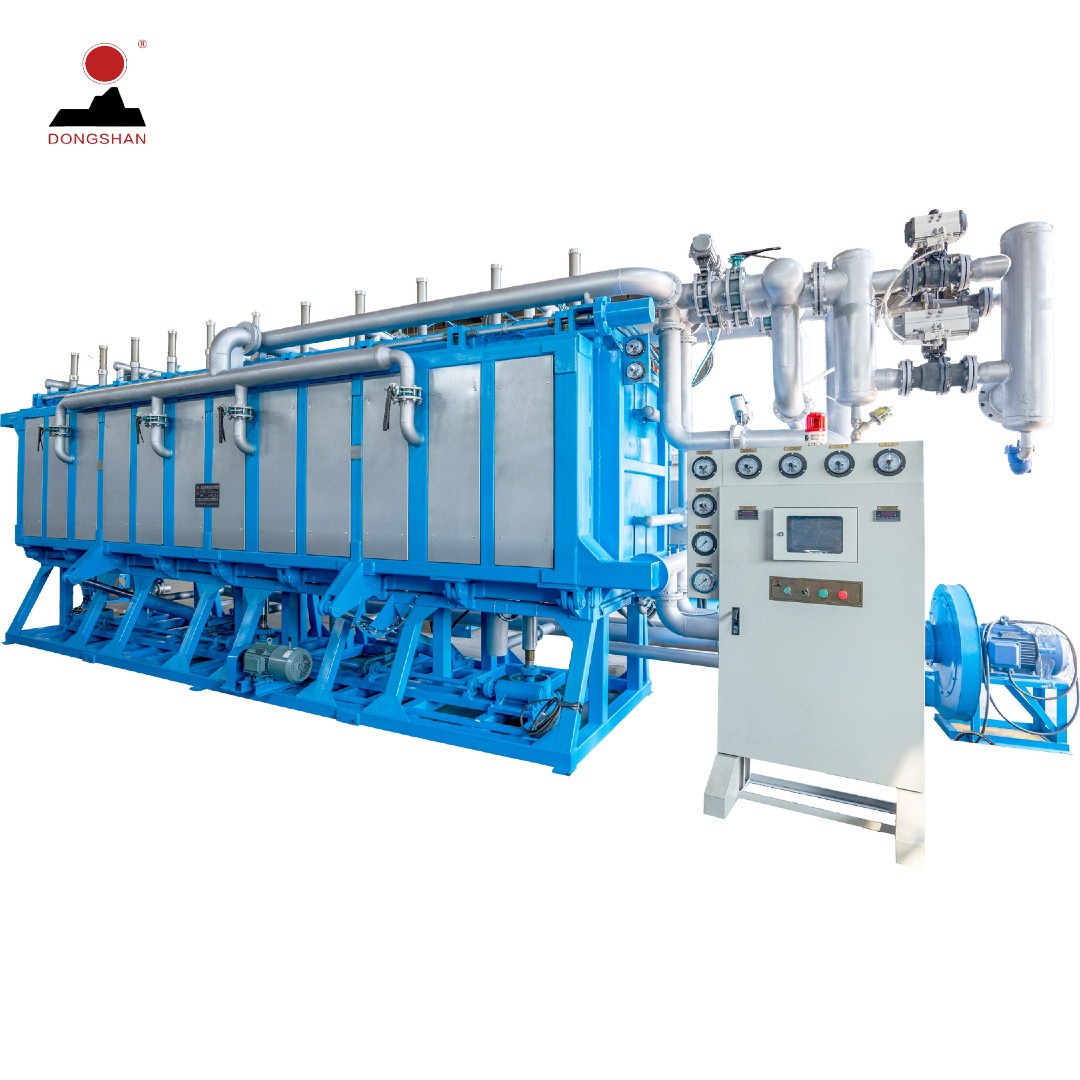

EPS Block Making Machine
Moukd cwvity Slze:2040×1020×1030mm
Block Sze:2000×1200×1000mm
Capacity @15kglm²:3 minkcyce
CornochedLoad Powar:1530KW
neral Dimansion0×W×H0:5700×4000×2800mm
Waigt:5000KG
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps block making machine in China, also supports customized service with low price. Welcome to wholesale high quality eps block making machine for sale here from our factory. Contact us for pricelist.
Industrial Grade EPS Block Making Machine for Consistent Quality in foam ICF Construction Systems
The Industrial Grade EPS Block Making Machine is specially applicated to deliver reliable and high-efficiency production of EPS blocks used in foam ICF (Insulated Concrete Form) construction systems. Built for demanding industrial environments, the machine equip with advanced molding device, intelligent automatic operating system, and durable mechanical construction to ensure consistent product quality and stable long-term operation.
Key Features
1. Consistent Block Quality
Advanced PLC control ensures precise regulation of steam, pressure, and temperature, resulting in uniform density and strong fusion throughout each EPS block-essential for reliable ICF construction performance.
2. Heavy-Duty Industrial Structure
Built with reinforced steel frames and high-strength components, the machine operates reliably under high pressure and continuous production conditions, ensuring long service life.
3. High Efficiency & Large Output
Optimized mold design and steam system improve heating efficiency and shorten cycle times, enabling high-capacity block production with reduced energy consumption.
4. Vacuum Cooling Technology
Integrated vacuum system accelerates cooling, reduces moisture content, and improves block stability, minimizing deformation and enhancing cutting performance.
5. Energy-Saving Operation

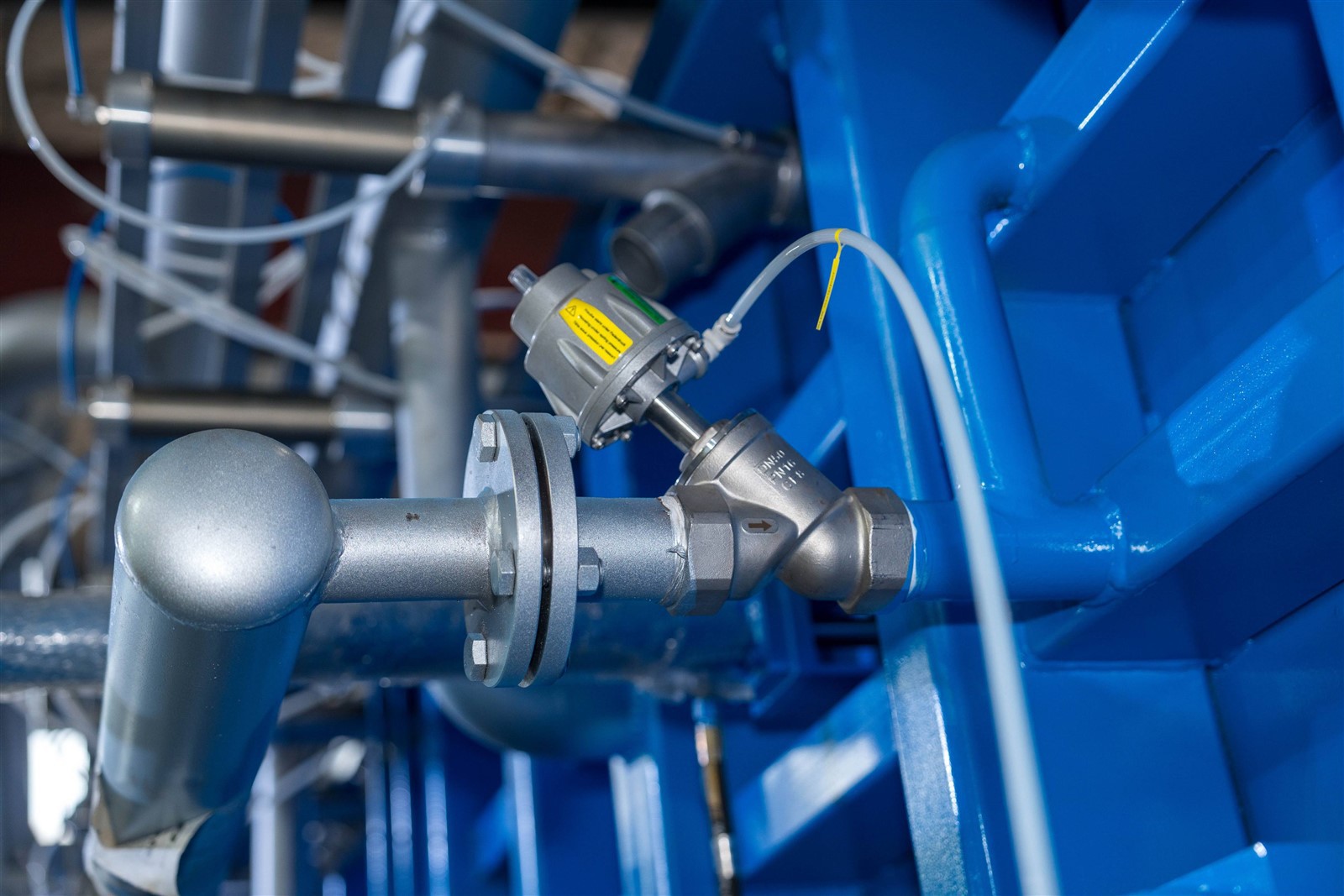

Efficient steam distribution and insulation design lower steam consumption and overall energy costs, making the machine suitable for cost-effective production.
6. User-Friendly Automation
Fully automated operation with a touchscreen interface allows easy parameter setting, real-time monitoring, and fault diagnostics, reducing labor intensity and human error.
Core Advantages
Fully Automatic and Efficient Production: Adopts cutting- edge fully automatic technol ogy, featuring high energy efficiency and low power consumption, providing an integrated solu tion for EPS block production.
Flexible Size Adjustment: Supports continuous adjustment in single dimension (depth/height) and double dimensions (depth + height), significantly enhancing production adaptability while reducing waste of edge materials and lowering material consumption.
Technical Characteristics
Precision Drive System: The moving platen achieves precise control of vertical displace ment through a rotating screw cylinder, ensuring smooth operation.
Intelligent Operation Interface: Equipped with an intuitive touch screen, allowing opera tors to conveniently set mold parameters, and the equipment automatically completes high- precision size adjustment, making it easy for novices to get started quickly.
Customization & Sustainability
Personalized Configuration: Can customize horizontal molding solutions according to customer needs to meet diverse production scenarios.
Recycled Material Adaptation: Optional dedicated program is available, supporting block size fine- tuning within the range of 0- 50mm, increasing the proportion of recycled materials used and practicing the concept of green manufacturing.
Intelligent Aids
Fault Self-Diagnosis: Advanced system detects issues, triggers alarms; cuts downtime.
Remote Monitoring: Real- time oversight of produc tion process.
Core Functions
- Automatic material filling and expansion
- Controlled steam heating and fusion
- Vacuum cooling and stabilization
- Automatic block discharge and cycle reset
Technical Specifications
| Item | Unit | DSHA2000 | DSHA3000 | DSHA4000 | DSHA6000 | DSHA8000 | |
| Mould cavty Sze | mm | 2080×(1240-800)×630 | 3080×(1240-800)×630 | 4100×(1240-800)×630 | 6120×(1240-800)×630 | 8140×1240×630 | |
| Bock SzR | mm | 2000×(1200-800)×600 | 3000×(1200-800)×600 | 4000×(1200-800)×600 | 6000×(1200-800)×600 | 8000×1200×600 | |
| Steam | Entry | hch/mm) | 5*(DN125) | 5"(DN125) | 6"(DN1500 | 8"(DN2000 | 8"(DN200) |
| Consumphion | kg(cyche | 25-45 | 45-65 | 60-85 | 95-120 | 115-160 | |
| Prassure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.5-0.8 | |
| Copressed Air | Entry | hch/mm) | 1.5*(DN40 | 1.5"(DN40 | 2"(DNS0) | 25"(DN65) | 3"(DN80) |
| Corsumphion | miyce | 1.5-2 | 1.5-2.5 | 1.8-2.5 | 2-3 | 2.5-3 | |
| Pressure | Mpa | 0.6-0.8 | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| VacumCoolng Water |
Entry | hch/mm | 1.5*DN40) | 1.5"(DN40 | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) |
| Corsumchion | mioycke | 0.4 | 0.6 | 0.8 | 1 | 2 | |
| Prassure | Mpa | 0.2-0.4 | 02-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
| Dralnage | VacumVert | hch/mm | 4*(DN100) | 5"(DN125) | 5"(DN125) | 5"(DN125) | 5"(DN125 |
| Sheam Vent | hch/mm) | 4*(DN100) | 6"(DN150) | 6"(DN1500 | 6"(DN150) | 8"(DN200) | |
| AIr Coolng Vent | hch(mm) | 4*(DN100) | 5"(DN125) | 6"(DN150 | 8"(DN200) | 8"(DN200 | |
| Capacity@15kglm² | mhkcyde | 4 | 6 | 7 | 8 | 8 | |
| Cornocted LoadPowar | KW | 20735 | 2035 | 2540 | 2951 | 3155 | |
| Overall Dimenslon(LxW×H0 | mm | 5700×400×3300 | 7200×4000×3500 | 11000×4500×3500 | 12600×4500×3500 | 15700*4600×3500 | |
| Wigft | KG | 8000 | 9500 | 12000 | 14000 | 18000 | |
