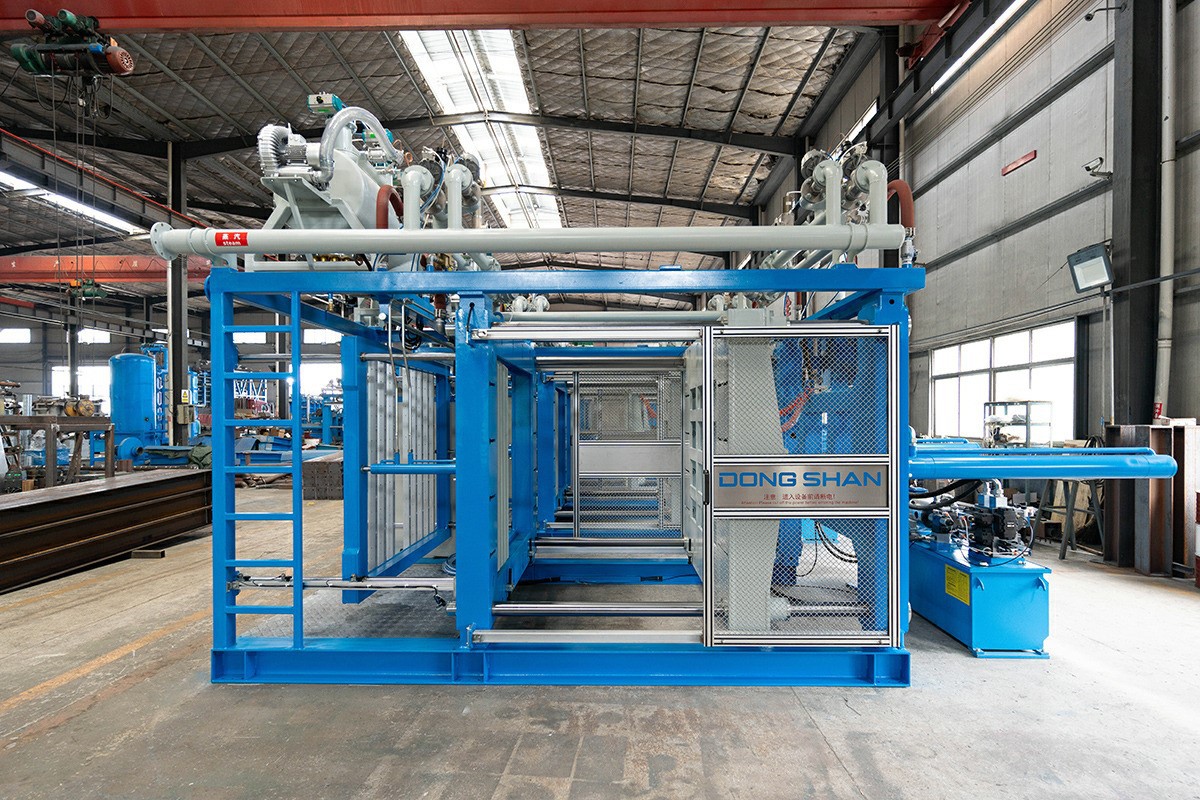

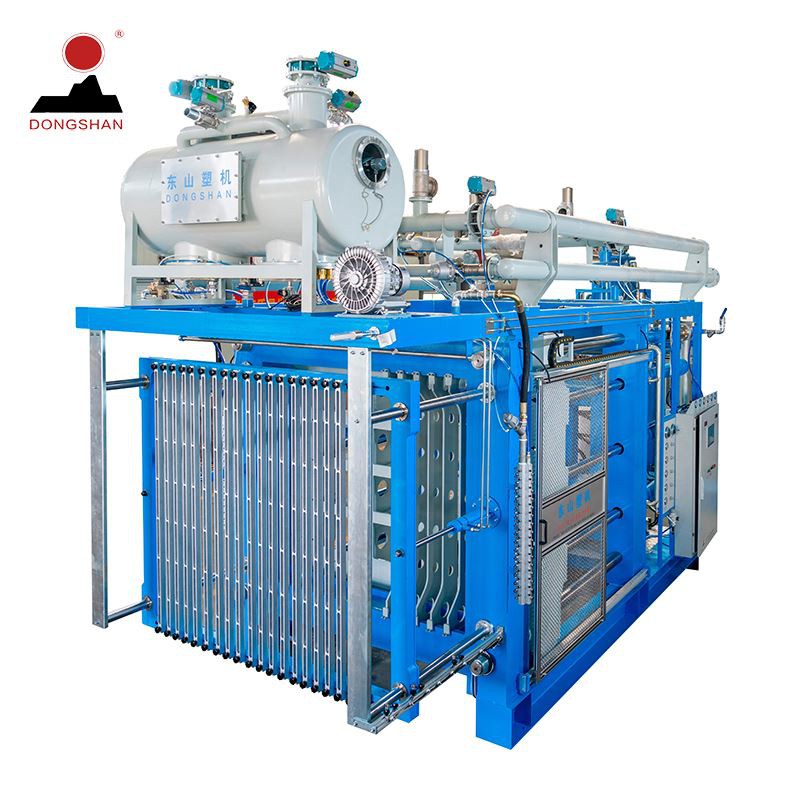

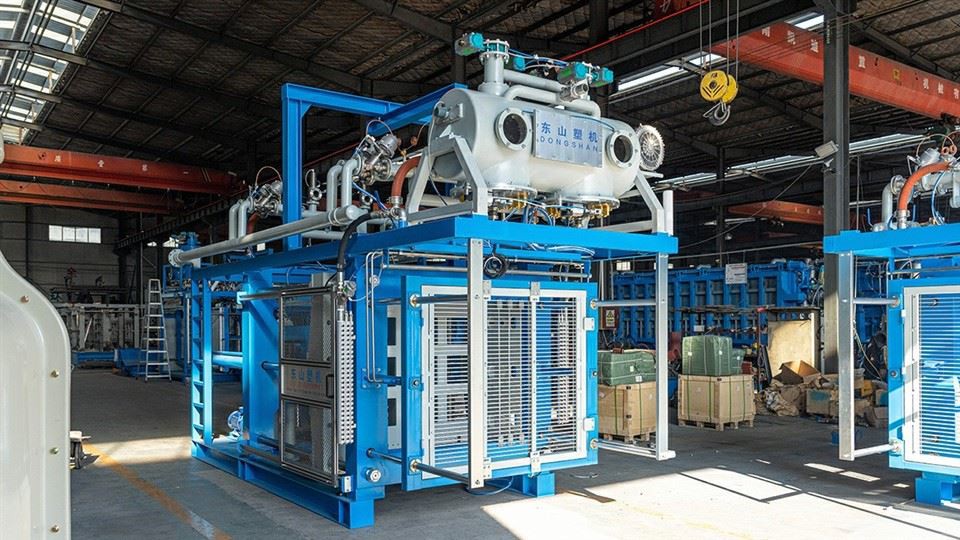

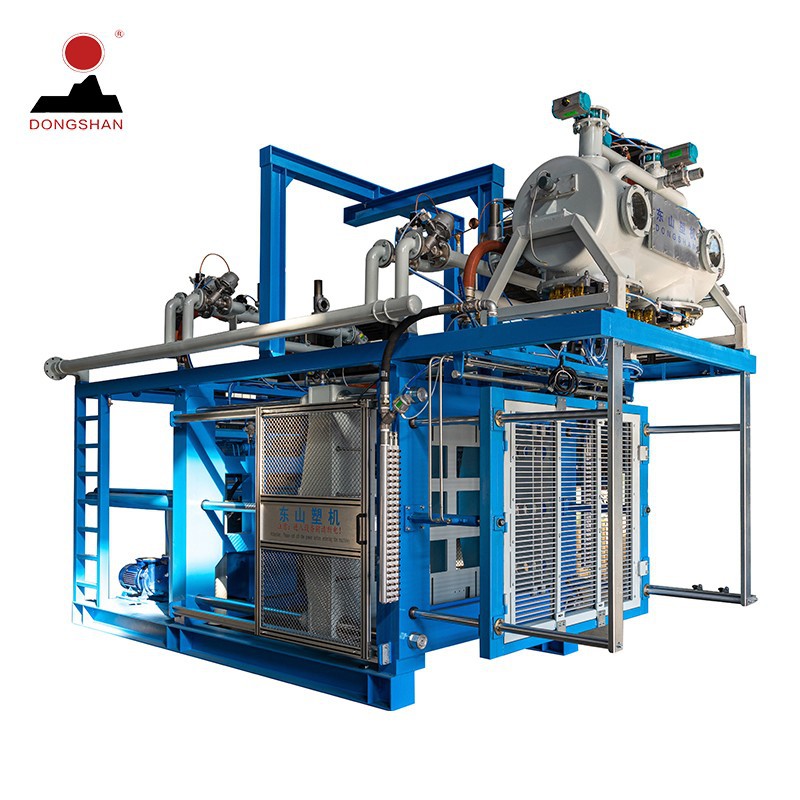

EPS Box Molding Machine

DSFHS 1070: 1070×870mm 400mm 6105×2560×4560mm 45-85slycle 7.80t
DSFHS1270: 1270×1070mm 400mm 6105×2760×4560mm 60-120stycle 11.0t

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps box molding machine in China, also supports customized service with low price. Welcome to wholesale high quality eps box molding machine for sale here from our factory. Contact us for pricelist.

Fully Automatic EPS Box Molding Machine in Styrofoam Production Line for Industrial Packaging Factory

With 30 years manufacturing experience in EPS industry, the Dongshan Fully Automatic EPS Box Molding Machine is the cornerstone of modern Styrofoam production lines. the entire cycle is fully automated and engineered for high-output industrial packaging factories, it delivers precision-molded solutions for electronics, appliances, and heavy-duty shipping requirements.

Our EPS shape molding machine is your go-to solution for high-quality EPS shaped products, perfect for packaging, insulation, and industrial parts. Built with a robust modular structure, it's 30% sturdier than standard models, ensuring stable, long-term operation and consistent product accuracy. The Korean Autonics encoder delivers precise control (±0.05mm error), while the quick-release movable top rod bracket simplifies mold changes and maintenance. Its leak-proof hydraulic system (120℃ resistant) and dual-valve steam control boost efficiency by 15% with stable pressure. Premium German and Japanese valves/filters prevent impurities and ensure reliable performance. The 50L horizontal feeding bucket with 4 discharge ports and automatic sensors enables uniform feeding, and the self-closing exhaust gun keeps production clean. Easy to operate, efficient, and durable, this machine helps you reduce costs and improve product quality, ideal for businesses of all sizes.

Features

Stress-Relieving & Non-Deforming Frame
High-Strength Structure
Superior Anti-Corrosion Protection

Multi-Level Safety System
20% Steam Savings
Fully Automatic PLC Control

Advantages Description

Efficient Production

It has a high production efficiency and can produce a large quantity of EPS foam sheets in a short time to meet the large-scale market demand.

Stable Quality

The advanced production process and precise control system ensure the stable quality of the sheets. The cell structure is uniform and fine, and performance indicators such as the density and strength of the sheets meet high standards.

Energy Saving and Consumption Reduction

The adoption of energy-saving heating and foaming technologies effectively reduces energy consumption and production costs, and also conforms to the development trend of environmental protection and energy conservation.

High Flexibility

According to different customer needs, the production parameters can be adjusted to produce EPS foam sheets of different thicknesses, densities, and specifications to adapt to diverse application scenarios.

Easy Operation

The operation interface of the equipment is user-friendly, making it easy for workers to operate and maintain. It reduces the technical requirements for operators and improves the convenience of production.

Technical Specifications

Iterm Description		unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
Mold dimensions		mm	1200X1000	1400X1200	1500X1300	1750X1450	1800X1600	2200X1600
Rear window size		mm	1100X900	1250X1100	1400X1200	1650X1350	1700X1450	2050X1450
Effective molding area		mm	1000X800	1200X1000	1300X1100	1550X1250	1600X1350	1950X1350
Maximum product height		mm	400	400	400	400	400	400
	Steam pipeline	DN	100	100	100	125	125	125
Steam System	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
	Working pressure	Kg/cm2	3~6	3~6	3~6	3~6	3~6	3~6
	pipe interface	DN	65	65	65	80	80	80
system	Working pressure	Kg/cm2	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water System	pipe interface	DN	80	80	80	100	100	100
	Working pressure	Kg/cm2	3～4	3～4	3～4	3～4	3～4	3～4
	Mold interface	DN	25X6	25X8	25X8	25X8	25X8	25X8
Sewage system	Vacuum interface	DN	100	100	100	125	125	125
	Solidify, relocate and drain water	DN	80	80	80	100	100	100
	Sewage pipe interface	DN	100	100	100	100	125	125
	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic system	Oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Oil pump size	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	clamping force	T	24	24	24	38	38	42
	Open and close mold oil cylinder	mm	100X1360/2	100X1360/2	100X1360/2	125X1360/2	125X1360/2	150X1360/2
	Demoulding oil cylinder	mm	50X30X450	50X30X450	50X30X450	50X30X450	50X30X450	70X40X450
	Bucket capacity	cube	0.15	0.3	0.3	0.3	0.3	0.3
system	Feeding fan	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Outlet	individual	32	50	50	50	50	64
Single unit power		Kw	7	7.7	7.7	9.7	9.7	13.2
External dimensions (width according to machine feet)		LXWXH	5250X1750X3785	5250X1950X3785	5250X2050X3885	5430X2250X4000	5450X2230X4000	5632X2620X4100
Single machine weight		T	4.5	5	6.5	7.5	8.5	9
