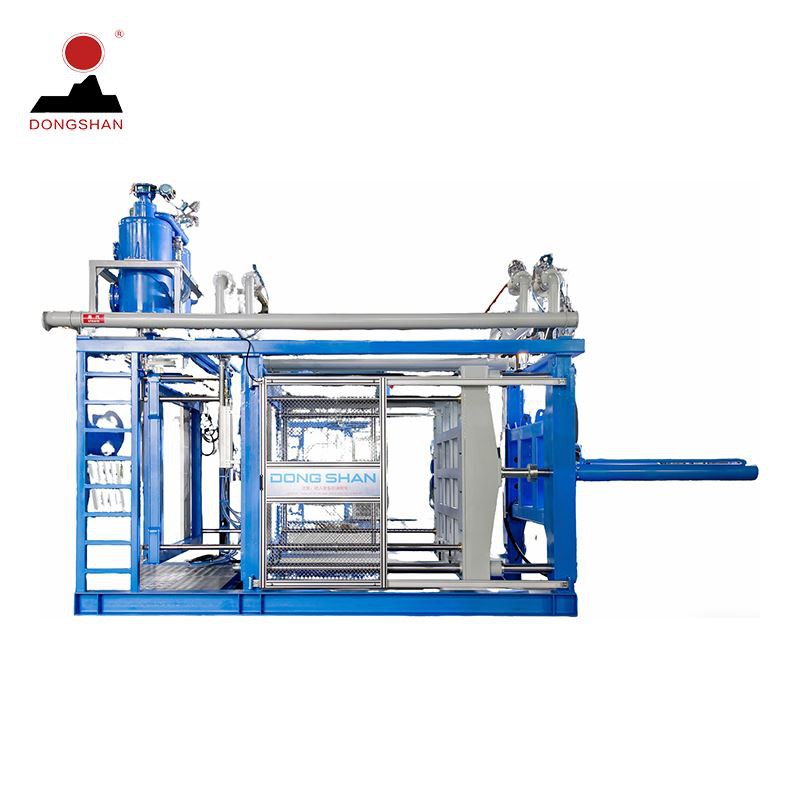

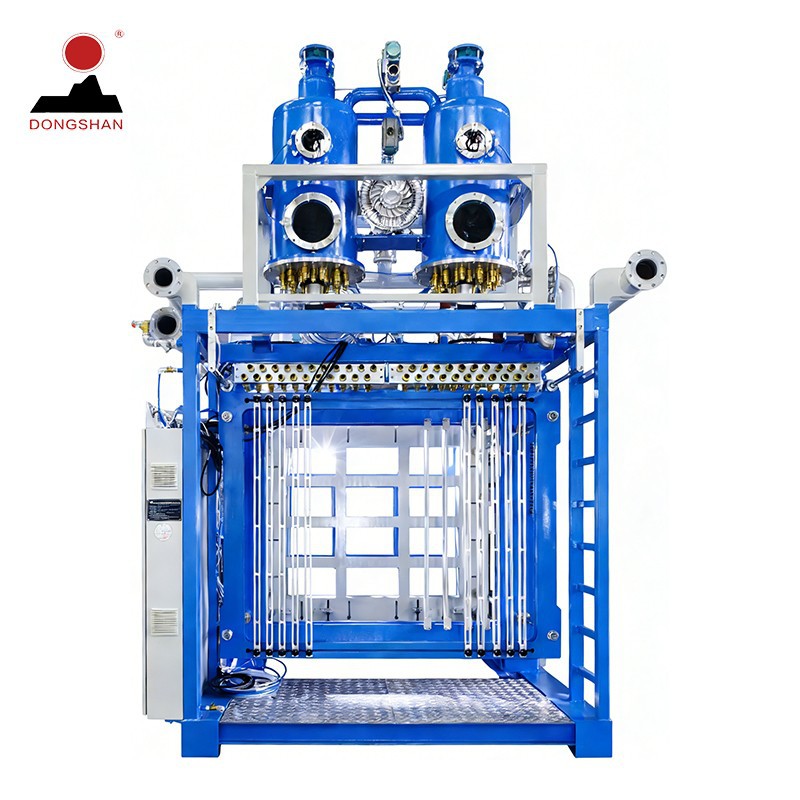

EPS Sandwich Panel Production Line
Capaciy: 20-25 MP/H
Power: 18.7 kw
Size: 1505×1830×1860 mm
Weight: 830 kg
Enterance Size: 870X500 mm
Mesh Size: Dn10 mm
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps sandwich panel production line in China, also supports customized service with low price. Welcome to wholesale high quality eps sandwich panel production line for sale here from our factory. Contact us for pricelist.

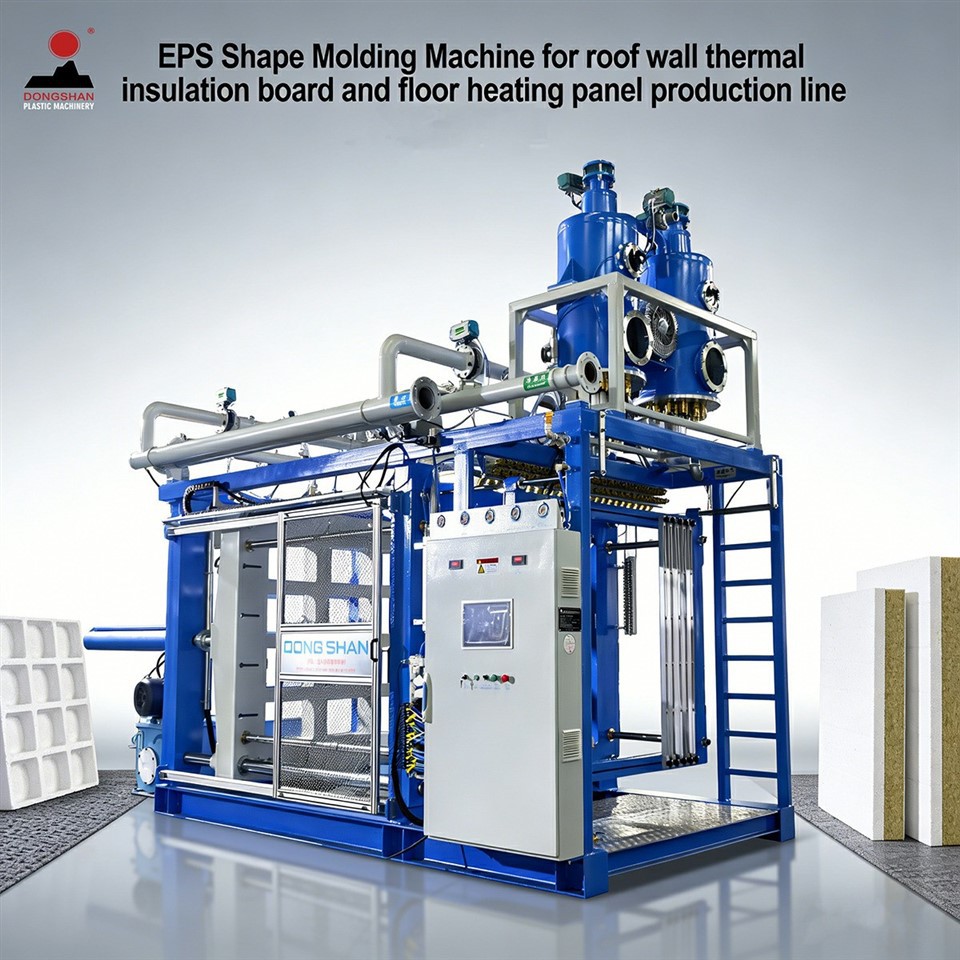

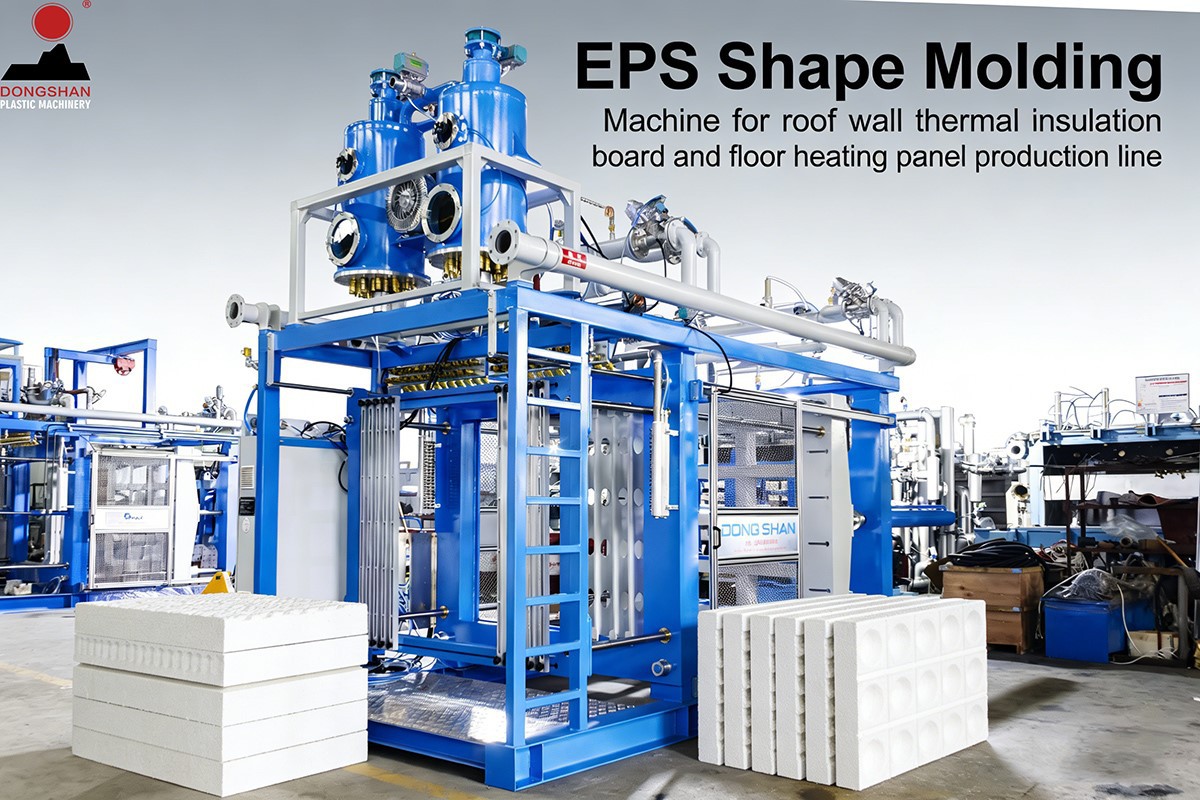

High Speed EPS Shape Molding Machine for Styrofoam Protective Plate making
The High-Speed EPS Shape Molding Machine is an elite-tier solution engineered for the rapid production of Styrofoam protective plates. Designed to meet the high-volume demands of the electronics and appliance packaging industries. With Precision Plate Molding and Enhanced Steam & Vacuum Efficiency, this machine combines mechanical velocity with uncompromising product consistency.
In response to the growing demand for high-quality thermal insulation products in the global market, the Customized Styrofoam Solutions EPS Foam Floor Heating Plate Making Machine emerges as a game-changer for manufacturers. This specialized production system is designed to help enterprises seize market opportunities by offering custom-engineered floor heating plates that cater to diverse customer needs. With its high-density thermal insulation capability, the machine produces boards that are highly competitive in the market, meeting the rising requirements for energy-saving and comfortable living environments. The eco-efficient vacuum technology not only reduces production costs but also aligns with the global trend of green development, enhancing product market appeal. Its intelligent operation ensures stable production and consistent product quality, helping manufacturers improve customer satisfaction and gain a competitive edge in the fiercely competitive thermal insulation market.
K series
X-A series
- Forward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
X-B series
- Backward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
Major Products
Technical Specifications
|
Iterm Description |
unit |
EPS1210 |
EPS1412 |
EPS1513 |
EPS1750 |
EPS1816 |
EPS2216 |
|
|
Mold dimensions |
mm |
1200X1000 |
1400X1200 |
1500X1300 |
1750X1450 |
1800X1600 |
2200X1600 |
|
|
Rear window size |
mm |
1100X900 |
1250X1100 |
1400X1200 |
1650X1350 |
1700X1450 |
2050X1450 |
|
|
Effective molding area |
mm |
1000X800 |
1200X1000 |
1300X1100 |
1550X1250 |
1600X1350 |
1950X1350 |
|
|
Maximum product height |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
|
Steam pipeline |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Steam System |
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Working pressure |
Kg/cm2 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
|
|
pipe interface |
DN |
65 |
65 |
65 |
80 |
80 |
80 |
|
system |
Working pressure |
Kg/cm2 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
|
Cooling Water System |
pipe interface |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
Working pressure |
Kg/cm2 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
|
|
Mold interface |
DN |
25X6 |
25X8 |
25X8 |
25X8 |
25X8 |
25X8 |
|
|
Sewage system |
Vacuum interface |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Solidify, relocate and drain water |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
|
Sewage pipe interface |
DN |
100 |
100 |
100 |
100 |
125 |
125 |
|
|
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Hydraulic system |
Oil pump motor |
Kw |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
|
Oil pump size |
L/min |
23+53 |
25+75 |
25+75 |
25+94 |
25+94 |
31+116 |
|
|
clamping force |
T |
24 |
24 |
24 |
38 |
38 |
42 |
|
|
Open and close mold oil cylinder |
mm |
100X1360/2 |
100X1360/2 |
100X1360/2 |
125X1360/2 |
125X1360/2 |
150X1360/2 |
|
|
Demoulding oil cylinder |
mm |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
70X40X450 |
|
|
Bucket capacity |
cube |
0.15 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
system |
Feeding fan |
Kw |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Outlet |
individual |
32 |
50 |
50 |
50 |
50 |
64 |
|
Single unit power |
Kw |
7 |
7.7 |
7.7 |
9.7 |
9.7 |
13.2 |
|
|
External dimensions (width according to machine feet) |
LXWXH |
5250X1750X3785 |
5250X1950X3785 |
5250X2050X3885 |
5430X2250X4000 |
5450X2230X4000 |
5632X2620X4100 |
|
|
Single machine weight |
T |
4.5 |
5 |
6.5 |
7.5 |
8.5 |
9 |
|
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
Why Choose Us
Certifications and Awards
the final view of project
Exhibitions with Global Customers
