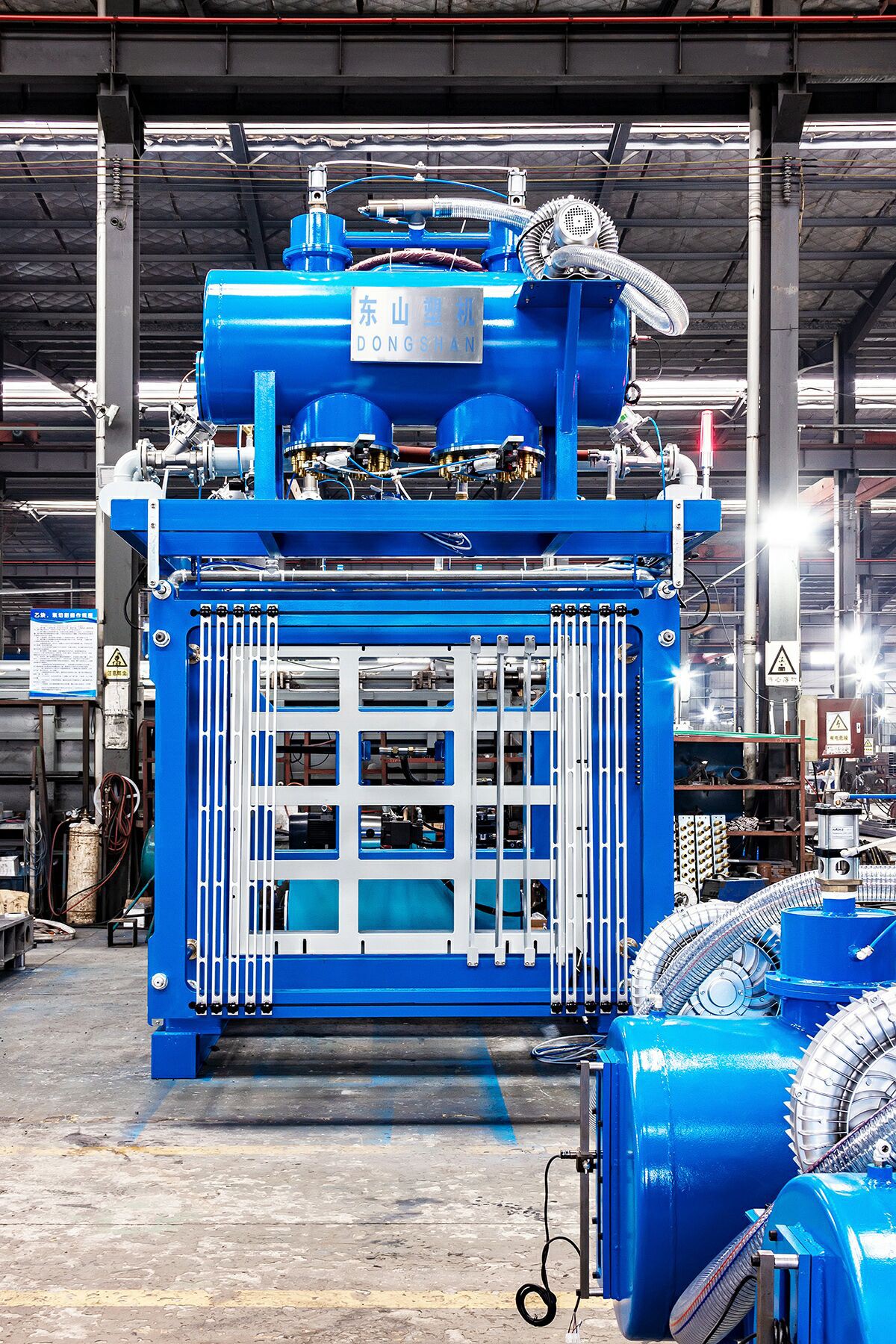

EPS Fruit Box Making Machine

EPS1412
OD of Mod: 1400X1200 mm
Rear Wrdow Siz8: 1250X1100 mm
Single Mactocr Powar: 7.7Kw
Outar Size(LxW×H0): 5250×1950×3785 mm
Weght: 5T

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps fruit box making machine in China, also supports customized service with low price. Welcome to wholesale high quality eps fruit box making machine for sale here from our factory. Contact us for pricelist.

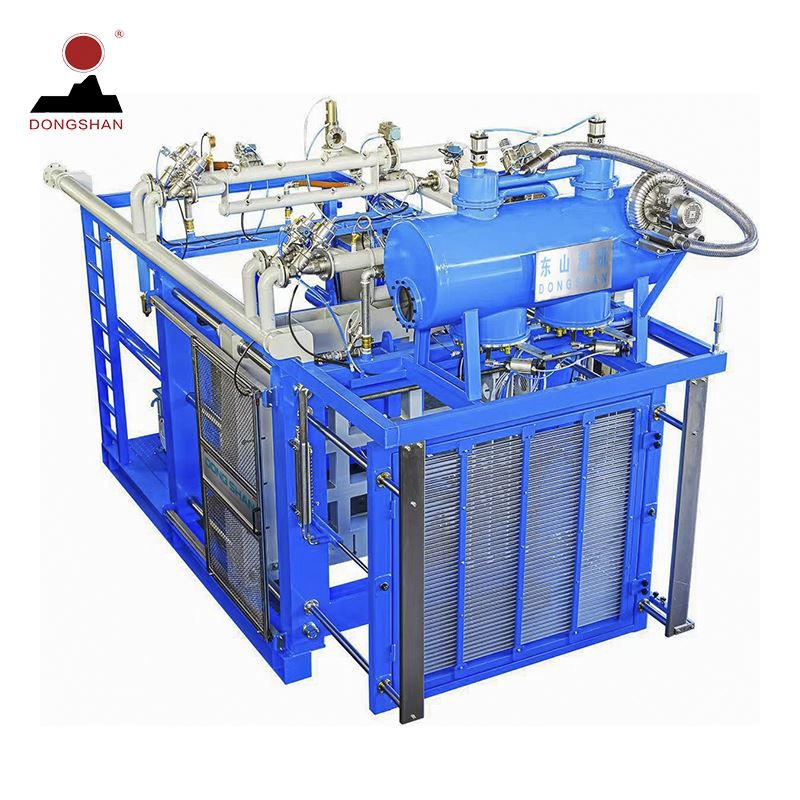

Energy Efficient foam Shape Molding equipment EPS Fruit Box Making Machine for cold fresh package

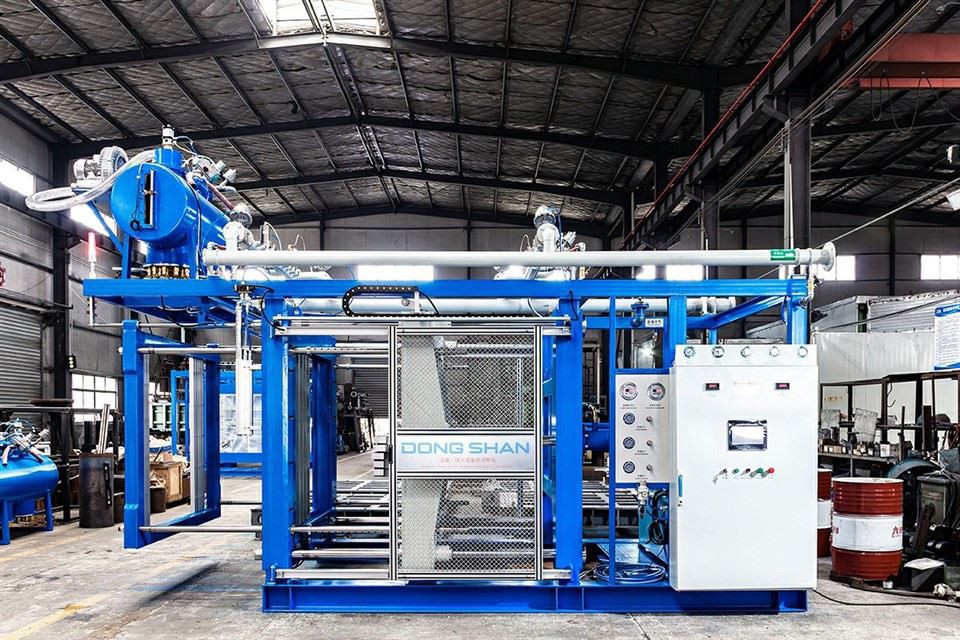

The Energy Efficient Foam Shape Molding Equipment – EPS Fruit Box Making Machine is widely used for the production of high-quality EPS fruit boxes used in cold-chain and fresh food packaging. Equips with advanced molding technology and energy-saving systems, this machine provides reliable performance, efficient production, and consistent product quality for modern packaging manufacturers.

1. Robust Structural & Mechanical Engineering

Scientific Chassis Design: The equipment body is engineered for maximum rigidity, ensuring vibration-free operation and structural integrity even under continuous high-pressure molding cycles.

Precision Travel Control: Utilizing Korean Autonics encoders, the machine achieves micron-level accuracy in mechanical movement, ensuring consistent product dimensions across thousands of cycles.

Optimized Maintenance: The "Convenient Design" of the movable top-rod fixed bracket allows for rapid mold adjustments and simplified maintenance, reducing factory downtime.

2. Advanced Steam & Hydraulic Thermal Management

Dual-Valve Steam Logic: Unlike standard single-valve systems, our dual-valve control stabilizes internal pressure more effectively. This ensures deeper heat penetration for perfect bead fusion while significantly reducing total steam consumption.

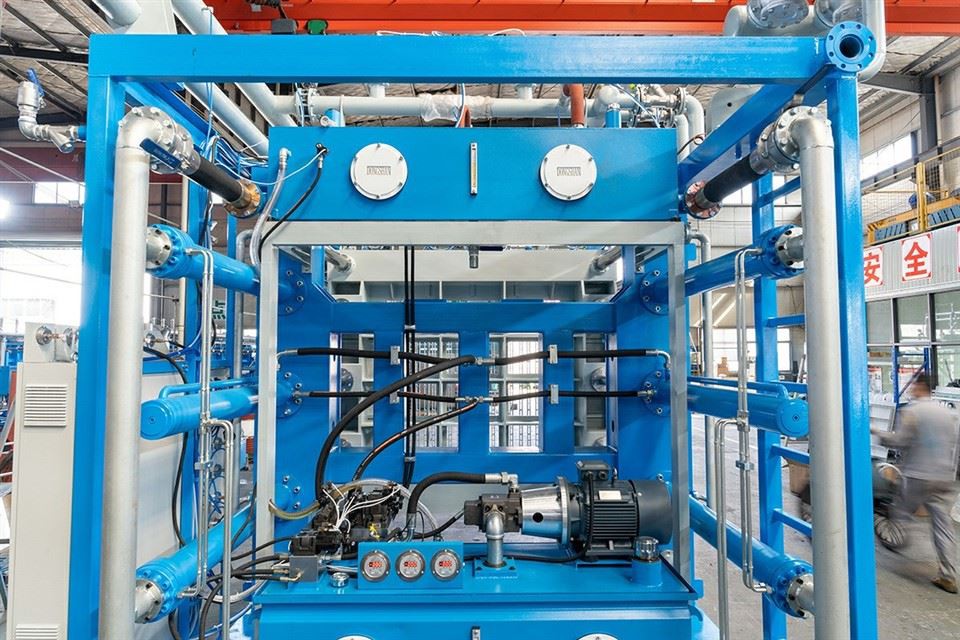

High-Temperature Hydraulic Integrity: The hydraulic system utilizes specialized materials and sealing solutions designed to withstand extreme thermal stress, eliminating the risk of leaks and ensuring consistent clamping force.

3. Intelligent Precision Control & Filtration

Elite Component Integration: The machine features German Burkert solenoid valves for instantaneous response times and Japanese SMC precision filters to ensure the air and steam lines remain free of contaminants.

Smart Feeding System: * Horizontal Material Hopper: Designed for uniform material flow through multiple discharge ports.

Advanced Sensing: High-precision liquid level sensors prevent "dry cycles" or overfilling.

Self-Closing Exhaust Guns: Equipped with advanced feeding guns that automatically vent air during filling to prevent pressure pockets, ensuring every fruit box is molded with uniform density.

Features

Stress-Relieving & Non-Deforming Frame
High-Strength Structure
Superior Anti-Corrosion Protection

Multi-Level Safety System
20% Steam Savings
Fully Automatic PLC Control

Advantages Description

Efficient Production

It has a high production efficiency and can produce a large quantity of EPS foam sheets in a short time to meet the large-scale market demand.

Stable Quality

The advanced production process and precise control system ensure the stable quality of the sheets. The cell structure is uniform and fine, and performance indicators such as the density and strength of the sheets meet high standards.

Energy Saving and Consumption Reduction

The adoption of energy-saving heating and foaming technologies effectively reduces energy consumption and production costs, and also conforms to the development trend of environmental protection and energy conservation.

High Flexibility

According to different customer needs, the production parameters can be adjusted to produce EPS foam sheets of different thicknesses, densities, and specifications to adapt to diverse application scenarios.

Easy Operation

The operation interface of the equipment is user-friendly, making it easy for workers to operate and maintain. It reduces the technical requirements for operators and improves the convenience of production.

Technical Specifications

Iterm Description		unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
Mold dimensions		mm	1200X1000	1400X1200	1500X1300	1750X1450	1800X1600	2200X1600
Rear window size		mm	1100X900	1250X1100	1400X1200	1650X1350	1700X1450	2050X1450
Effective molding area		mm	1000X800	1200X1000	1300X1100	1550X1250	1600X1350	1950X1350
Maximum product height		mm	400	400	400	400	400	400
	Steam pipeline	DN	100	100	100	125	125	125
Steam System	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
	Working pressure	Kg/cm2	3~6	3~6	3~6	3~6	3~6	3~6
	pipe interface	DN	65	65	65	80	80	80
system	Working pressure	Kg/cm2	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water System	pipe interface	DN	80	80	80	100	100	100
	Working pressure	Kg/cm2	3～4	3～4	3～4	3～4	3～4	3～4
	Mold interface	DN	25X6	25X8	25X8	25X8	25X8	25X8
Sewage system	Vacuum interface	DN	100	100	100	125	125	125
	Solidify, relocate and drain water	DN	80	80	80	100	100	100
	Sewage pipe interface	DN	100	100	100	100	125	125
	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic system	Oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Oil pump size	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	clamping force	T	24	24	24	38	38	42
	Open and close mold oil cylinder	mm	100X1360/2	100X1360/2	100X1360/2	125X1360/2	125X1360/2	150X1360/2
	Demoulding oil cylinder	mm	50X30X450	50X30X450	50X30X450	50X30X450	50X30X450	70X40X450
	Bucket capacity	cube	0.15	0.3	0.3	0.3	0.3	0.3
system	Feeding fan	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Outlet	individual	32	50	50	50	50	64
Single unit power		Kw	7	7.7	7.7	9.7	9.7	13.2
External dimensions (width according to machine feet)		LXWXH	5250X1750X3785	5250X1950X3785	5250X2050X3885	5430X2250X4000	5450X2230X4000	5632X2620X4100
Single machine weight		T	4.5	5	6.5	7.5	8.5	9
