Automotive EPS Parts Forming Machine
Max Cutting Size: 2000~6000X1300X1300 mm
Min.Cutting Thickness: 15 mm
Cutting Speed: 0.4~1 m/min
Max.Wires In Horizontal: 32 piecs
Max.Wires In Cross Vertical: 10 piecs
Wires In Cross Cutting: 1 piecs
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of automotive eps parts forming machine in China, also supports customized service with low price. Welcome to wholesale high quality automotive eps parts forming machine for sale here from our factory. Contact us for pricelist.

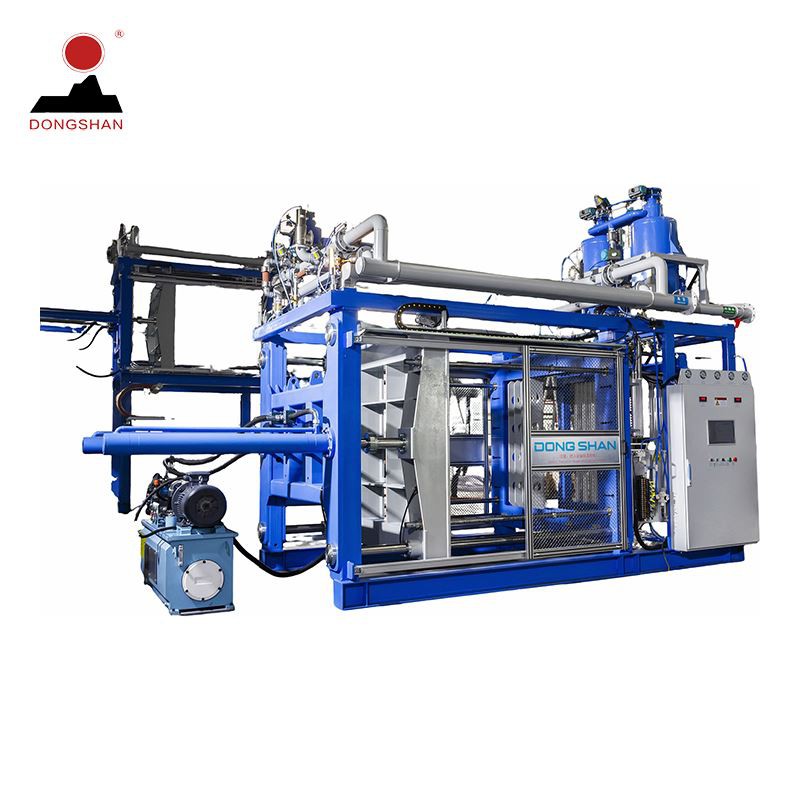

Customized Smart Automotive EPS Parts Forming Machine with new molding technology and Intelligent Operating System
Next-Gen EPS Solutions for High-Precision Automotive Manufacturing
The Customized Smart Automotive EPS Parts Forming Machine is a cutting-edge production powerhouse designed specifically for the rigorous quality and safety standards of the automotive industry. Integrating pioneering molding technology with a state-of-the-art Intelligent Operating System, it provides Tier-1 suppliers with unparalleled precision for components like bumper cores, energy-absorbing pads, and interior structural parts.
Positional Accuracy:
Delivers a rapid ≤0.1ms response time and a positioning tolerance of ±0.05mm, ensuring perfect alignment for complex geometries.
01
Molding Interface:
Features a quick-release movable top-rod bracket with a flexible stroke adjustment range of 0–100mm, allowing for rapid mold transitions and versatile product depth.
02
Modular Heavy-Duty Body:
Constructed from high-strength, reinforced steel plates. The specialized welding process yields a 30% increase in structural rigidity compared to standard frames, eliminating mechanical fatigue during high-pressure cycles.
03
High-Capacity Hopper:
A 50L horizontal stainless steel bucket featuring four independent discharge ports for uniform material distribution.
04
Exhaust Optimization:
Equipped with self-closing exhaust feeding guns that eliminate back-pressure during the fill cycle, ensuring maximum block density and surface smoothness.
05
K series
X-A series
- Forward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
X-B series
- Backward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
Major Products
Technical Specifications
|
Iterm Description |
unit |
EPS1210 |
EPS1412 |
EPS1513 |
EPS1750 |
EPS1816 |
EPS2216 |
|
|
Mold dimensions |
mm |
1200X1000 |
1400X1200 |
1500X1300 |
1750X1450 |
1800X1600 |
2200X1600 |
|
|
Rear window size |
mm |
1100X900 |
1250X1100 |
1400X1200 |
1650X1350 |
1700X1450 |
2050X1450 |
|
|
Effective molding area |
mm |
1000X800 |
1200X1000 |
1300X1100 |
1550X1250 |
1600X1350 |
1950X1350 |
|
|
Maximum product height |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
|
Steam pipeline |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Steam System |
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Working pressure |
Kg/cm2 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
|
|
pipe interface |
DN |
65 |
65 |
65 |
80 |
80 |
80 |
|
system |
Working pressure |
Kg/cm2 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
|
Cooling Water System |
pipe interface |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
Working pressure |
Kg/cm2 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
|
|
Mold interface |
DN |
25X6 |
25X8 |
25X8 |
25X8 |
25X8 |
25X8 |
|
|
Sewage system |
Vacuum interface |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Solidify, relocate and drain water |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
|
Sewage pipe interface |
DN |
100 |
100 |
100 |
100 |
125 |
125 |
|
|
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Hydraulic system |
Oil pump motor |
Kw |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
|
Oil pump size |
L/min |
23+53 |
25+75 |
25+75 |
25+94 |
25+94 |
31+116 |
|
|
clamping force |
T |
24 |
24 |
24 |
38 |
38 |
42 |
|
|
Open and close mold oil cylinder |
mm |
100X1360/2 |
100X1360/2 |
100X1360/2 |
125X1360/2 |
125X1360/2 |
150X1360/2 |
|
|
Demoulding oil cylinder |
mm |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
70X40X450 |
|
|
Bucket capacity |
cube |
0.15 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
system |
Feeding fan |
Kw |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Outlet |
individual |
32 |
50 |
50 |
50 |
50 |
64 |
|
Single unit power |
Kw |
7 |
7.7 |
7.7 |
9.7 |
9.7 |
13.2 |
|
|
External dimensions (width according to machine feet) |
LXWXH |
5250X1750X3785 |
5250X1950X3785 |
5250X2050X3885 |
5430X2250X4000 |
5450X2230X4000 |
5632X2620X4100 |
|
|
Single machine weight |
T |
4.5 |
5 |
6.5 |
7.5 |
8.5 |
9 |
|
