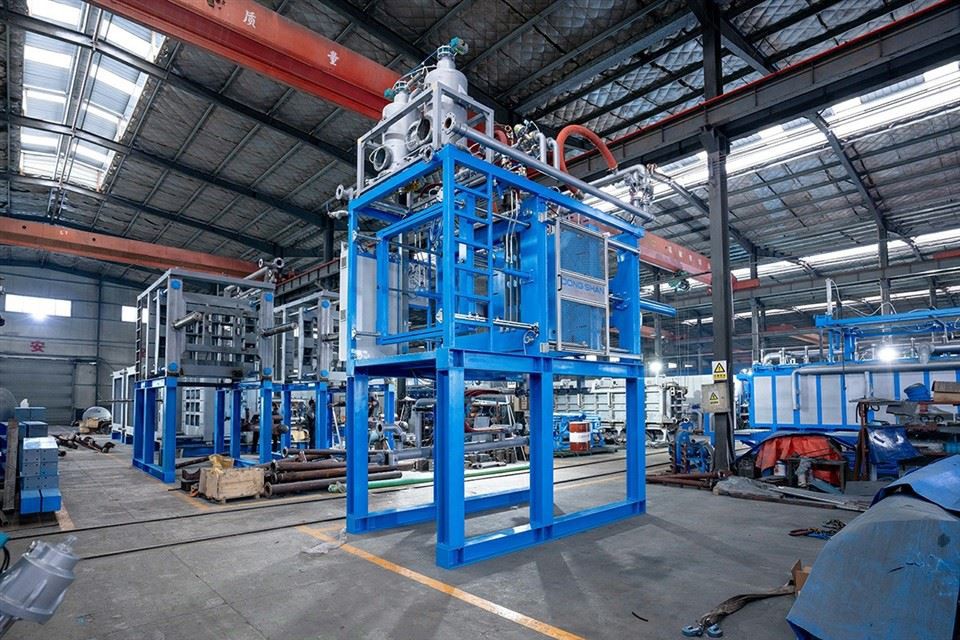

EPS Sandwich Panel Making Machine
Min.Cutting Thickness： 10 mm
Cutting Speed： 0.5-1.5 m/min
Max.Wires In Horizotal：50 piece
Max.Wires In Vertical Cutting： 15 piece
Max Wires In Cross Cutting：15 piece
Hot Wire Specification：0.4-0.8 mm
Connected Load：24.8 Kw
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps sandwich panel making machine in China, also supports customized service with low price. Welcome to wholesale high quality eps sandwich panel making machine for sale here from our factory. Contact us for pricelist.

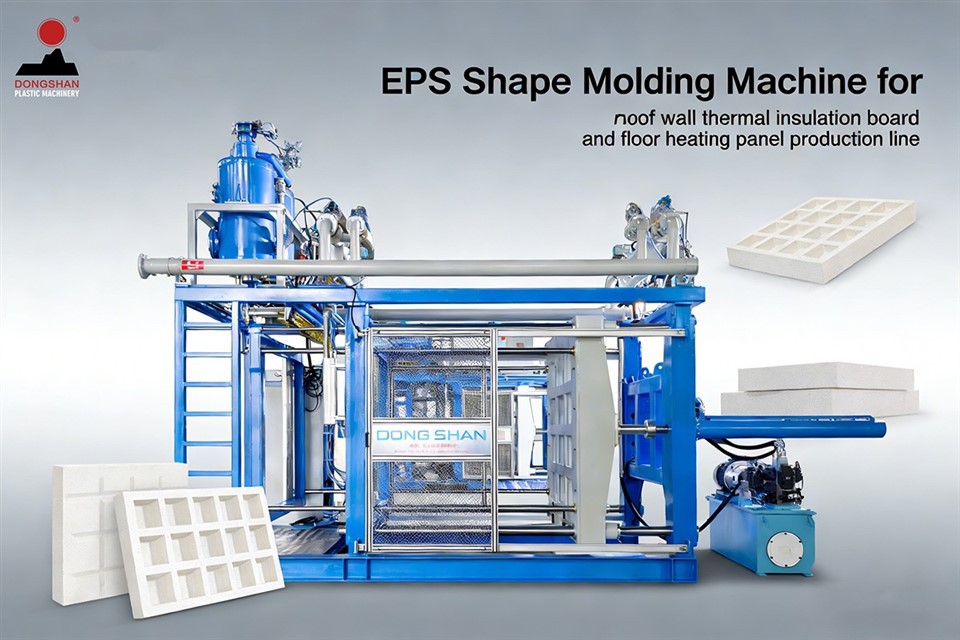

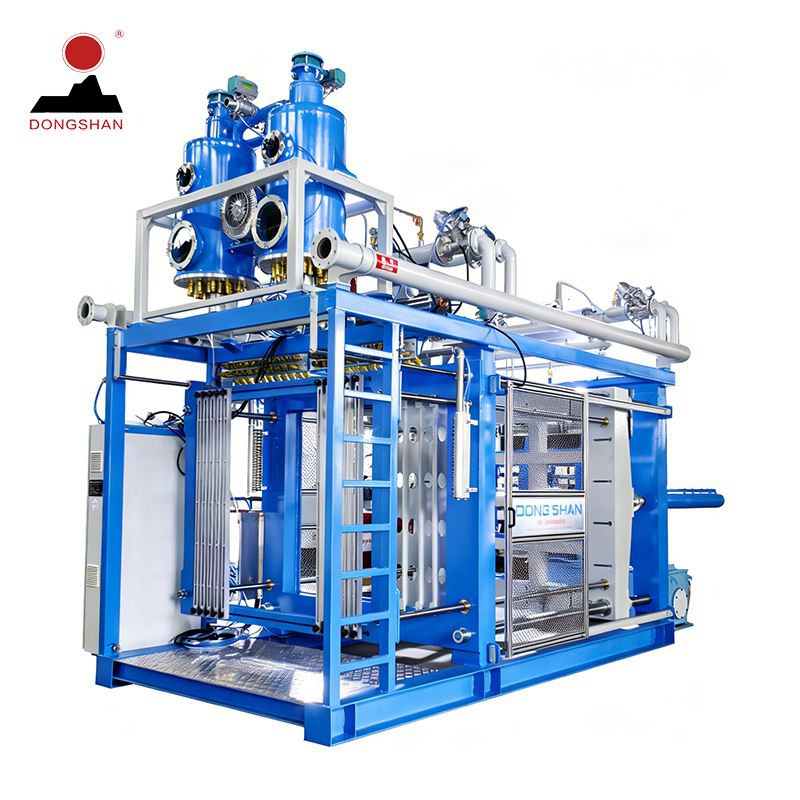

Customized Styrofoam Solutions EPS Foam Floor Heating Plate making Machine for Thermal Insulation Panels production
The Customized Styrofoam Solutions EPS Foam Floor Heating Plate Making Machine is a specialized production system designed for the high-standard thermal insulation market. With High-Density Thermal Excellence, Eco-Efficient Vacuum technology and Intelligent Operating System, it allows manufacturers to produce custom-engineered floor heating plates (underfloor heating boards).
Strategic Advantages & Performance Highlights
Bespoke Precision for Floor Heating Profiles
Specifically designed to mold complex geometries, such as interlocking knobs and integrated pipe-groove patterns. This ensures that heating pipes can be snapped into place securely without additional fasteners, significantly reducing onsite installation time.
Superior Thermal Insulation & Density Consistency
Utilizing a high-pressure molding process, the machine produces plates with exceptionally uniform cell structures. This results in a high R-value (thermal resistance), ensuring that heat is directed upward into the room rather than lost through the subfloor.

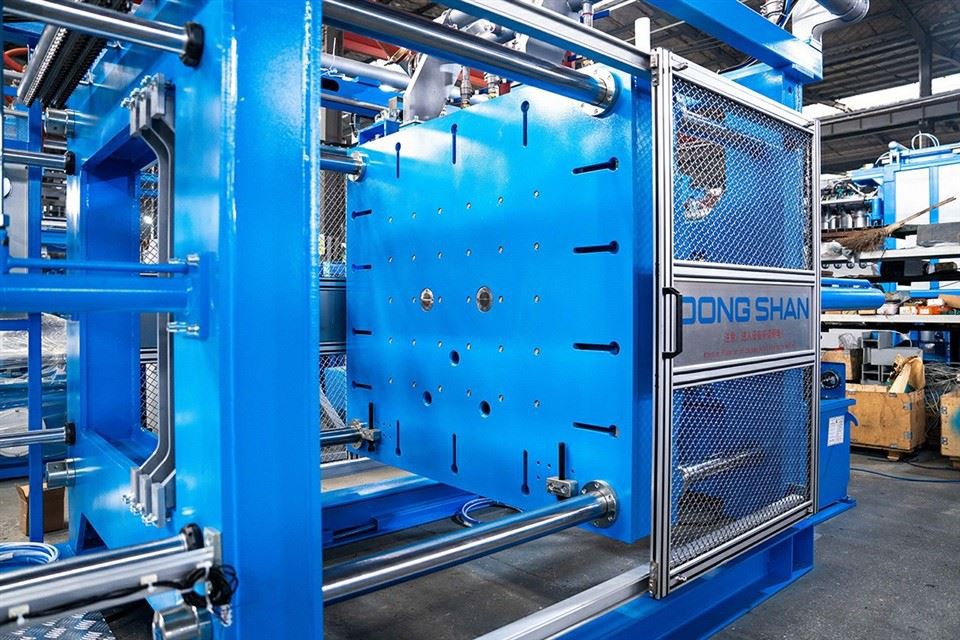

High-Durability Tooling & Rapid Changeover
The machine features a customizable molding system with reinforced, Teflon-coated aluminum platens. This setup prevents material adhesion, ensures a "Class-A" surface finish, and allows for rapid mold swaps to accommodate different pipe diameters or panel thicknesses.
Advanced Steam Management for Energy Savings
Equipped with a Dual-Valve Steam Control System, the machine optimizes heat penetration into the intricate grooves of the floor heating plate. This targeted heating reduces steam waste by 15-20% compared to standard flat-panel machines.
Automated Integrated Production Cycle
The system is powered by a Mitsubishi PLC and high-resolution HMI, managing a fully automated cycle of Filling → Steaming → Vacuum Cooling → Demolding. This minimizes labor costs and guarantees that every plate meets strict dimensional tolerances.
High-Flow Vacuum Stabilization
A high-performance vacuum unit rapidly extracts moisture from the thick-profiled plates. This ensures the panels are dimensionally stable and "curing-ready" immediately after ejection, preventing the warping or shrinking that can occur with inferior equipment.

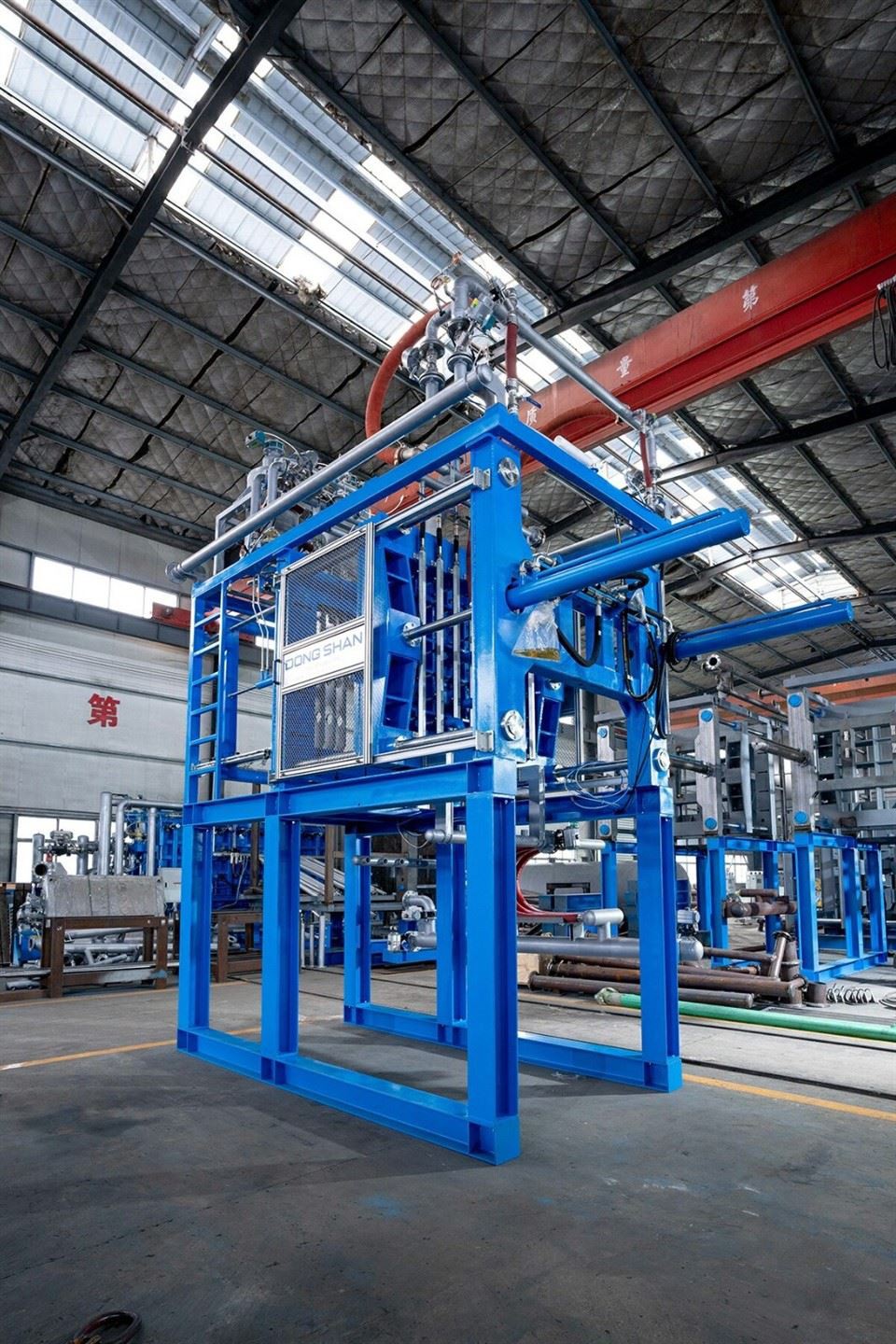

K series
X-A series
- Forward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
X-B series
- Backward demolding
- Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
- 48 pcs of feeding inlets under vertical feeding barrel
- Gemu,Germany steams valves
- 15.6" LED touch screen
Major Products
Technical Specifications
|
Iterm Description |
unit |
EPS1210 |
EPS1412 |
EPS1513 |
EPS1750 |
EPS1816 |
EPS2216 |
|
|
Mold dimensions |
mm |
1200X1000 |
1400X1200 |
1500X1300 |
1750X1450 |
1800X1600 |
2200X1600 |
|
|
Rear window size |
mm |
1100X900 |
1250X1100 |
1400X1200 |
1650X1350 |
1700X1450 |
2050X1450 |
|
|
Effective molding area |
mm |
1000X800 |
1200X1000 |
1300X1100 |
1550X1250 |
1600X1350 |
1950X1350 |
|
|
Maximum product height |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
|
Steam pipeline |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Steam System |
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Working pressure |
Kg/cm2 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
|
|
pipe interface |
DN |
65 |
65 |
65 |
80 |
80 |
80 |
|
system |
Working pressure |
Kg/cm2 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
4～5 |
|
Cooling Water System |
pipe interface |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
Working pressure |
Kg/cm2 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
3～4 |
|
|
Mold interface |
DN |
25X6 |
25X8 |
25X8 |
25X8 |
25X8 |
25X8 |
|
|
Sewage system |
Vacuum interface |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Solidify, relocate and drain water |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
|
Sewage pipe interface |
DN |
100 |
100 |
100 |
100 |
125 |
125 |
|
|
Mold interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Hydraulic system |
Oil pump motor |
Kw |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
|
Oil pump size |
L/min |
23+53 |
25+75 |
25+75 |
25+94 |
25+94 |
31+116 |
|
|
clamping force |
T |
24 |
24 |
24 |
38 |
38 |
42 |
|
|
Open and close mold oil cylinder |
mm |
100X1360/2 |
100X1360/2 |
100X1360/2 |
125X1360/2 |
125X1360/2 |
150X1360/2 |
|
|
Demoulding oil cylinder |
mm |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
70X40X450 |
|
|
Bucket capacity |
cube |
0.15 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
system |
Feeding fan |
Kw |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Outlet |
individual |
32 |
50 |
50 |
50 |
50 |
64 |
|
Single unit power |
Kw |
7 |
7.7 |
7.7 |
9.7 |
9.7 |
13.2 |
|
|
External dimensions (width according to machine feet) |
LXWXH |
5250X1750X3785 |
5250X1950X3785 |
5250X2050X3885 |
5430X2250X4000 |
5450X2230X4000 |
5632X2620X4100 |
|
|
Single machine weight |
T |
4.5 |
5 |
6.5 |
7.5 |
8.5 |
9 |
|
Product Applications
Building Insulation Field
Packaging Industry
Advertising and Decoration Industry
Cold Chain Logistics Field
Other Fields
Why Choose Us
Certifications and Awards
the final view of project
Exhibitions with Global Customers
