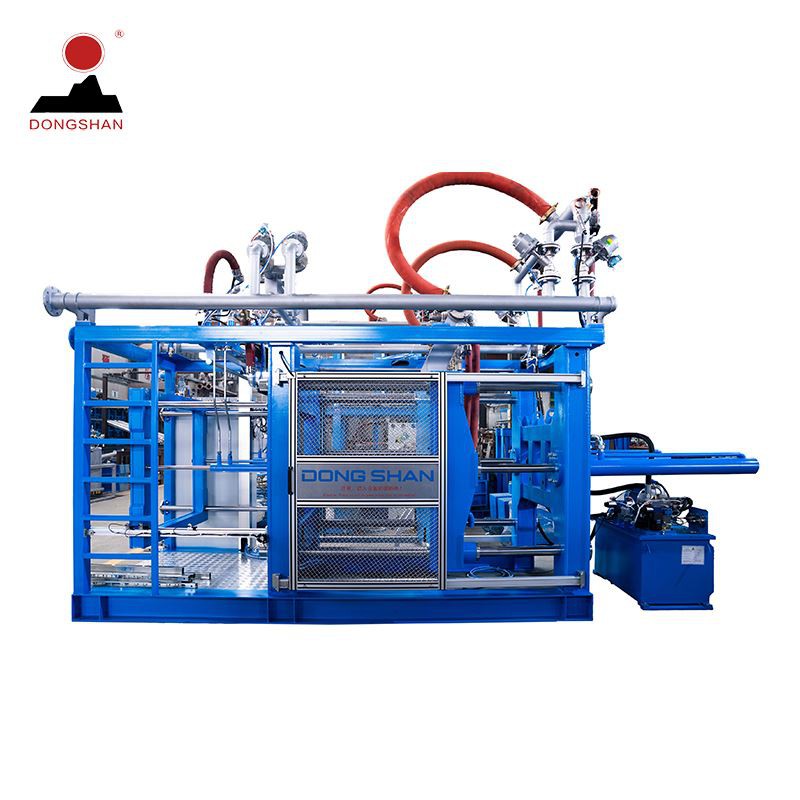

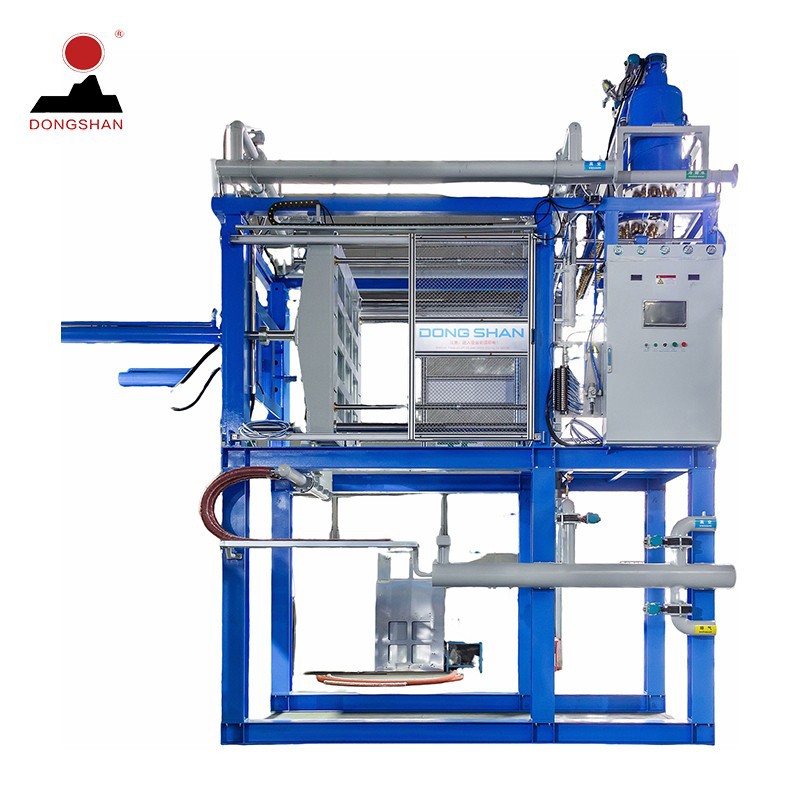

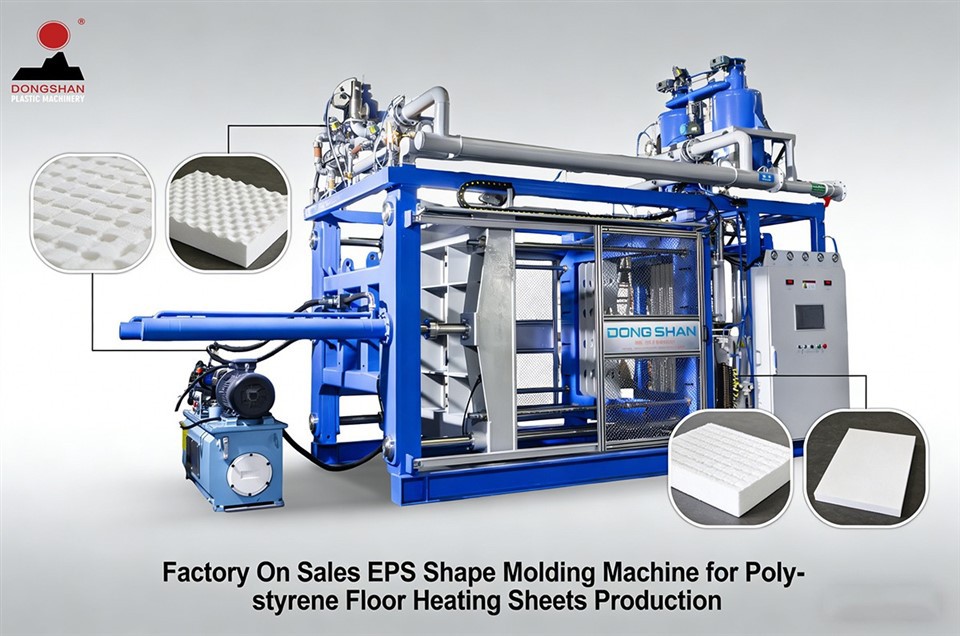

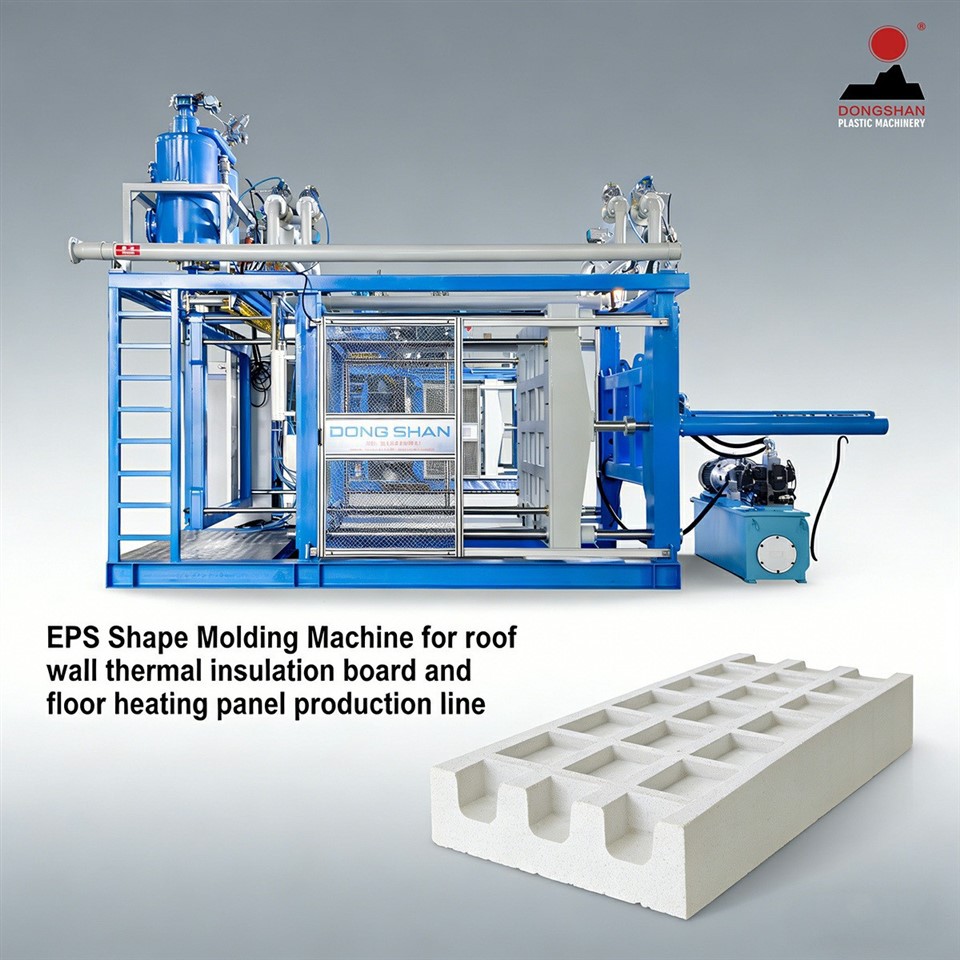

Styrofoam Production Machine

The Energy Saving Foam Shape Molding Machine is a high-performance solution designed for modern EPS factories that prioritize operational cost reduction and superior product quality. By combining an ultra-precise steam system with advanced thermal engineering, this machine ensures a highly efficient production cycle for a wide range of foam products.

Send Inquiry

Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of styrofoam production machine in China, also supports customized service with low price. Welcome to wholesale high quality styrofoam production machine for sale here from our factory. Contact us for pricelist.

Energy Saving foam Shape Molding machine with precise steam system for eps factory

Committed to promoting green and sustainable development in the thermal insulation industry, the Customized Styrofoam Solutions EPS Foam Floor Heating Plate Making Machine combines innovation with environmental protection. Unlike traditional production equipment, it adopts eco-efficient vacuum technology that significantly reduces energy consumption and material waste, achieving a more sustainable production mode. The high-density EPS floor heating plates produced by the machine feature excellent thermal insulation performance, which helps reduce indoor energy consumption for heating, contributing to energy conservation and carbon emission reduction. Its intelligent operating system further optimizes production efficiency, minimizing unnecessary energy loss during the production process. This machine is not only a powerful production tool but also a practice of environmental responsibility, enabling manufacturers to produce high-quality, eco-friendly floor heating products and contribute to a greener future.

K series

X-A series

Forward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

X-B series

Backward demolding
Pipes system are controlled by SMC proportional valve, SMC High frequency valve and Pressure sensor
48 pcs of feeding inlets under vertical feeding barrel
Gemu,Germany steams valves
15.6" LED touch screen

Major Products

Technical Specifications

Iterm Description		unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
Mold dimensions		mm	1200X1000	1400X1200	1500X1300	1750X1450	1800X1600	2200X1600
Rear window size		mm	1100X900	1250X1100	1400X1200	1650X1350	1700X1450	2050X1450
Effective molding area		mm	1000X800	1200X1000	1300X1100	1550X1250	1600X1350	1950X1350
Maximum product height		mm	400	400	400	400	400	400
	Steam pipeline	DN	100	100	100	125	125	125
Steam System	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
	Working pressure	Kg/cm2	3~6	3~6	3~6	3~6	3~6	3~6
	pipe interface	DN	65	65	65	80	80	80
system	Working pressure	Kg/cm2	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water System	pipe interface	DN	80	80	80	100	100	100
	Working pressure	Kg/cm2	3～4	3～4	3～4	3～4	3～4	3～4
	Mold interface	DN	25X6	25X8	25X8	25X8	25X8	25X8
Sewage system	Vacuum interface	DN	100	100	100	125	125	125
	Solidify, relocate and drain water	DN	80	80	80	100	100	100
	Sewage pipe interface	DN	100	100	100	100	125	125
	Mold interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic system	Oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Oil pump size	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	clamping force	T	24	24	24	38	38	42
	Open and close mold oil cylinder	mm	100X1360/2	100X1360/2	100X1360/2	125X1360/2	125X1360/2	150X1360/2
	Demoulding oil cylinder	mm	50X30X450	50X30X450	50X30X450	50X30X450	50X30X450	70X40X450
	Bucket capacity	cube	0.15	0.3	0.3	0.3	0.3	0.3
system	Feeding fan	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Outlet	individual	32	50	50	50	50	64
Single unit power		Kw	7	7.7	7.7	9.7	9.7	13.2
External dimensions (width according to machine feet)		LXWXH	5250X1750X3785	5250X1950X3785	5250X2050X3885	5430X2250X4000	5450X2230X4000	5632X2620X4100
Single machine weight		T	4.5	5	6.5	7.5	8.5	9
